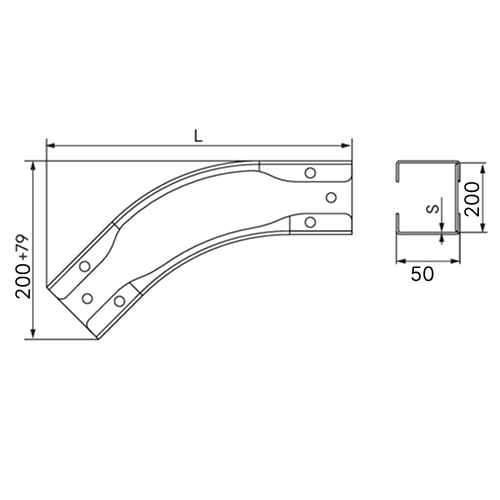

Horizontal angle 45° 50x200 thk.1,5 mm, aluminum, included with fasteners
Code: ASCM520K
Horizontal angle 45° 50x200 thk.1,5 mm, aluminum, included with fasteners
Code: ASCM520K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Anodised |
| Material thickness, mm | 1.5 |
| Deflection (angle) | 45° |
| Material | Aluminium |
| Cable tray width, mm | 200 |
| Cable tray height, mm | 50 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Change of direction | Horizontal |
| Product type | System accessories |
| Type of accessories | 45º Horizontal bend |
| Width | 200 mm |
| Height | 50 mm |
| Material | Aluminium |
