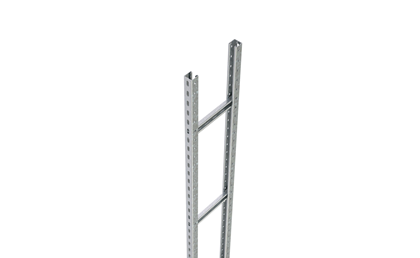

Vertical ladder 200 L3000 mm, hot-dip galvanized

Code: UVC302HDZ
Vertical ladder 200 L3000 mm, hot-dip galvanized
Vertical ladder 200 L3000 mm, hot-dip galvanized
Colour Light grey
Rung distance, mm 600
Type of side wall Profile (open)
Surface protection Hot-dip galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Length, mm 3000
Material Steel
Width cable ladder, mm 200
Height cable ladder, mm 41
Stainless steel, pickled No

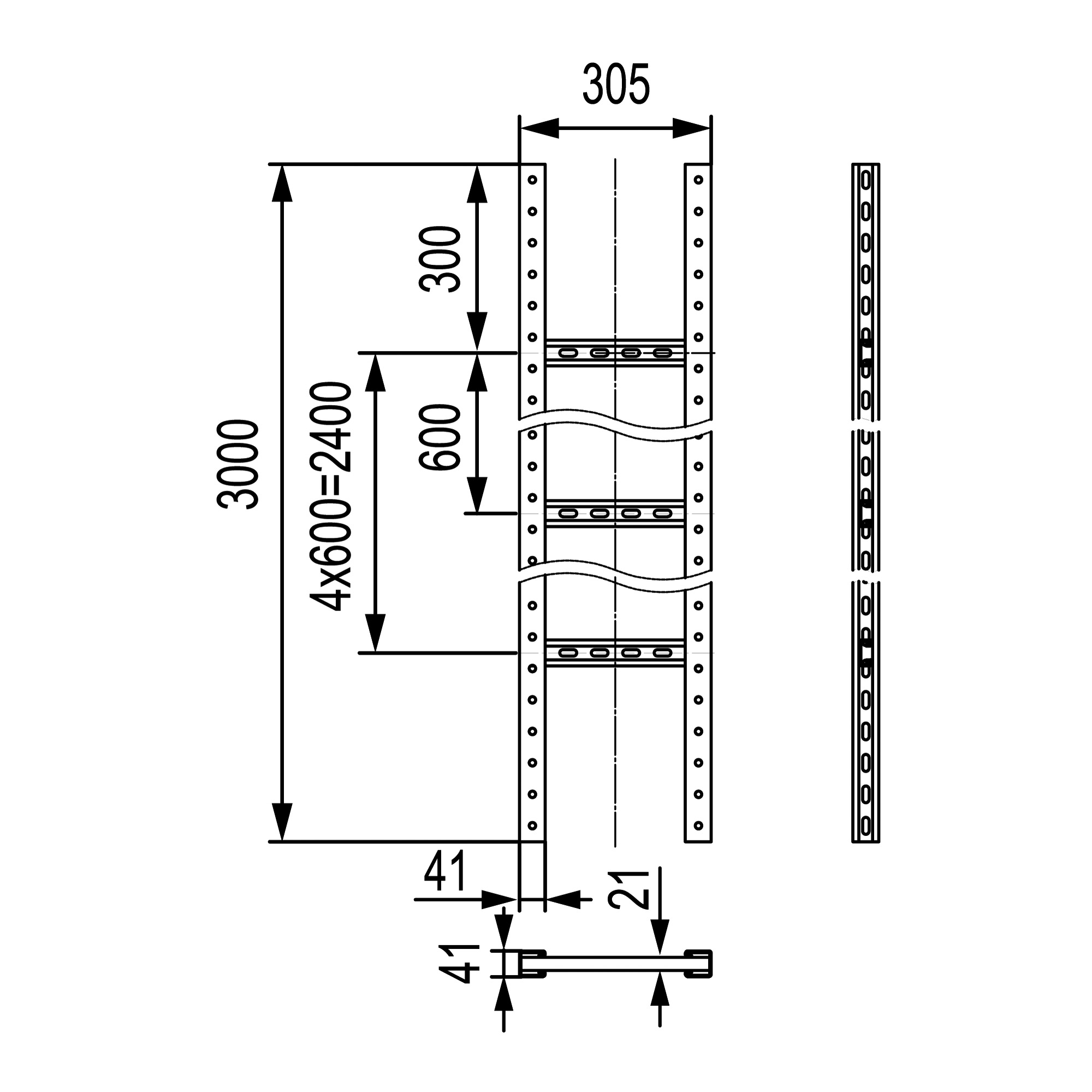

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
70.34 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
11.67 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
RAR
5.28 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for heavy-duty cable ladder system
PDF
583.00 kB
