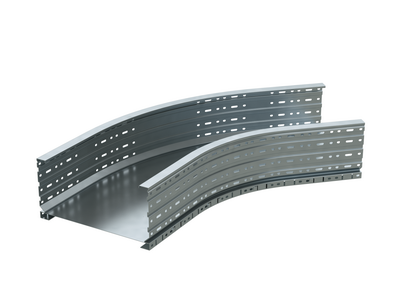

Horizontal sheet bend 45 degrees 100x200, R660

Code: USC612
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Deflection (angle) 45°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom No
Inner radius, mm 660
Cable tray width, mm 200
Cable tray height, mm 100
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model Yes
Suitable for circuit integrity No
Width, mm 200
Length, mm 849
Climate version U2, HL2, UHL2, OM2
Radius of bending, mm 600
Thickness of side walls, mm 1.5

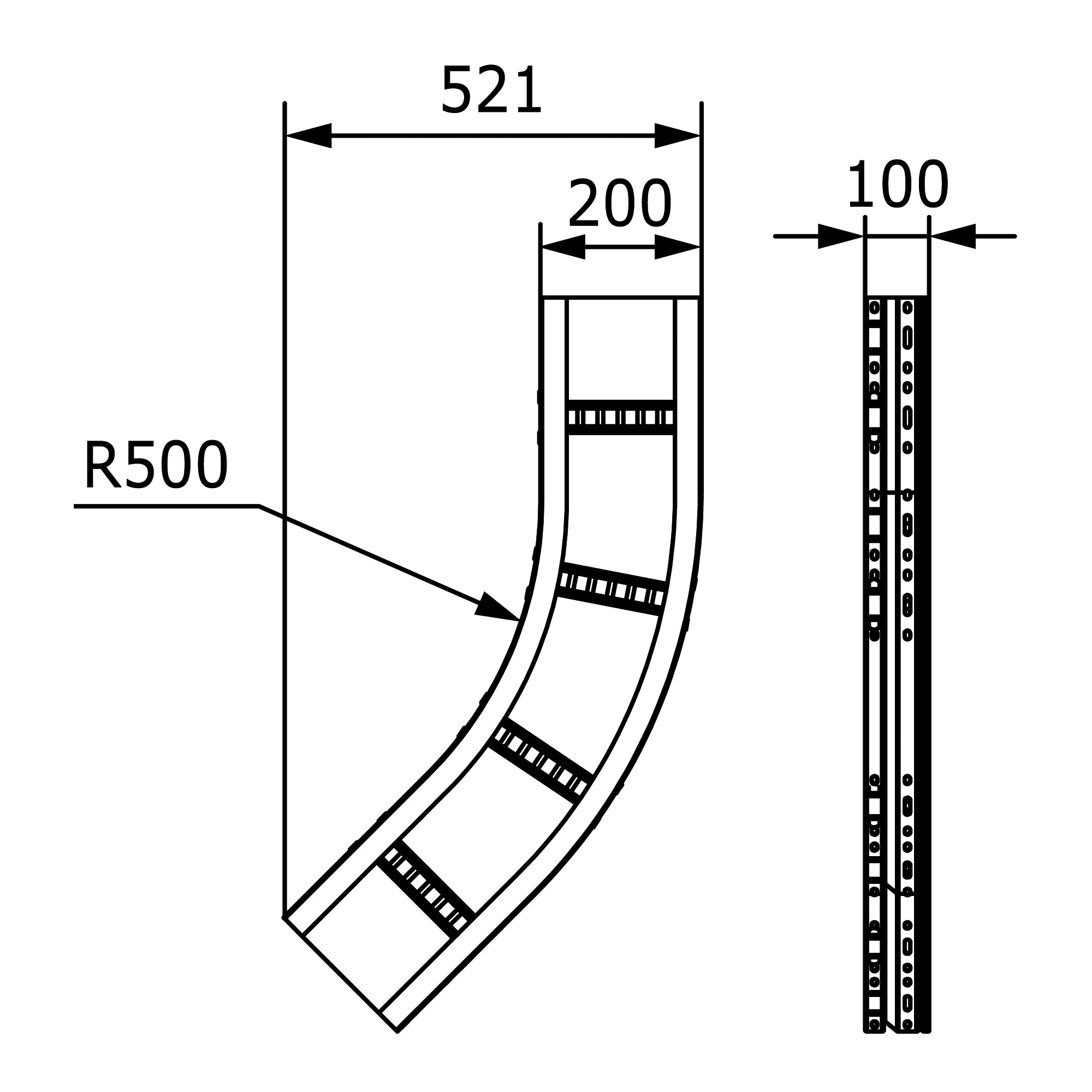

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
