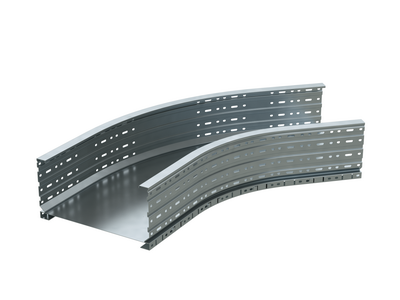

Horizontal ladder bend 45 degrees 100x1000, R660

Code: USC610
Material Pre-galvanized
Height, mm 100
Width, mm 1000
Length, mm 1417
Climate version U2, HL2, UHL2, OM2
Radius of bending, mm 600
Thickness of side walls, mm 1.5
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Deflection (angle) 45°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom No
Inner radius, mm 660
Cable tray width, mm 1000
Cable tray height, mm 100
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model Yes
Suitable for circuit integrity No

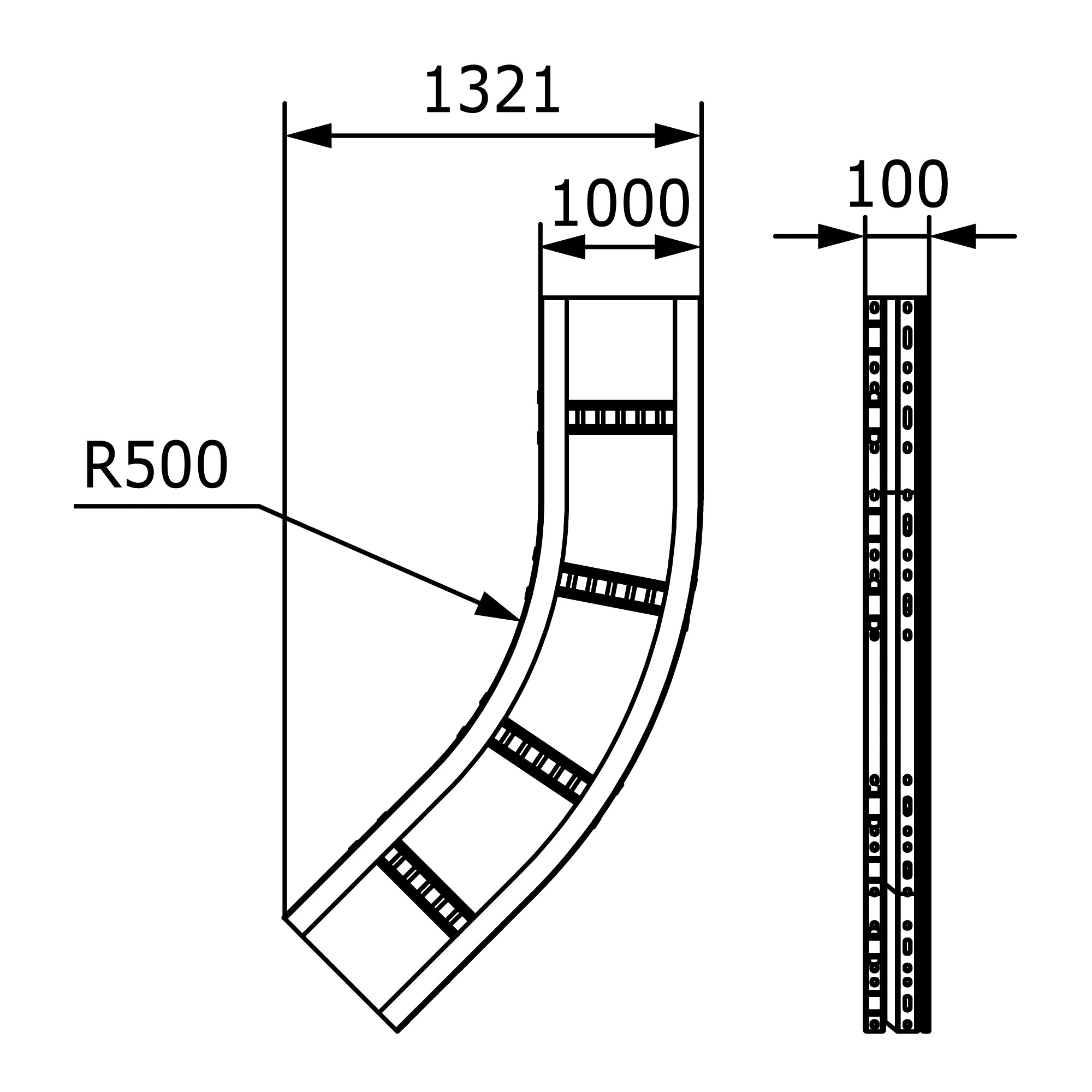

Drawings
