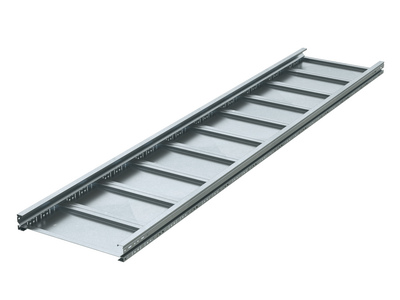

Sheet tray non-perforated 100х1000, side rail thickness 2 mm, L 3 m

Code: UNH310
Material Pre-galvanized
Climate version U2, HL2, UHL2, OM2
Height, mm 100
Width, mm 1000
Length, mm 3000
Average filled area, sq.mm 80000
Thickness of side walls, mm 2
Colour Light grey
Width, mm 1000
Model Without connector
Height, mm 100
Surface protection Sendzimir galvanized
Material thickness, mm 2
Side wall perforation Yes
Material quality Other
Length, mm 3000
Material Steel
Mounting perforation in bottom No
Useful cross section, mm² 80000
NATO-mounting holes No
Stainless steel, pickled No
Wide span model Yes
Accessories
Clamp
Code: LP1000
Universal adapter
Code: UGH200

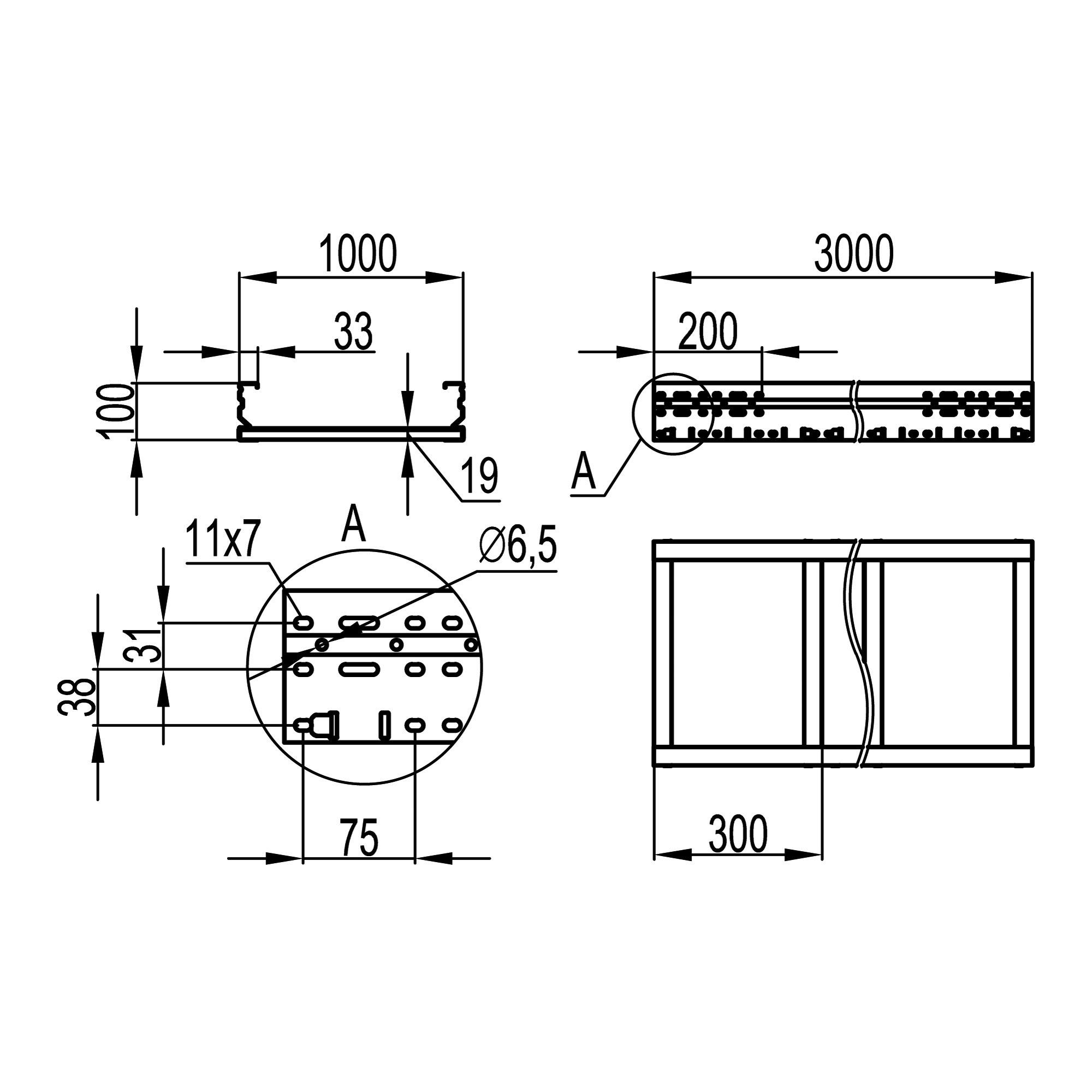

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
