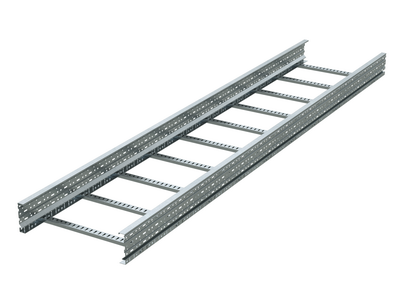

Cable ladder 150х400, side rail thickness 1,5 mm, L 6 m

Code: ULM654
Code: ULM654
  • To ask a question
Colour Light grey
Width, mm 400
Height, mm 150
Surface protection Sendzimir galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 6000
Material Steel
Useful cross section, mm² 52000
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Material thickness, mm 1.5
Product type Metal ladder trays
Type Heavy metal trays - " U5 Combitech"
Height 150 mm
Side rail thickness 1.5 mm
Length 6000 mm
Material Pre-galvanized
Width 400 mm
