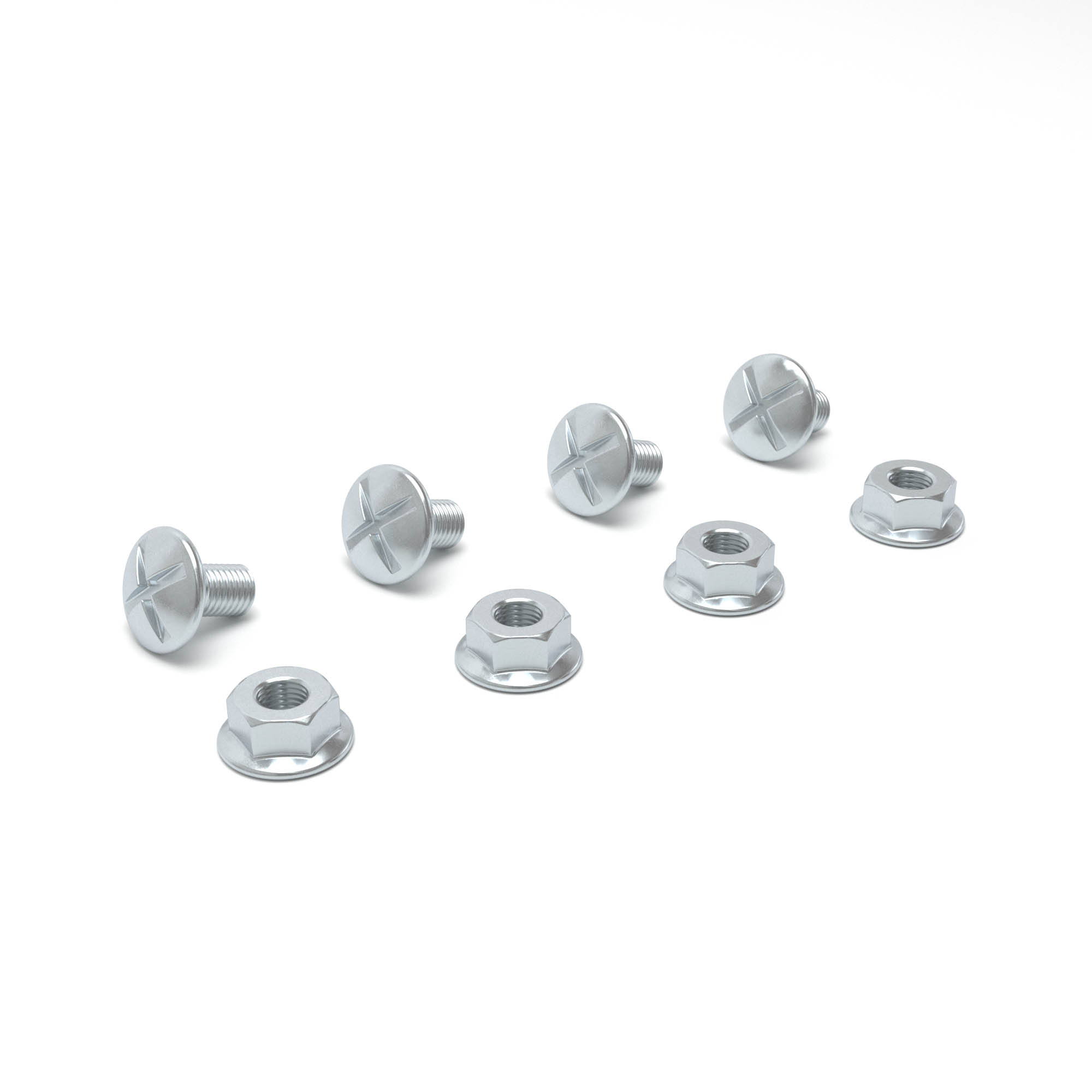

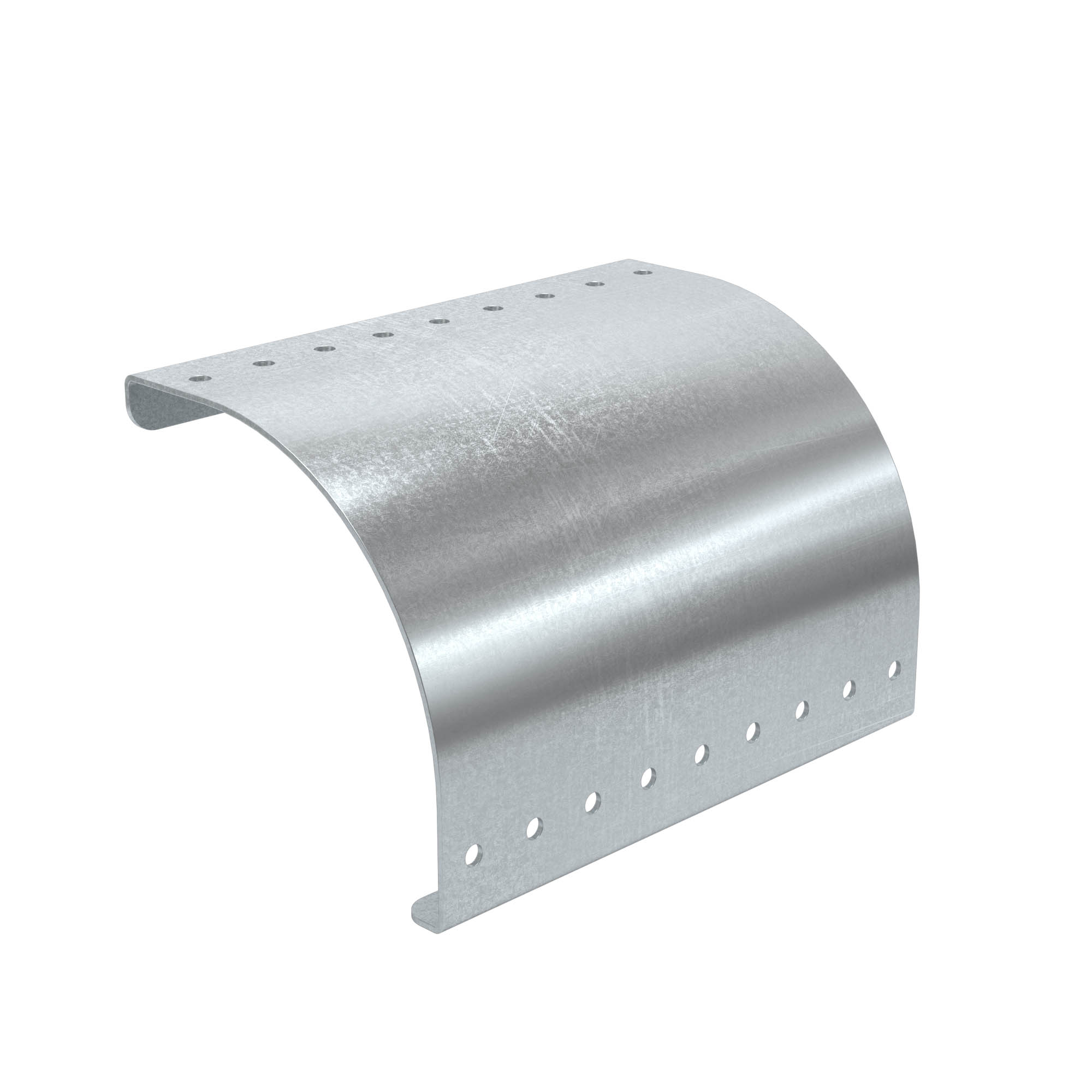

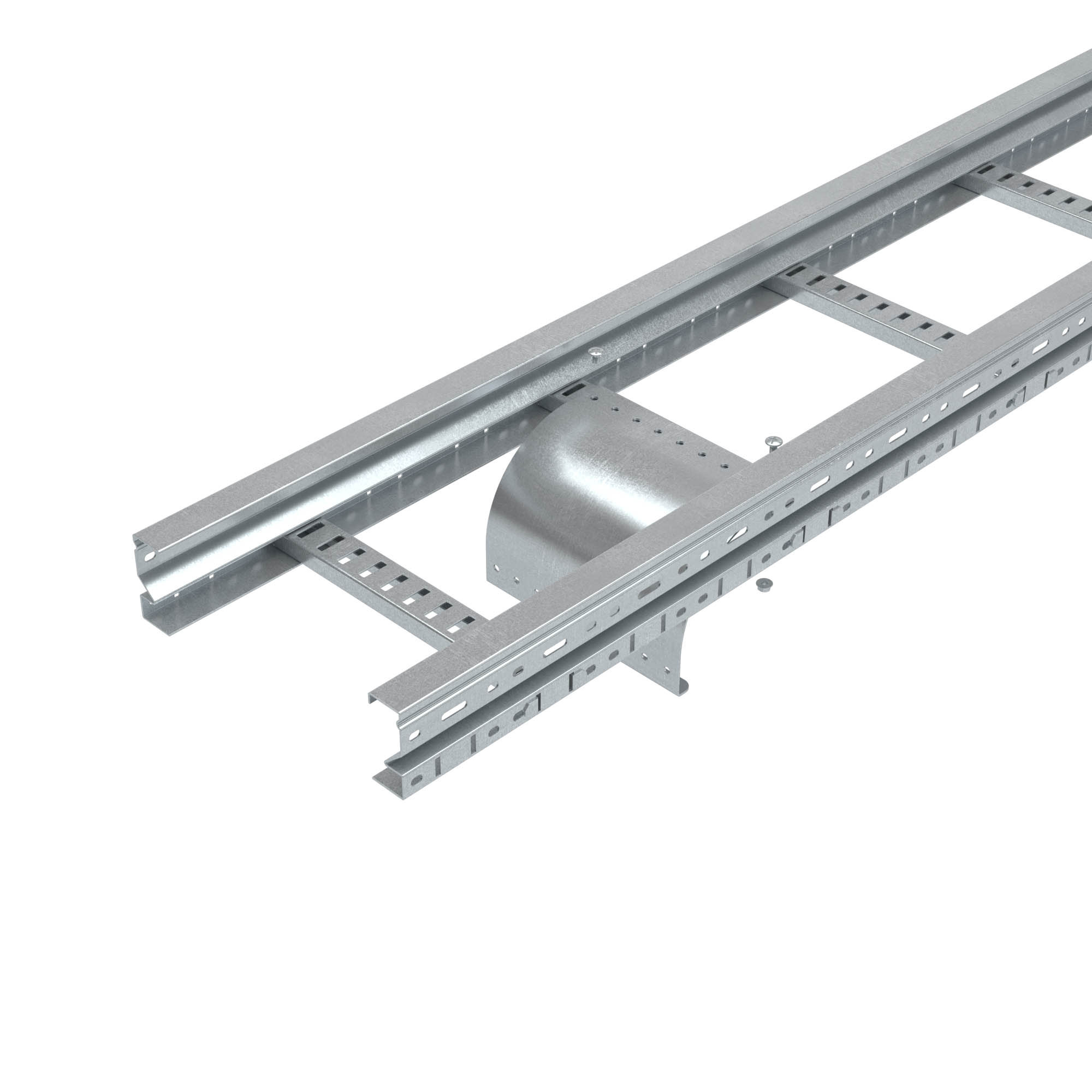

Cable outlet plate for ladders straight element 500 mm, included with fasteners required for installation

Code: UEP50K
Cable outlet plate for ladders straight element 500 mm, included with fasteners required for installation
Cable outlet plate for ladders straight element 500 mm, included with fasteners required for installation
Colour Light grey
Material quality Other
Material Steel
Cable ladder width, mm 500
Product type Mounting accessories
Type of accessories Mounting accessories
Width 500 mm
Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
70.34 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
11.67 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
RAR
5.28 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for heavy-duty cable ladder system
PDF
583.00 kB
