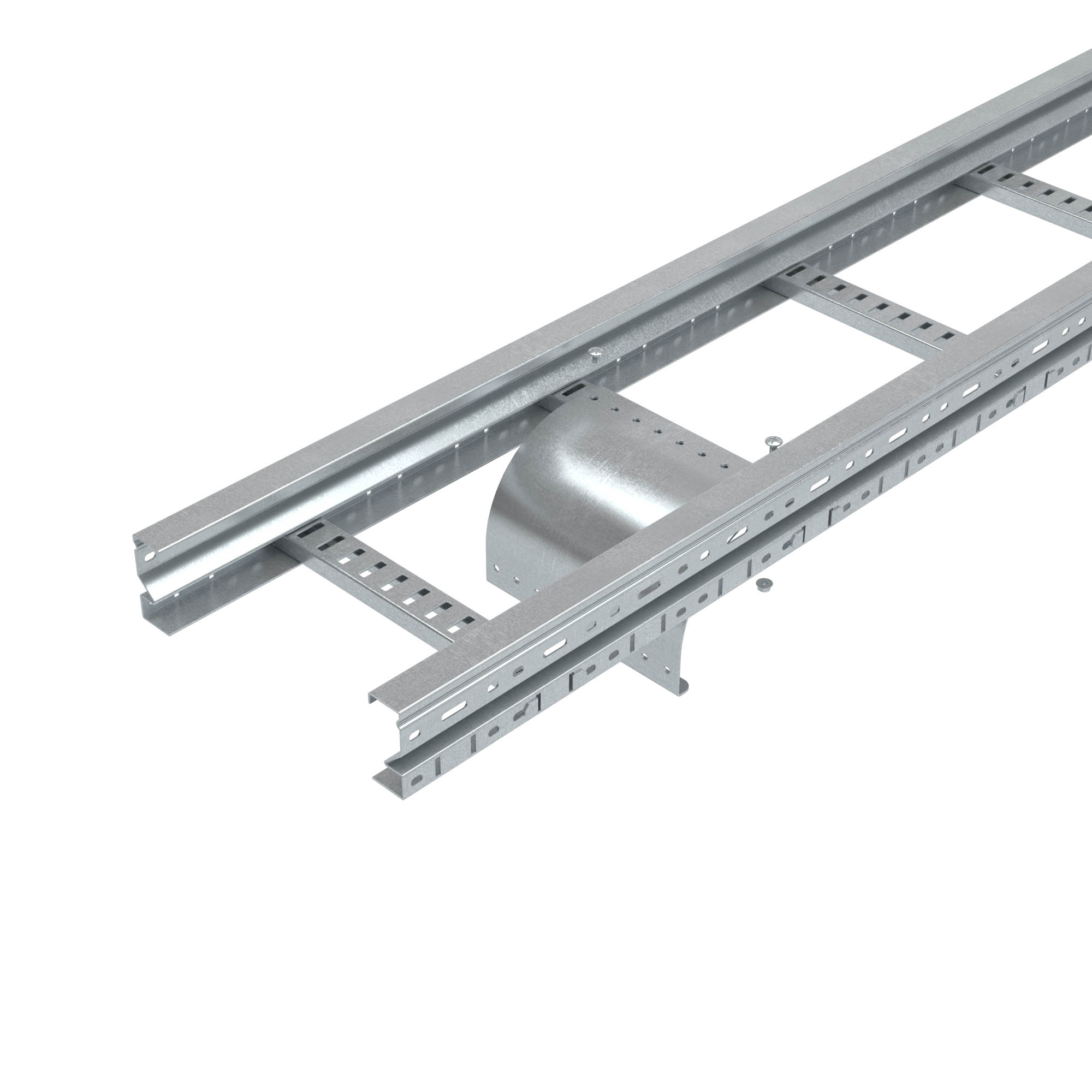

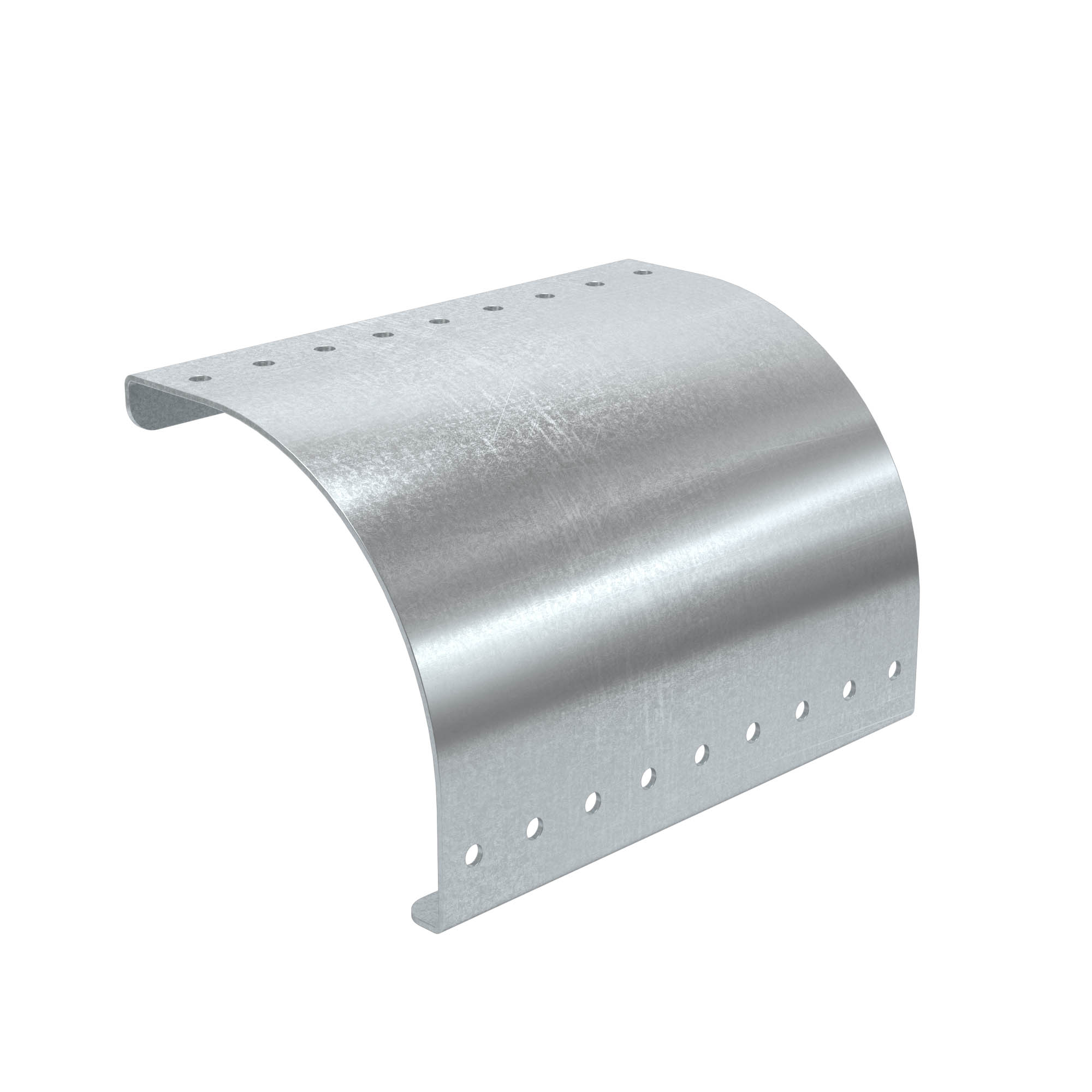

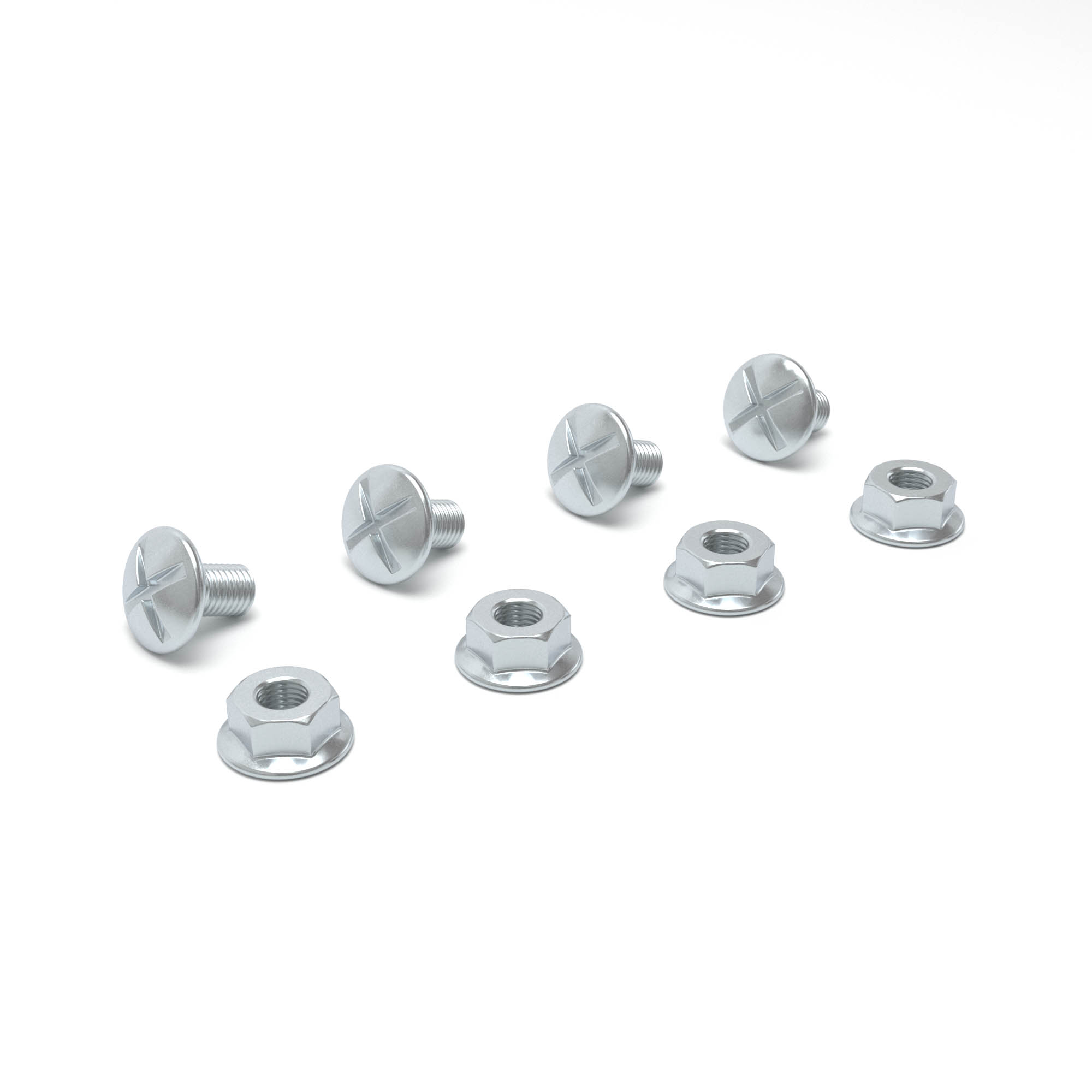

Cable outlet plate for ladders straight element 1000 mm, included with fasteners required for installation

Code: UEP10K
Cable outlet plate for ladders straight element 1000 mm, included with fasteners required for installation
Cable outlet plate for ladders straight element 1000 mm, included with fasteners required for installation
Colour Light grey
Material quality Other
Material Steel
Cable ladder width, mm 1000
Product type Mounting accessories
Type of accessories Mounting accessories
Width 1000 mm

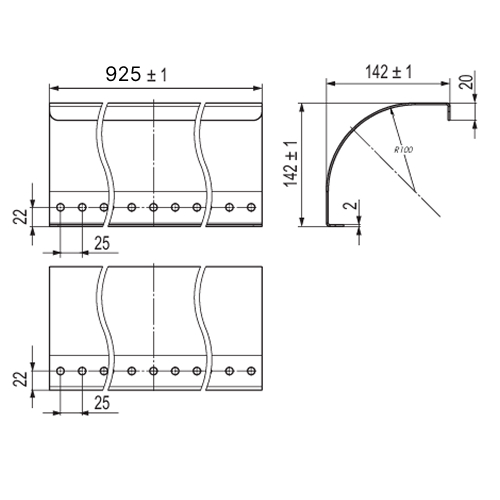

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
70.34 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
11.67 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
RAR
5.28 MB
U5 Combitech - heavy metal trays
The heavy cable trays system "U5 Combitech"
ZIP
19.21 MB
Certificates
Name Document
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for heavy-duty cable ladder system
PDF
583.00 kB
