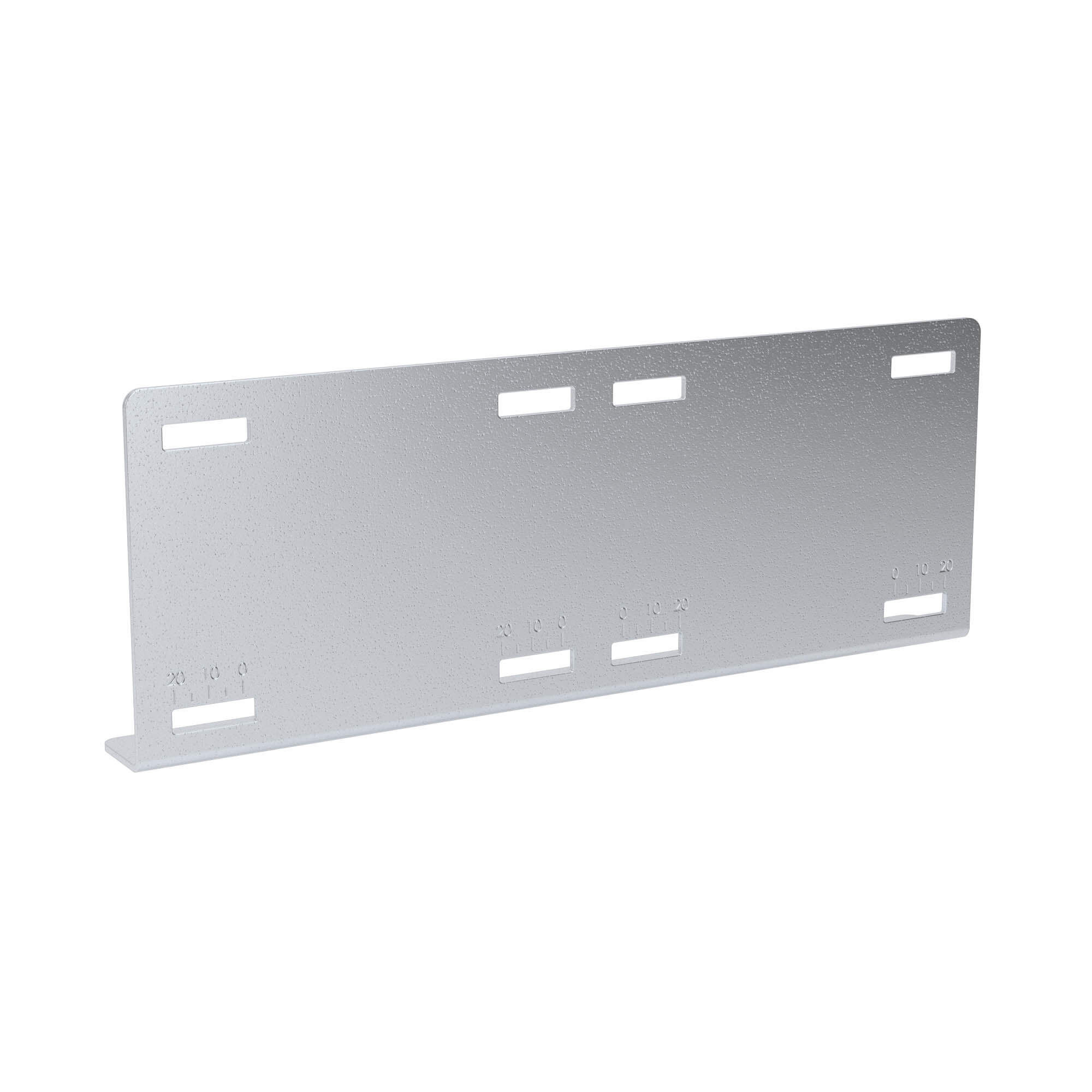

Thermal compensation connector kit for trays U5, H150, zinc-lamel (analog of hot dip galvanized)
Code: UEH150KHDZL
Thermal compensation connector kit for trays U5, H150, zinc-lamel (analog of hot dip galvanized)
Code: UEH150KHDZL
| Material quality | Steel |
| Material | Steel |
| Suitable for cable management system height, mm | 150 |
| Colour | Light grey |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Model | Longitudinal joint |
| Surface protection | Zinc lamellar coating |
| Type of connection | Screw connector |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 150 mm |
| Thickness | 2.0 mm |
| Material | Zinc-lamellated steel |
Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
