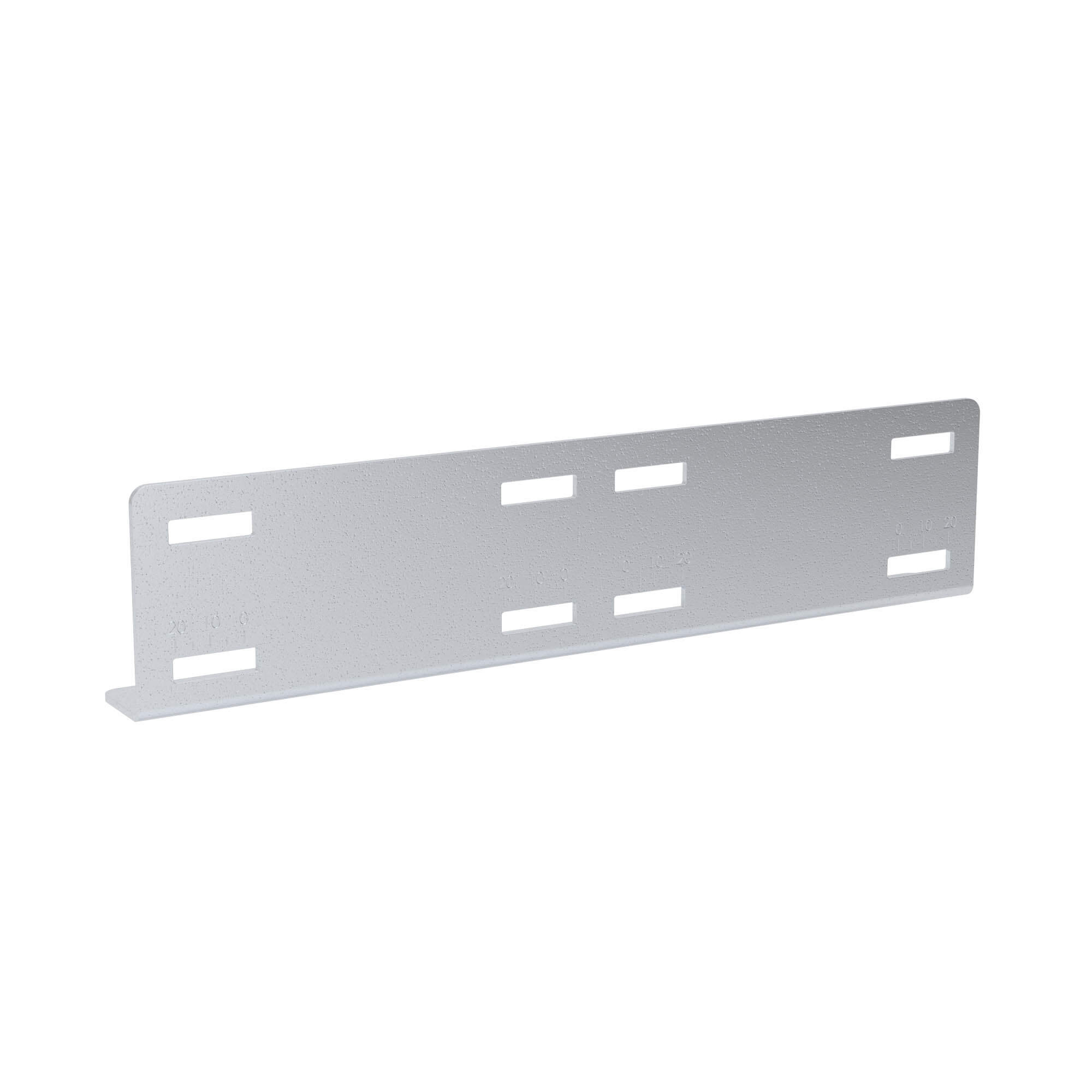

Thermal compensation connector kit for trays U5, H80, zinc-lamel (analog of hot dip galvanized)
| Surface protection | Zinc lamellar coating |
| Material quality | Steel |
| Material | Steel |
| Suitable for cable management system height, mm | 80 |
| Colour | Light grey |
| Model | Longitudinal joint |
| Type of connection | Screw connector |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
