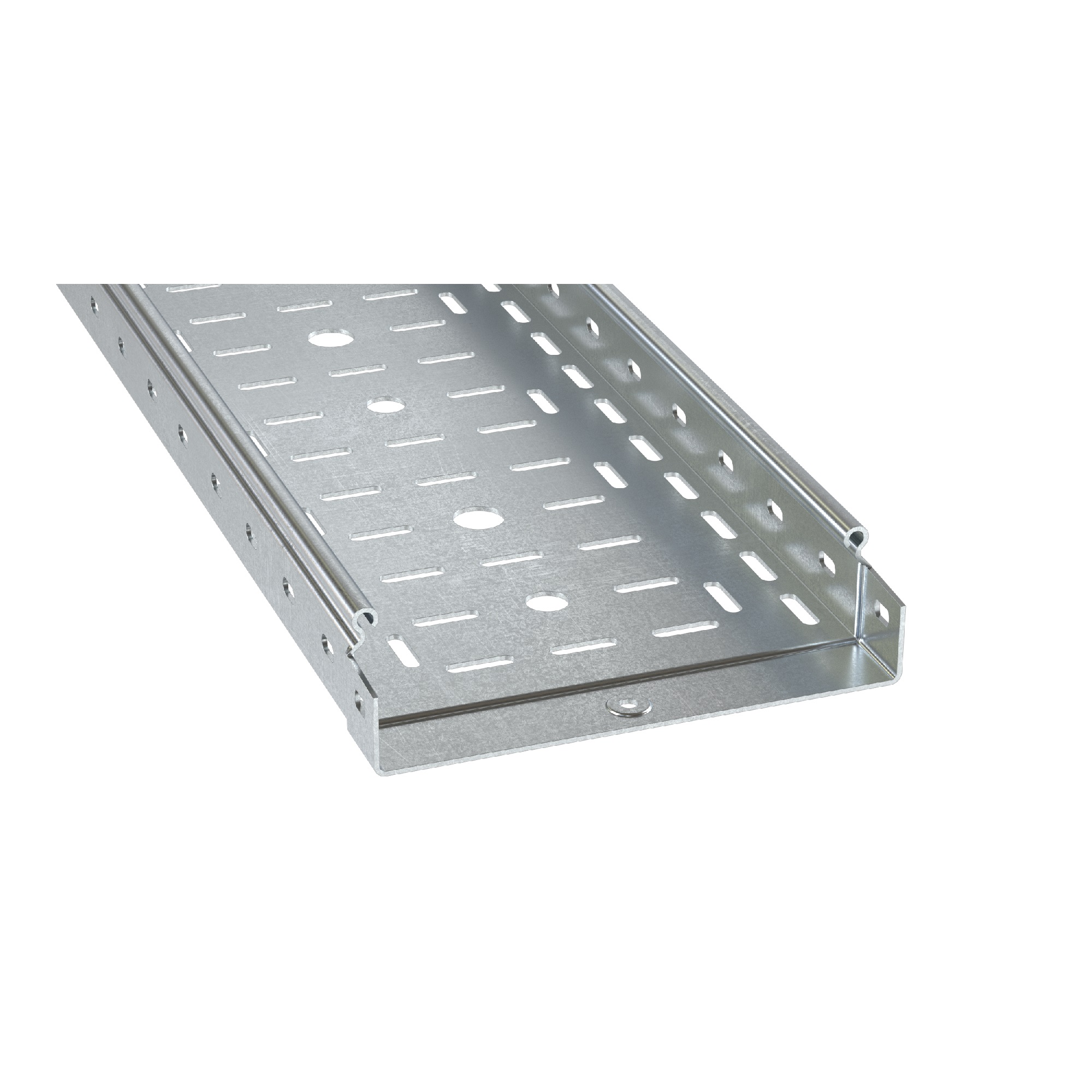

Perforated Straight Element 300х35 L 3000 zinc lamellar coating
Code: SPS33530ZL
Perforated Straight Element 300х35 L 3000 zinc lamellar coating
Code: SPS33530ZL
| Colour | Light grey |
| Width, mm | 300 |
| Model | Without connector |
| Height, mm | 35 |
| Surface protection | Zinc lamellar coating |
| Material thickness, mm | 0.7 |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Useful cross section, mm² | 10450 |
| Suitable for circuit integrity | Yes |
| Wide span model | Yes |
| Product type | Perforated straight elements |
| Type | Metal sheet trays - " S5 Combitech" |
| Height | 35 mm |
| Length | 3000 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 300 mm |
Accessories

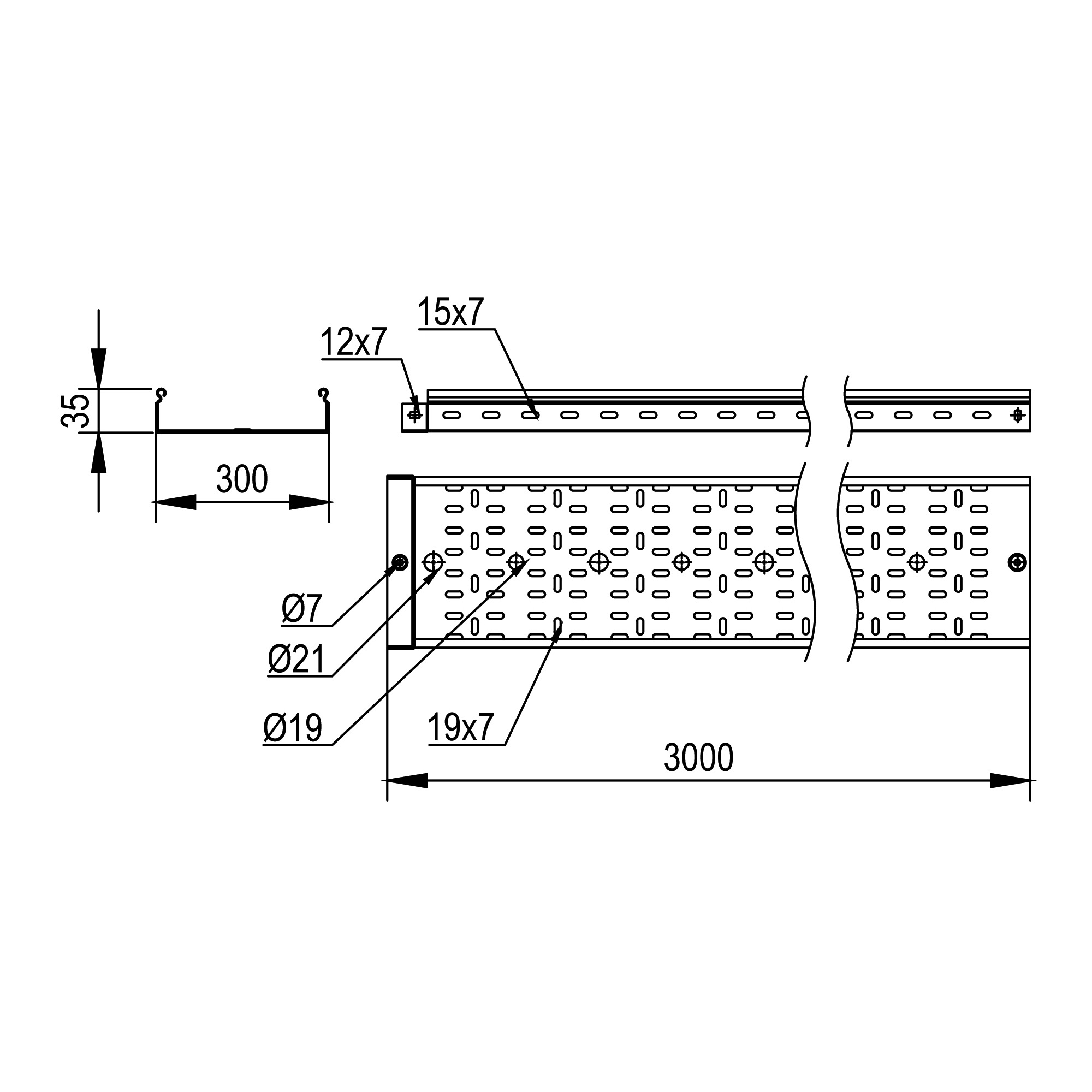

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
