Perforated Straight Element 600х100 L3000 ZL

Code: 35347ZL

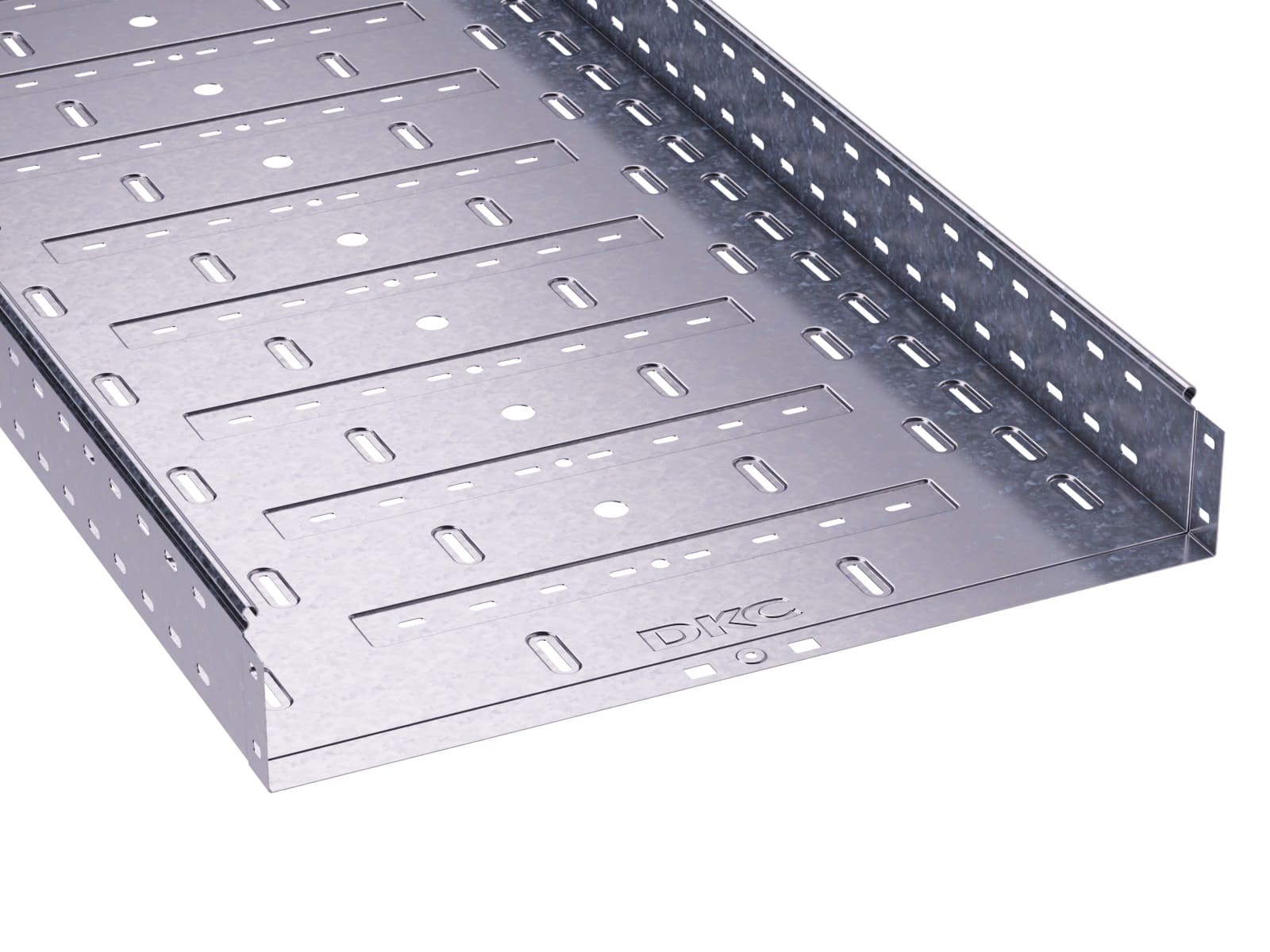

Perforated Straight Element 600х100 L3000 ZL
Perforated Straight Element 600х100 L3000 ZL

Perforated Straight Element 600х100 L3000 ZL

Code: 35347ZL
Colour Light grey
Width, mm 600
Model Without connector
Height, mm 100
Surface protection Zinc lamellar coating
Material thickness, mm 1
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 60000
Suitable for circuit integrity Yes
Product type Perforated straight elements
Type Metal sheet trays - " S5 Combitech"
Height 100 mm
Length 3000 mm
Thickness 1 mm
Material Zinc-lamellated steel
Width 600 mm
Accessories
Analogs

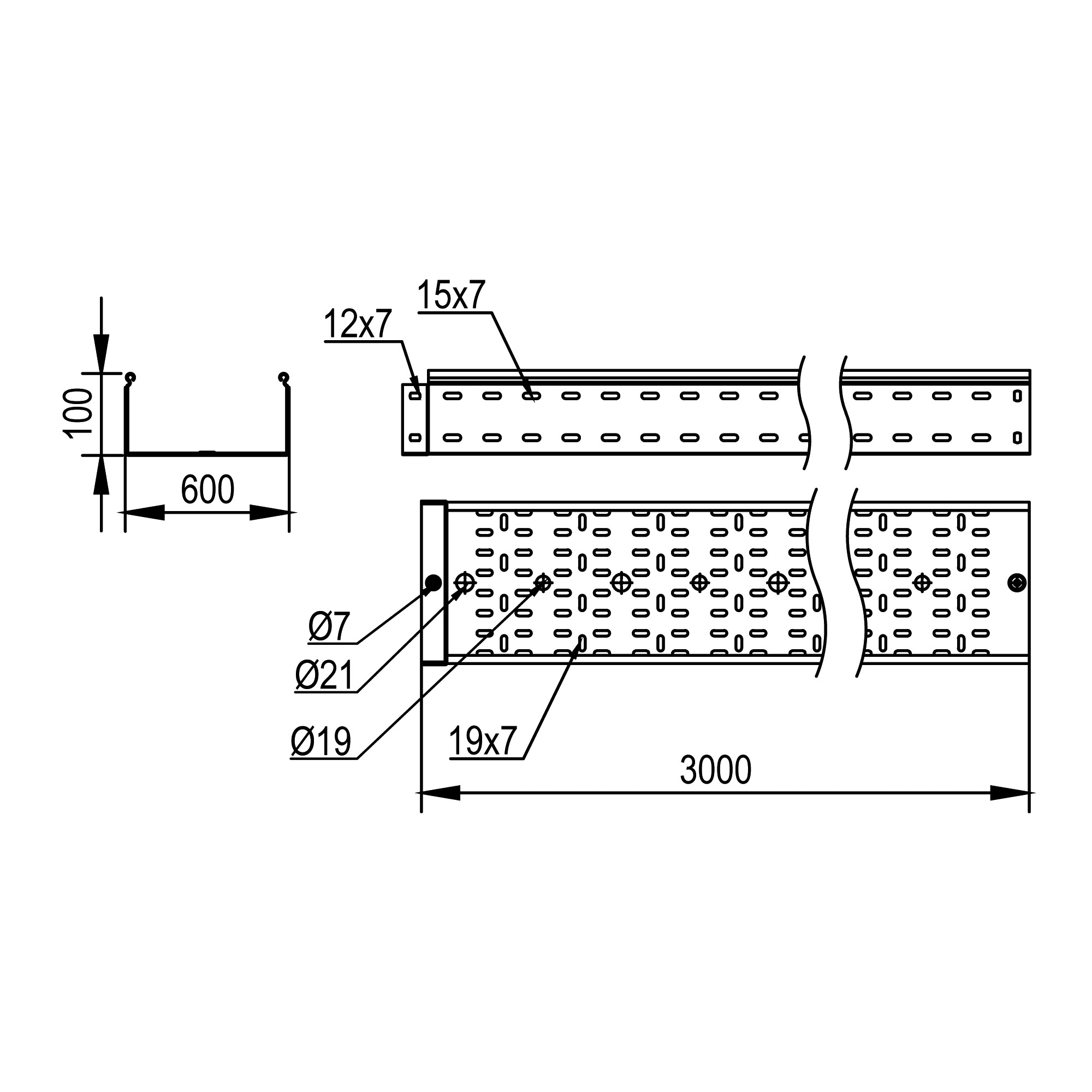

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
726.23 Kb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
16.42 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
11.67 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
5.28 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
11.99 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
17.15 Mb
Certificates
Name Document
Octopus_Express - Exemption letter of fire safety certificates for accessories_1
PDF
3.05 MB
Certificate of conformity to GOST R for metal sheet trays
PDF
435.66 kB
S5 Combitech - Exemption letter for sanitary-epidemiological conclusion for metal sheet trays_1
PDF
1.14 MB
All types of metal trays - Fire safety certificates in the group according to the German standard E90 DIN 4102–12:1998–11_1
PDF
182.19 kB
All types of metal trays - Fire safety certificates for all types of metal trays R90_1
PDF
2.79 MB
Certificate of Conformity on fire resistant for cable line as part of the cable trays and KMZ "S5 Combitech"
PDF
2.71 MB
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OAO "Electrocable" Kolchuginsky Zavod"
PDF
1.96 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OOO "Rybinskkabel' "
PDF
3.20 MB
Certificate of conformity for fire protection cable line with fire resistance limit a 10 minutes
PDF
2.71 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OOO "Rybinskelektrokabel' "
PDF
6.74 MB
Russian Maritime Register of Shipping for sheet cable trays S5 Combitech_1
PDF
659.39 kB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity to seismic impact resistance for system of cable trays "S5 Combitech" and fastening system "M5 Combitech"
PDF
907.27 kB
Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC, Electrocable Kolchuginsky Zavod and Zavod Energokabel
PDF
4.85 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"
PDF
4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014
PDF
4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1
PDF
8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2
PDF
12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018
PDF
18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017
PDF
11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015
PDF
11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017
PDF
11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC, "Energokabel", "Electrocable. Kolchuginsky Zavod on the TRM 0015-2017
PDF
4.86 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015
PDF
5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"
PDF
13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"
PDF
5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions
PDF
2.97 MB
Certificate of conformity to fire safety to GOST R 53316-2009 for the Fire resistant cable support construction of DKC, OOO Kabel’niy zavod "ALUR", OOO "REK"
PDF
4.50 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"
PDF
3.06 MB
Fire safety certificate for fireproof cable penetrations (IET 150 GOST R 53310-2009)
PDF
715.70 kB
Show all
