| Colour | Grey |
| Width, mm | 500 |
| Model | Integrated connector |
| Height, mm | 100 |
| Surface protection | Continuously galvanized zinc-aluminium |
| Material thickness, mm | 1 |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 2000 |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Useful cross section, mm² | 49500 |
| Suitable for circuit integrity | Yes |

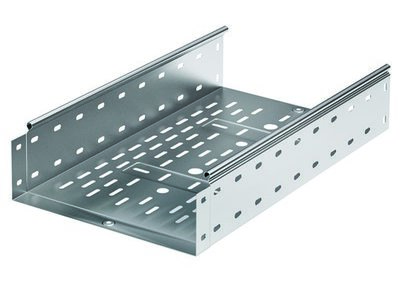

| Product type | Perforated straight elements |
| Type | Metal sheet trays - " S5 Combitech" |
| Height | 100 mm |
| Length | 2000 mm |
| Thickness | 1.0 mm |
| Material | Zinc-lamellated steel |
| Width | 500 mm |
