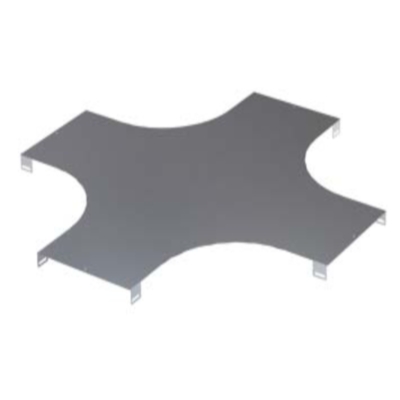

Cover for horizontal cross, base 300, R300 ZL

Code: LK3003ZL
Cover for horizontal cross, base 300, R300 ZL
Cover for horizontal cross, base 300, R300 ZL

Cover for horizontal cross, base 300, R300 ZL

Code: LK3003ZL
Colour Light grey
Width, mm 300
Surface protection Zinc lamellar coating
Material quality Steel
Material Steel
Type of fastening Cover clamp
Suitable for cable ladder Yes
Suitable for cable tray Yes
Stainless steel, pickled Yes
Product type Covers for system accessories
Type of accessories Cover for horizontal cross
Thickness 1.0 mm
Material Zinc-lamellated steel
Width 300 mm
19 мм 300 mm

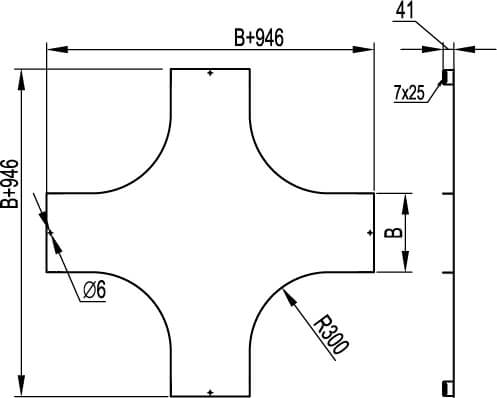

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
726.23 Kb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
5.28 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
16.42 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
17.38 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
27.26 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
11.67 Mb
