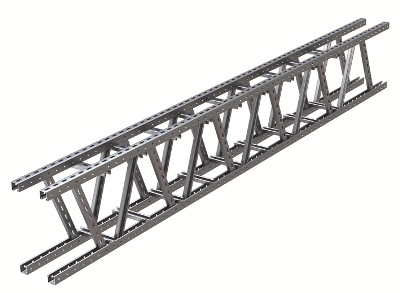

Lateral support structure (trestle supports) 2450 mm, hot dip galvanized
Code: BTL2025HDZ
Lateral support structure (trestle supports) 2450 mm, hot dip galvanized
Code: BTL2025HDZ
Removed from the product range
| Colour | Light grey |
| Type of side wall | Profile (open) |
| Surface protection | Hot-dip galvanized |
| Height side wall, mm | 41 |
| Material quality | Other |
| Length, mm | 2450 |
| Material | Steel |
| Stainless steel, pickled | No |
| Height, mm | 41 |
| Width, mm | 428 |
| Length, mm | 2450 |
| Type | Fittings |
| Material | Hot-dip galvanized |
Accessories
Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
