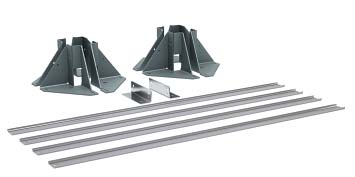

Forced kit for CQE 1800х600х400

Code: R5SK1864

To ask a question

ETIM
?
Characteristics

Colour	Black
Width, mm	600
Model	Mounting kit

Height, mm	1800
Depth, mm	400
Material	Metal

Enclosure type	Floor
Enclosure specification	Earthquake-proof

Product type

Reinforcing kit

Drawings

Seria	Name	DWG (dynamic.)	Eplan
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)	RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE		RAR 169.72 Mb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)	RAR 1.17 Mb
