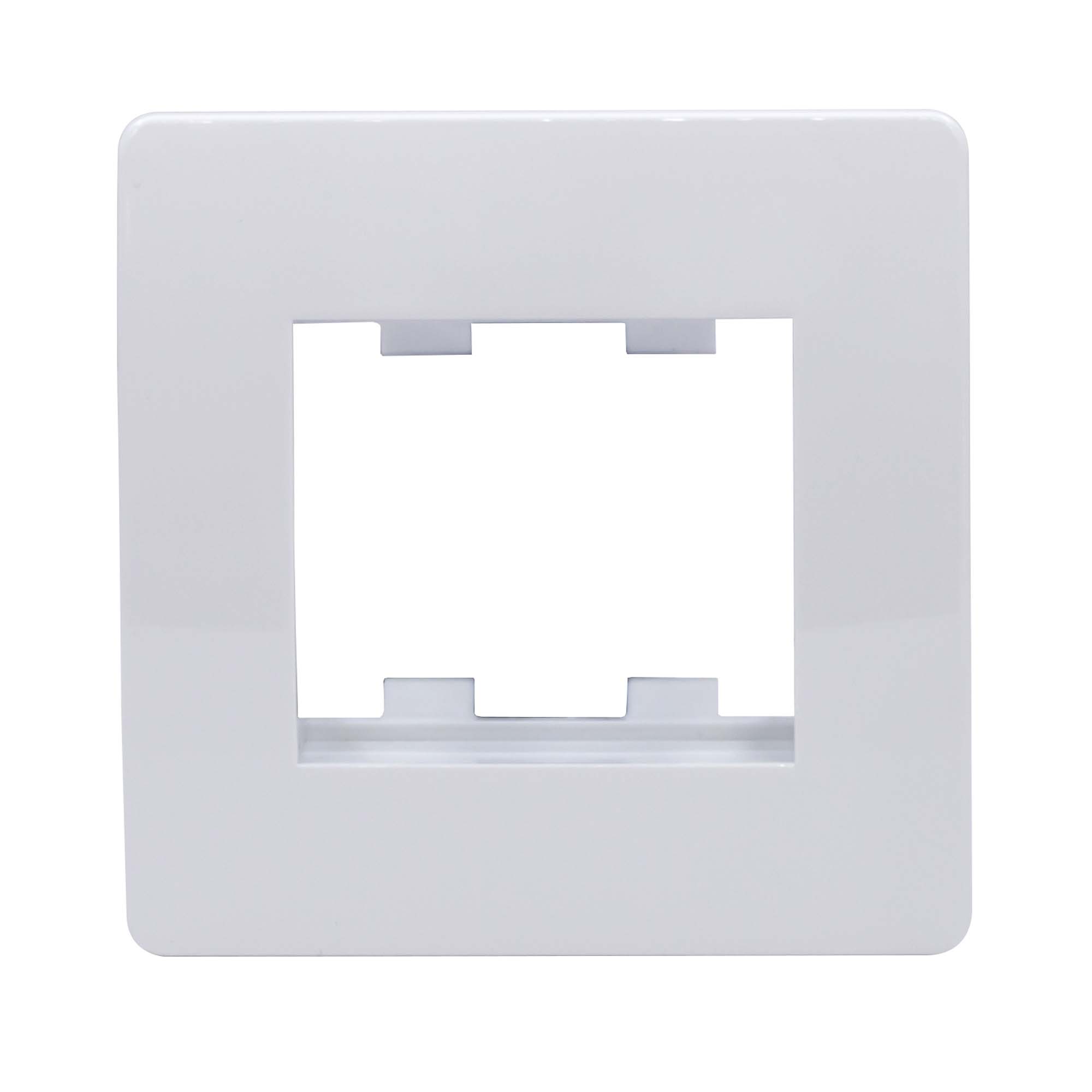

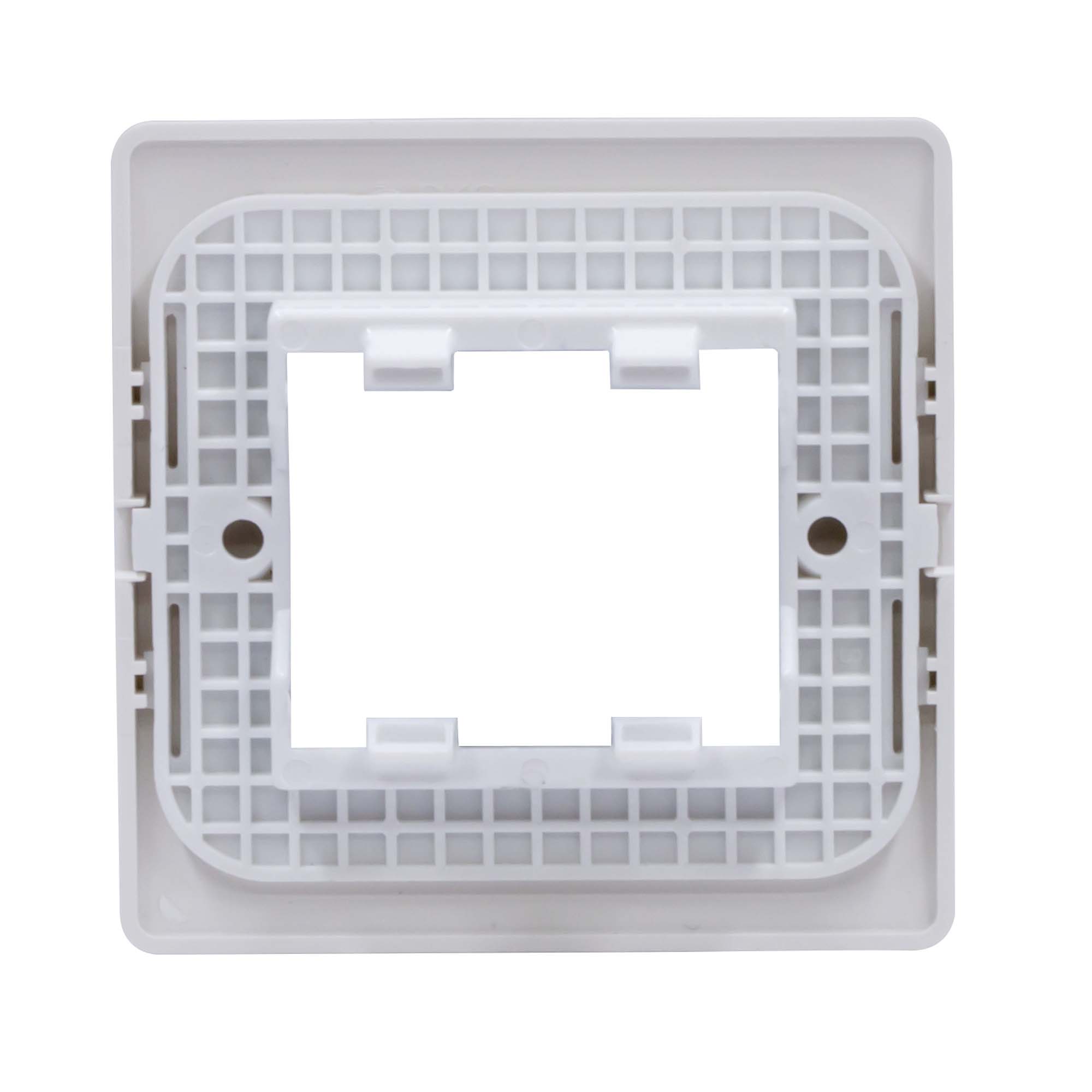

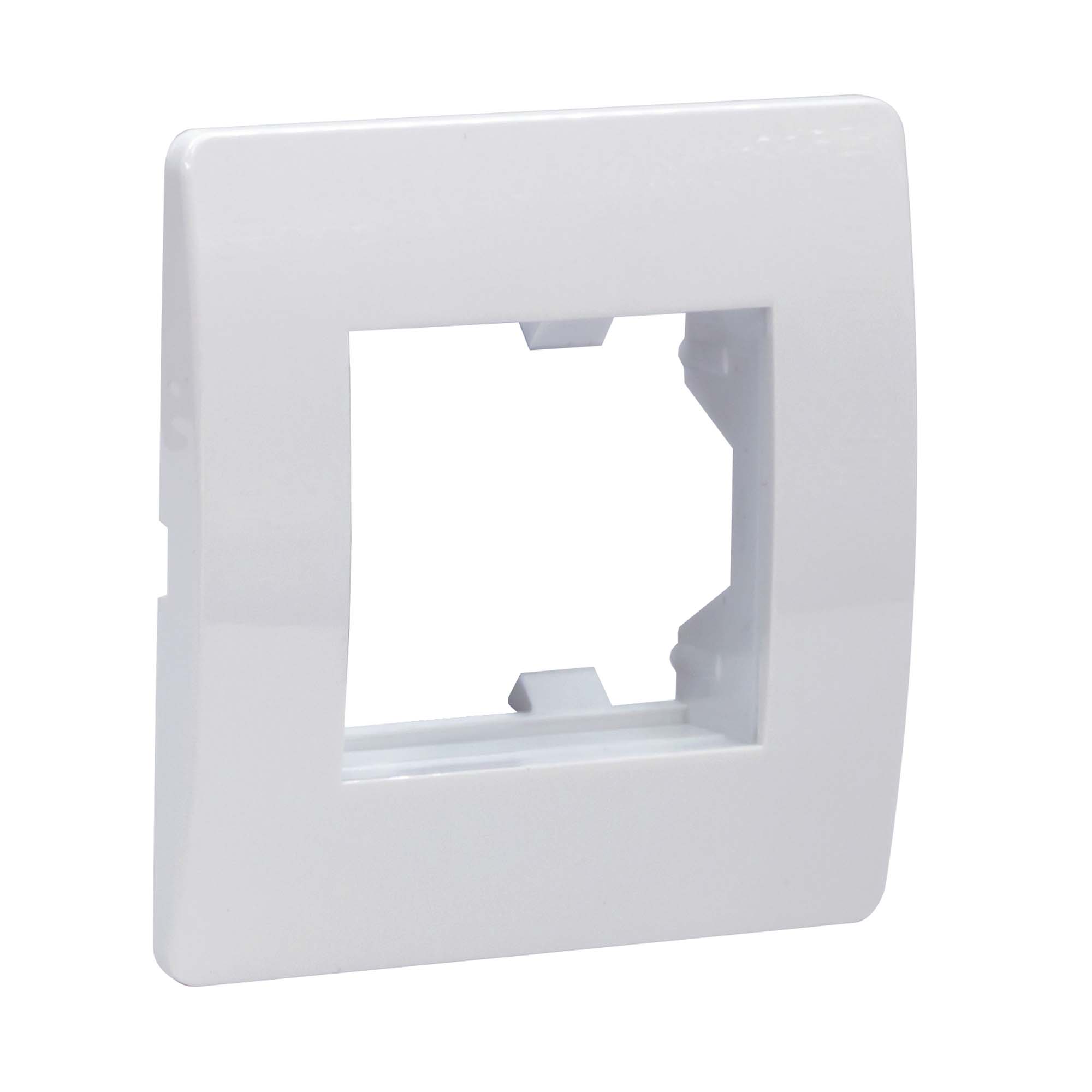

Support complete with frame, 2 mod. VIVA (for box 10123)

Code: 10242
Support complete with frame, 2 mod. VIVA (for box 10123)
Support complete with frame, 2 mod. VIVA (for box 10123)
Colour White

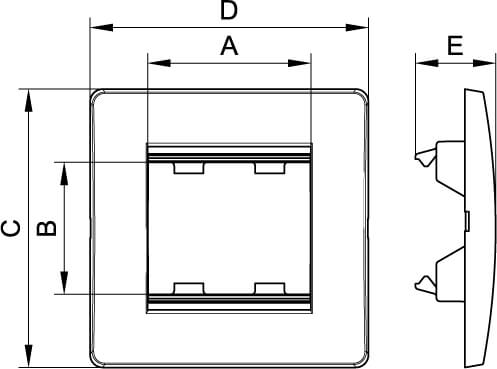

Width, mm 86
Halogen free Yes
Height, mm 86
Depth, mm 24
Number of units 1
With hinged lid No
Surface protection Decor
Built-in height, mm 50
Built-in width, mm 50
Label space/information surface No
Material quality Other
Material Plastic
Type of fastening Clamp mounting
Mounting direction Horizontal and vertical
Degree of protection (IP) IP20
Suitable for floor box No
Transparent No
Type of surface Brilliant
Suitable for wall duct No
Suitable for flush-mounted installation Yes
Flat surface model No
Suitable for built-in installation Yes
Number of units horizontal 1
Number of units vertical 1
Number of modules 2
Decoration Декор по эскизу
Without bridge Yes
Color White
Raw material ABC-plastic
Width, mm 86
Length, mm 86
Temperature of mounting, °C ­5°С ... +60°С
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Height (nominal), mm 10
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Type Frame assembly with plate
Certificates
Name Document
Exemption letter for fire safety certificates for accessories ducts "In-Liner Classic", "In-Liner Front", "Viva", "Brava"
PDF
921.83 kB
