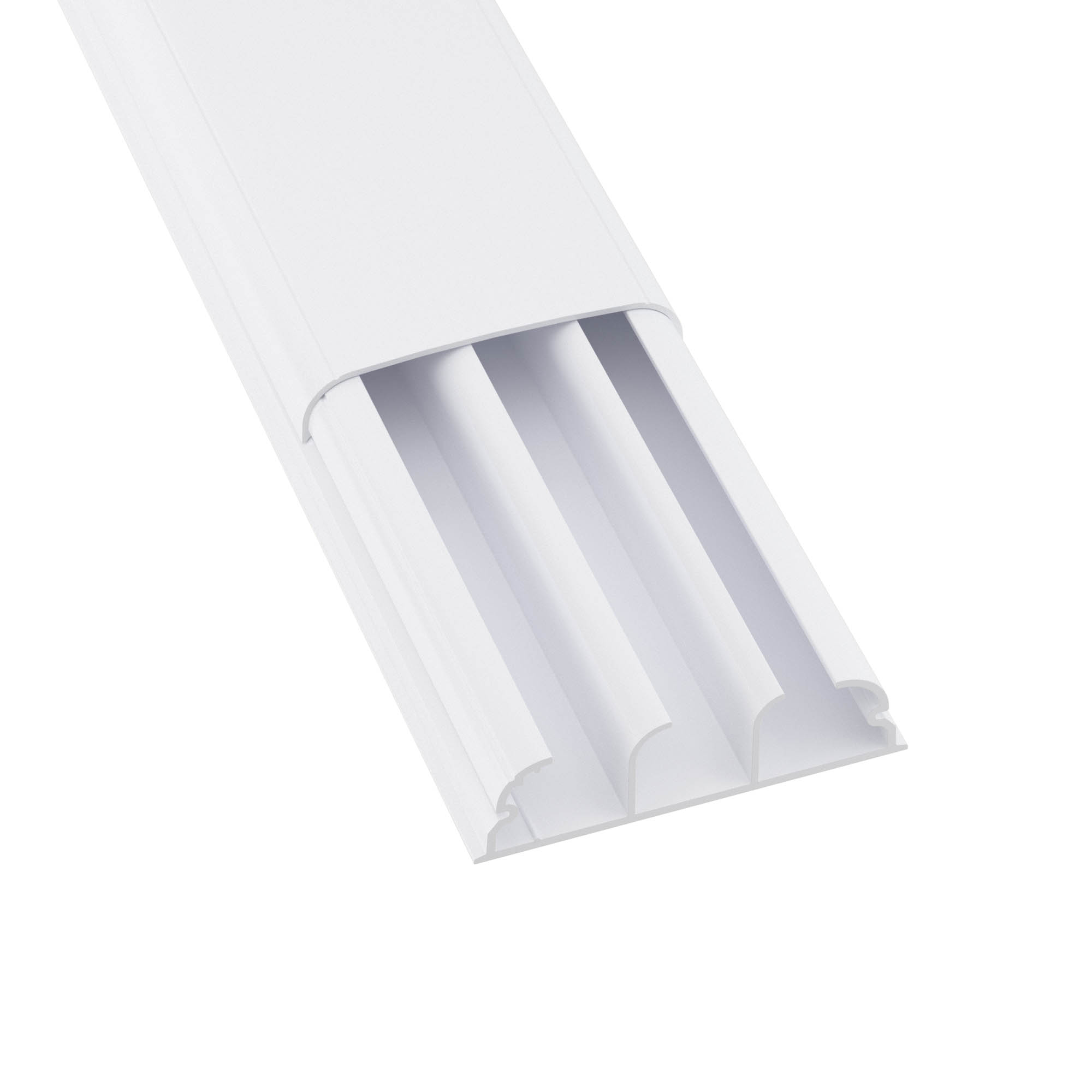

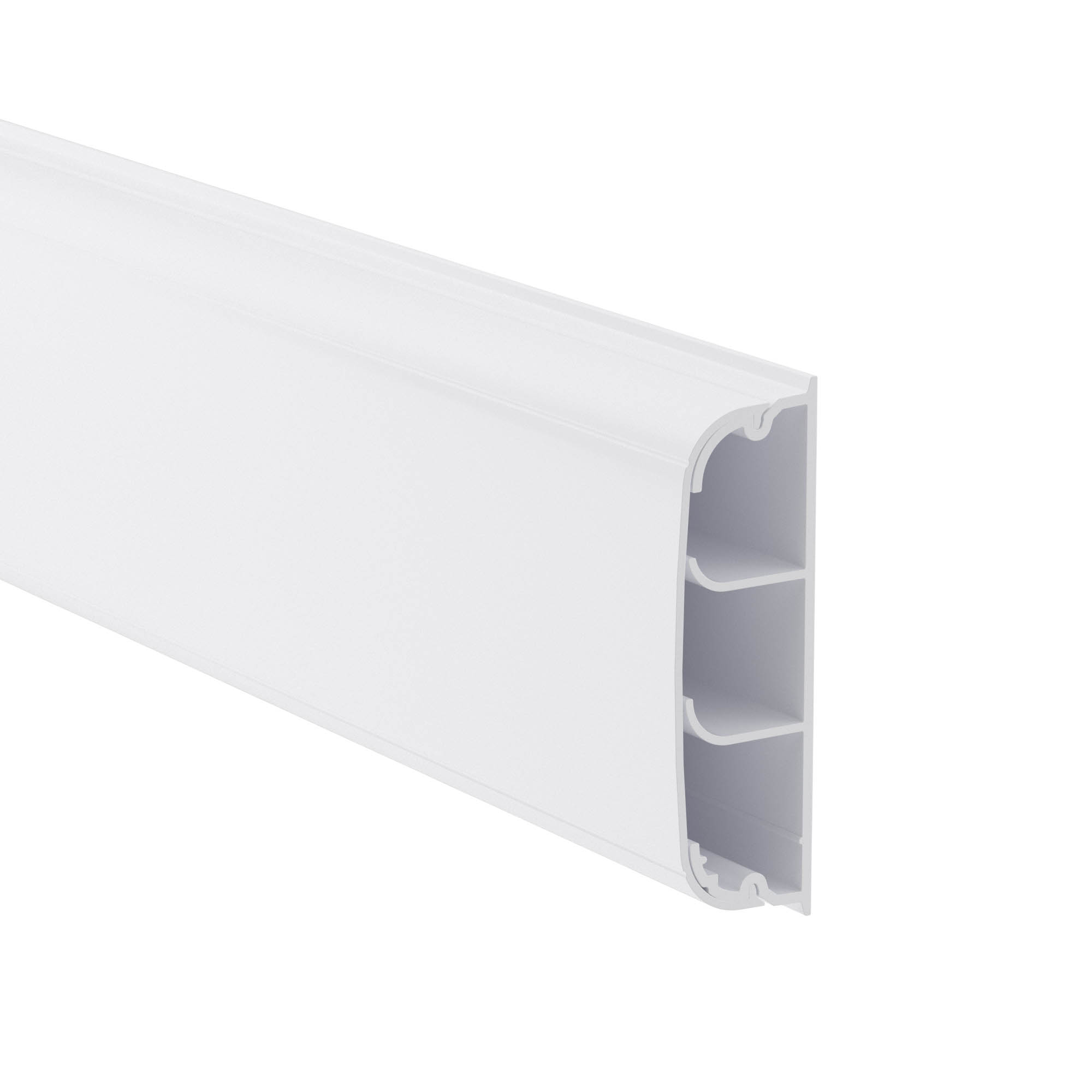

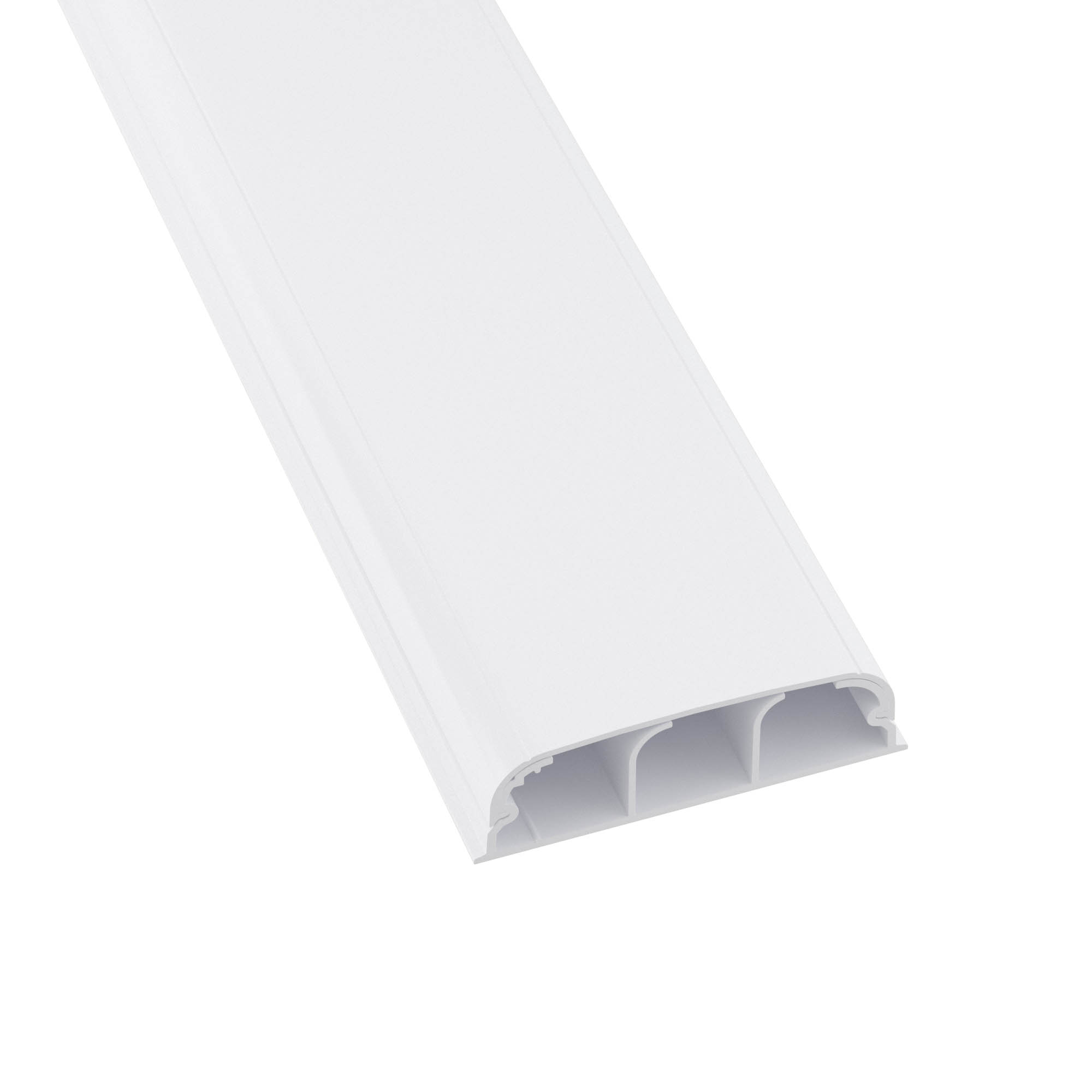

Cable trunking 70x22 mm with cover, white
Code: 07200
Cable trunking 70x22 mm with cover, white
Code: 07200
Halogen free | No |
Height, mm | 70 |
Depth, mm | 22 |
With carpet border | No |
Length, mm | 2000 |
Material | Plastic |
Number of partitions | 3 |
Mounting perforation in bottom | No |
Useful cross section, mm² | 1085 |
Sealing lip cover | Wall |
With protection film | No |
Colour cover | Pure white |
Decoration | Other |
Temperature of mounting, °C | 5°С ... +60°С |
Width (nominal), mm | 70 |
Ingress Protection rating, IP | IP40 |
Average filled area, sq.mm | 347+372+358 |
Summarized profile area (max), sq.mm | 1085 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Shock resistance, J | 6 |
Climate version | UHL4 |
Voltage of disruption, V | More 2500 |
Height (nominal), mm | 22 |
Self-glueing base | false |
Product type | Skirting cable ducts with cover |
