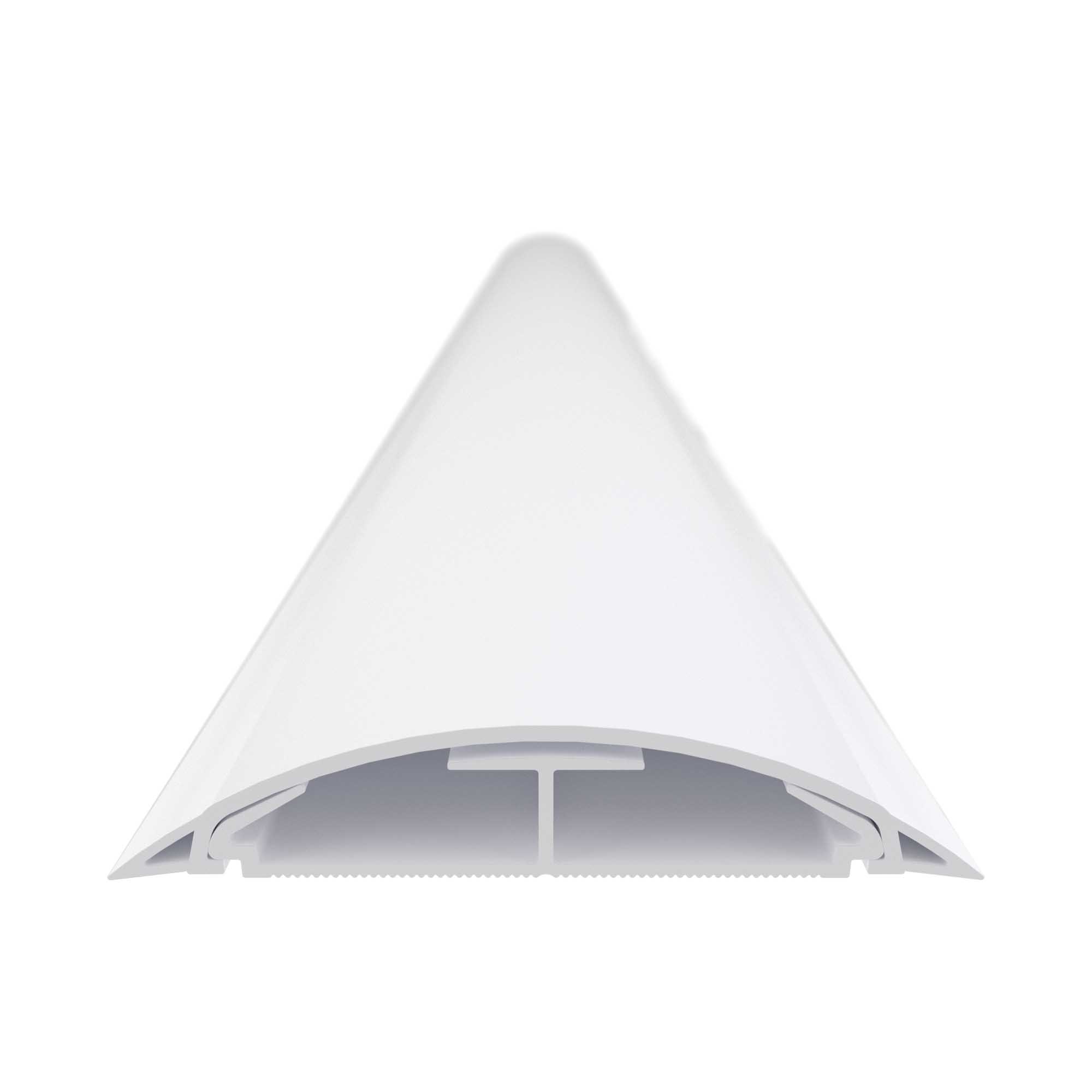

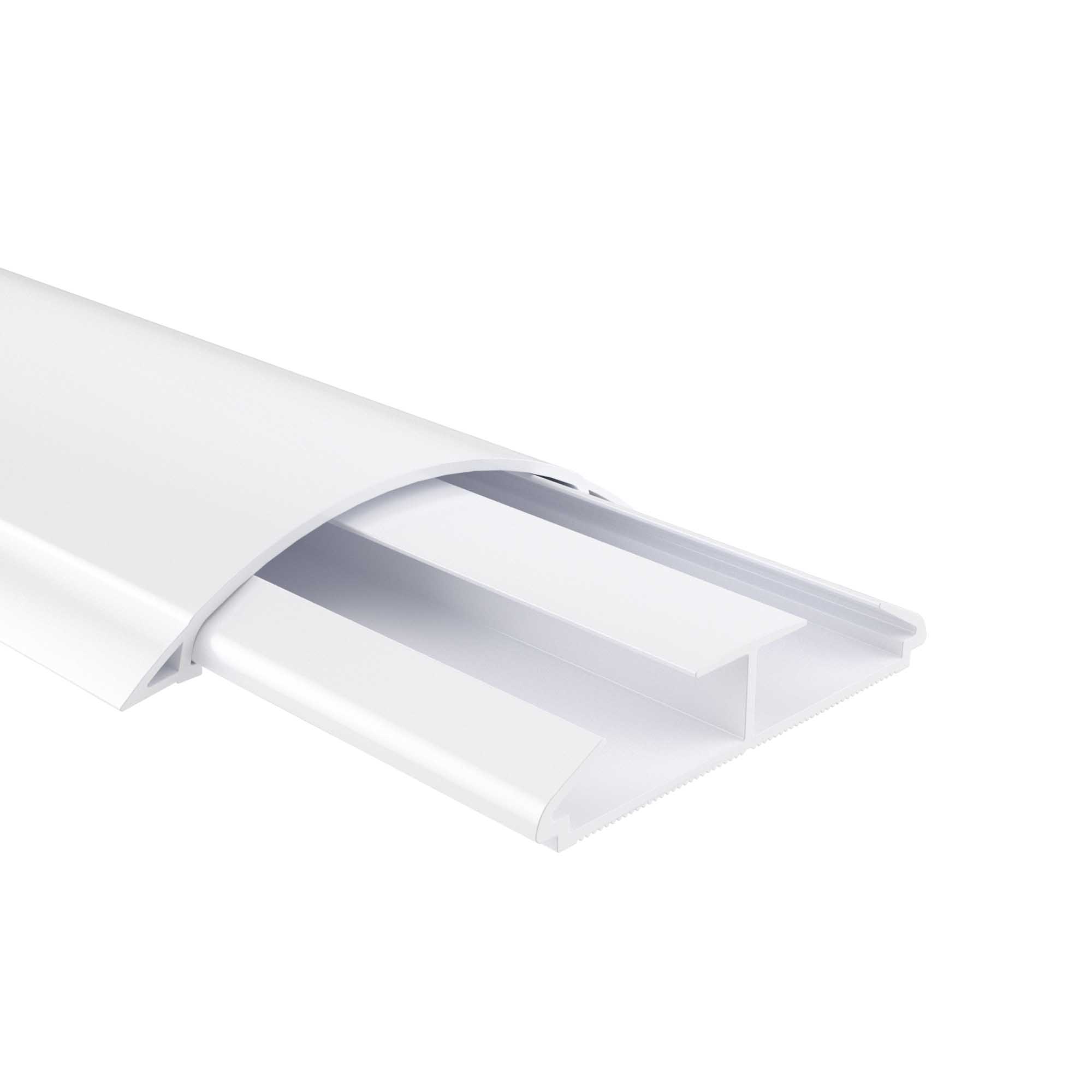

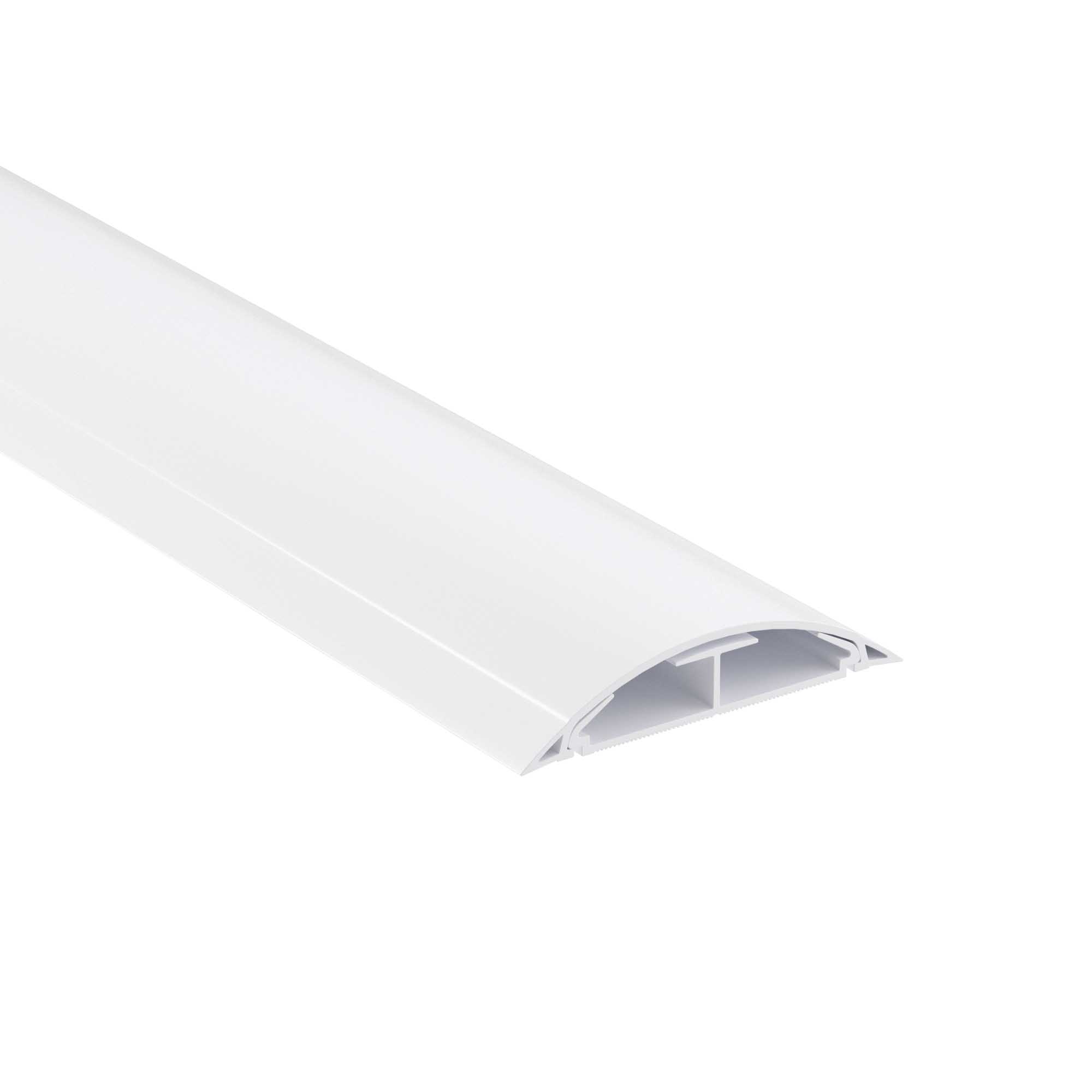

Cable trunking for floor 50х12 mm CSP-F, white

Colour Clear white

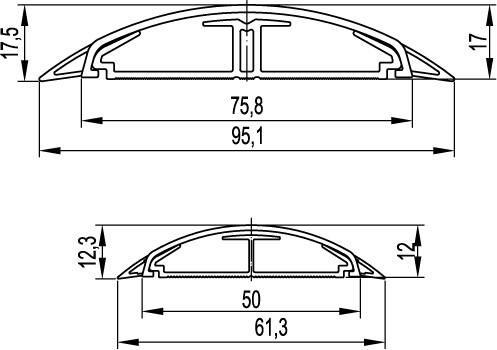

Width, mm 61.3
Height, mm 12.3
Self-adhesive No
Length, mm 2000
Material Plastic
Number of partitions 1
Sealing lip No
Color White
Raw material PVC
Temperature of mounting, °C +5°С ... +60°С
Width (nominal), mm 50
Ingress Protection rating, IP IP40
Average filled area, sq.mm 130+130
Summarized profile area (max), sq.mm 260
Temperature of operation, °C +5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 4
Climate version UHL4
Q'ty of bays 2
Voltage of disruption, V More 2500
Height (nominal), mm 12
Fire protection It is not spread combustion (GOST R 53313-2009)
Self-glueing base false
Type Floor cable ducts
