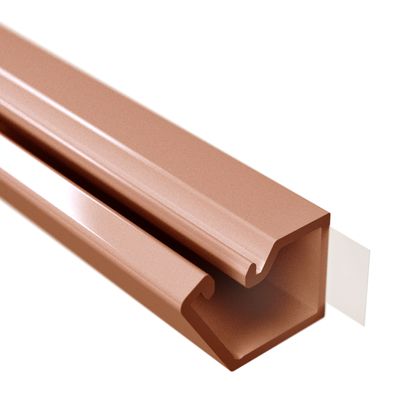

TMR 10х10 Cable trunking with cover, self-adhesive, brown

Code: 00301B
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 10
Ingress Protection rating, IP IP40
Average filled area, sq.mm 61
Summarized profile area (max), sq.mm 61
Temperature of usage, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 0.5
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 10
Self-glueing base YES
Colour Brown
Width, mm 10
Height, mm 10
Surface protection Other
Cover model With film hinge
Material quality PVC
Length, mm 2000
Material Plastic
Type of fastening Self-adhesive
With cable fixing clip No
With duct connector No
Useful cross section, mm2 61
Protection film No
Delivery on roll No
Transparent No
Suitable for circuit integrity No
