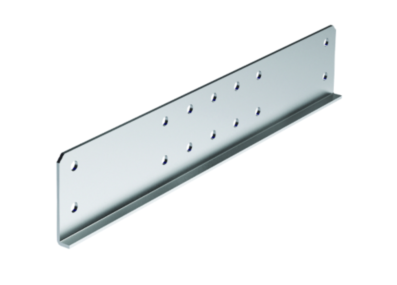

External connector, GTO 50 LI HDZL

Code: LG5200HDZL
External connector, GTO 50 LI HDZL
External connector, GTO 50 LI HDZL
Surface protection Galvanic/electrolytic zinc plated zinc-nickel
Material quality Other
Length, mm 350
Material Steel
Suitable for wire mesh tray No
Suitable for cable ladder Yes
Suitable for cable duct No
Stainless steel, pickled No
Suitable for cable management system height, mm 50
Hinged joint horizontal No
Hinged joint vertical No
Suitable for circuit integrity No
Suitable for cable management system width, mm 50…600
Colour Light grey
Model Longitudinal joint
Type of connection Screw connector

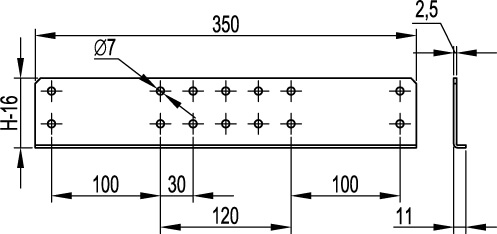

Drawings
