Horizontal connector, GTO 50L HDZL

Code: LG5000HDZL

Horizontal connector, GTO 50L HDZL

Code: LG5000HDZL
Surface protection Zinc lamellar coating
Material quality Steel
Length, mm 124
Material Steel
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Stainless steel, pickled Yes
Suitable for cable management system height, mm 50
Hinged joint horizontal Yes
Hinged joint vertical Yes
Suitable for circuit integrity Yes
Suitable for cable management system width, mm 50...600
Colour Light grey
Model Longitudinal joint
Type of connection Screw connector
Type of accessories Mounting accessories
Product type Mounting accessories
Height 50 mm
Material Hot-dip galvanized

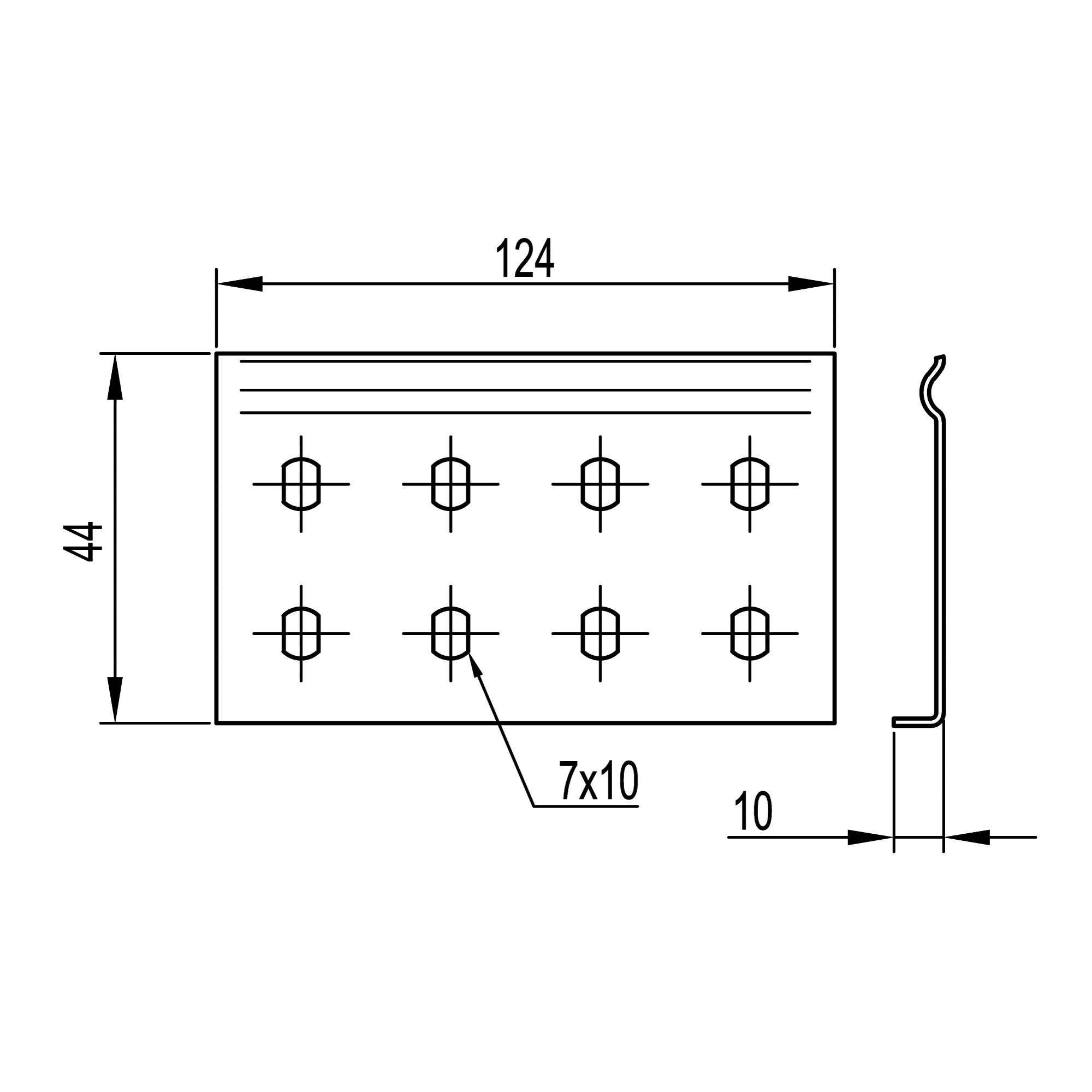

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
