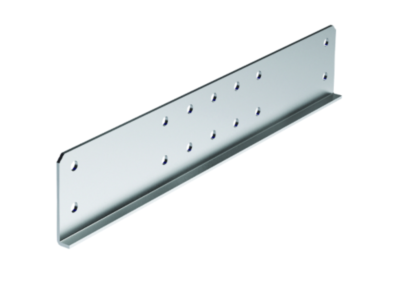

External connector, GTO 100 LI HDZL

Code: LG1200HDZL
External connector, GTO 100 LI HDZL
External connector, GTO 100 LI HDZL
Surface protection Galvanic/electrolytic zinc plated zinc-nickel
Material quality Other
Length, mm 350
Material Steel
Suitable for wire mesh tray No
Suitable for cable ladder Yes
Suitable for cable duct No
Stainless steel, pickled No
Suitable for cable management system height, mm 100
Hinged joint horizontal No
Hinged joint vertical No
Suitable for circuit integrity No
Suitable for cable management system width, mm 50…600
Colour Light grey
Model Longitudinal joint
Type of connection Screw connector

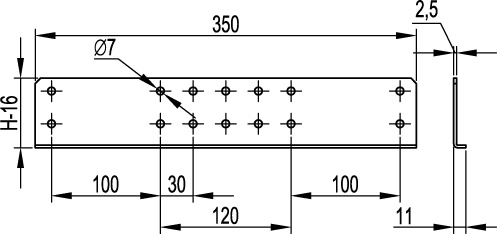

Drawings
Seria Name Autodesk Revit STEP SAT DWG (dynamic blocks) Intergraph AVEVA
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
ZIP
11.67 MB
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
ZIP
19.32 MB
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
RAR
17.38 MB
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
ZIP
19.21 MB
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
RAR
5.28 MB
L5 Combitech - metal ladder trays
System ladder trays "L5 Combitech"
ZIP
726.23 kB
