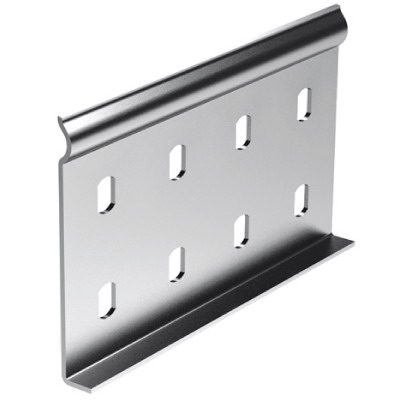

Horizontal connector, GTO 100L ZL
Code: LG1000ZL
Horizontal connector, GTO 100L ZL
Code: LG1000ZL
| Surface protection | Continuously galvanized zinc-aluminium |
| Material quality | Steel |
| Length, mm | 124 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | No |
| Suitable for cable management system height, mm | 100 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 50...600 |
| Colour | Light grey |
| Model | Longitudinal joint |
| Type of connection | Screw connector |
| Type of accessories | Mounting accessories |
| Product type | Mounting accessories |
| Height | 100 mm |

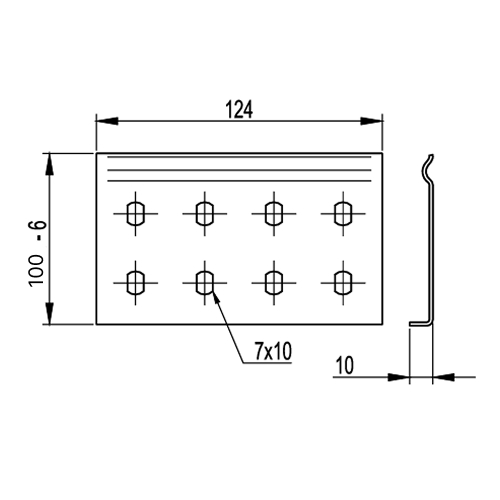

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
