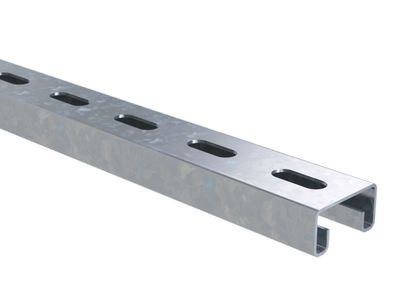

C-profile 41x21, L1000 thickness 2,0 mm, ZL

Code: BPV2110ZL
Colour Light grey
Width, mm 41
Model Simple profile
Height, mm 21
Surface protection Continuously galvanized zinc-aluminium
Material thickness, mm 2
Material quality Other
Length, mm 1000
Material Steel
Type of perforation Back perforated
Profile shape C-profile
Slit width, mm 10,5
Hole width, mm 10,5
Suitable for circuit integrity No

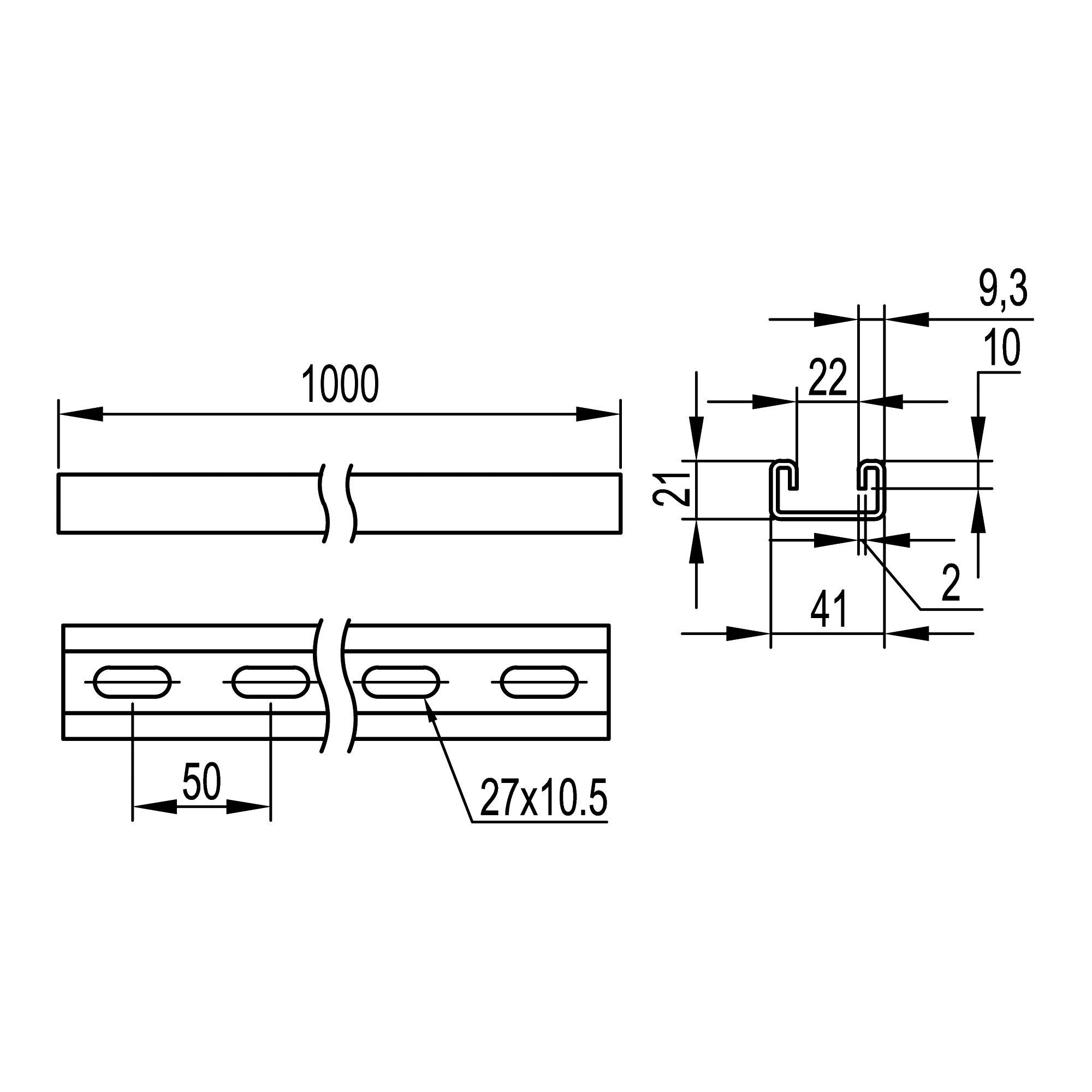

Drawings
Seria Name SAT STEP AVEVA DWG (dynamic blocks) Intergraph
B5 Combitech - mounting accessories
B5 Combitech - mounting accessories
Certificates
Name Document
