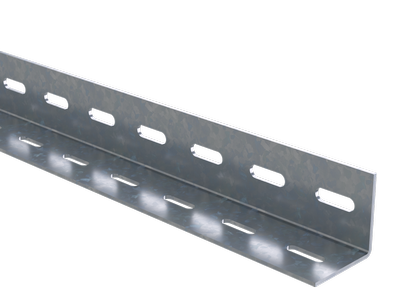

L-profile 50х50, L2000 thickness 2,5 mm, ZL
Code: BPM2520ZL
L-profile 50х50, L2000 thickness 2,5 mm, ZL
Code: BPM2520ZL
Model | Singular profile |
Height, mm | 50 |
Surface protection | Continuously galvanized zinc-aluminium |
Material thickness, mm | 2.5 |
With toothing | Yes |
Length, mm | 2000 |
Material | Steel |
Type of perforation | 2 sides punched |
Profile shape | L-profile |
Slit width, mm | 27 |
Hole width, mm | 8.5 |
Snap-off | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material | Zinc-lamellated steel |
Accessories
Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
