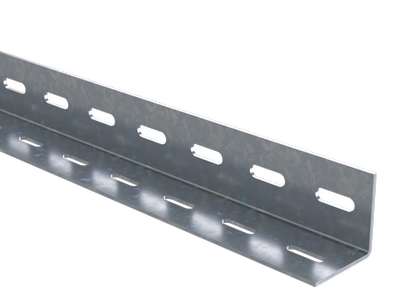

L-profile 50х50, L1000 thickness 2,5 mm, ZL
Code: BPM2510ZL
L-profile 50х50, L1000 thickness 2,5 mm, ZL
Code: BPM2510ZL
| Model | Singular profile |
| Height, mm | 50 |
| Surface protection | Continuously galvanized zinc-aluminium |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 1000 |
| Material | Steel |
| Type of perforation | 2 sides punched |
| Profile shape | L-profile |
| Slit width, mm | 27 |
| Hole width, mm | 8.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material | Zinc-lamellated steel |
Accessories

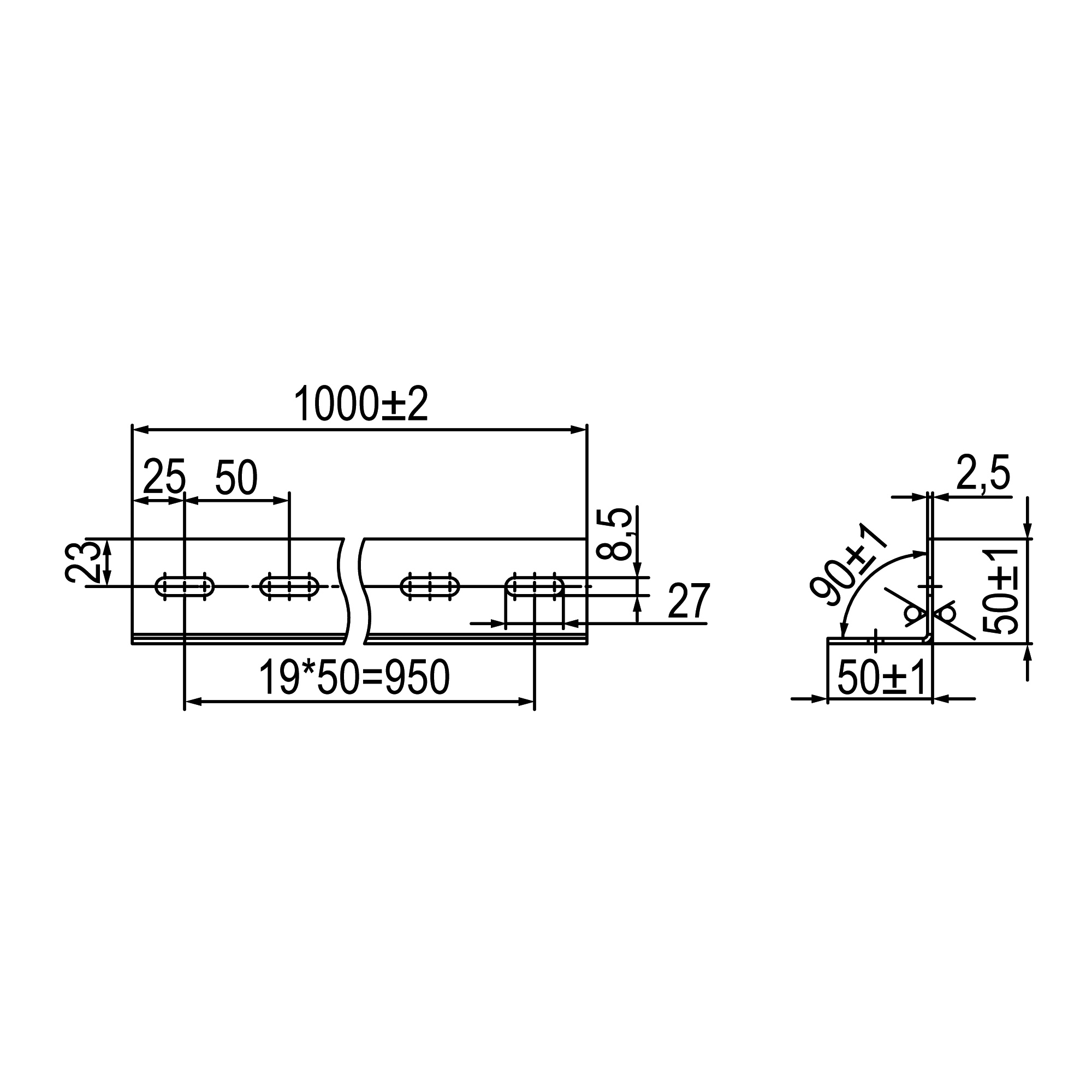

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
