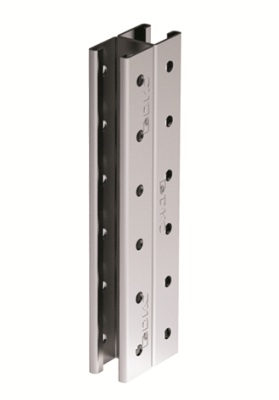

Double C-profile 41x41 LAS, L300 ,thickness 2,5 mm, ZL
Code: BPD4103ZL
Double C-profile 41x41 LAS, L300 ,thickness 2,5 mm, ZL
Code: BPD4103ZL
| Model | Double profile |
| Height, mm | 41 |
| Surface protection | Continuously galvanized zinc-aluminium |
| Material thickness, mm | 2.5 |
| With toothing | Yes |
| Length, mm | 300 |
| Material | Steel |
| Type of perforation | 3 sides punched |
| Profile shape | C-profile |
| Slit width, mm | 22 |
| Hole width, mm | 10.5 |
| Snap-off | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Height, mm | 41 |
| Width, mm | 82 |
| Length, mm | 300 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Mounting rails |
| Material | Zinc-lamellated steel |

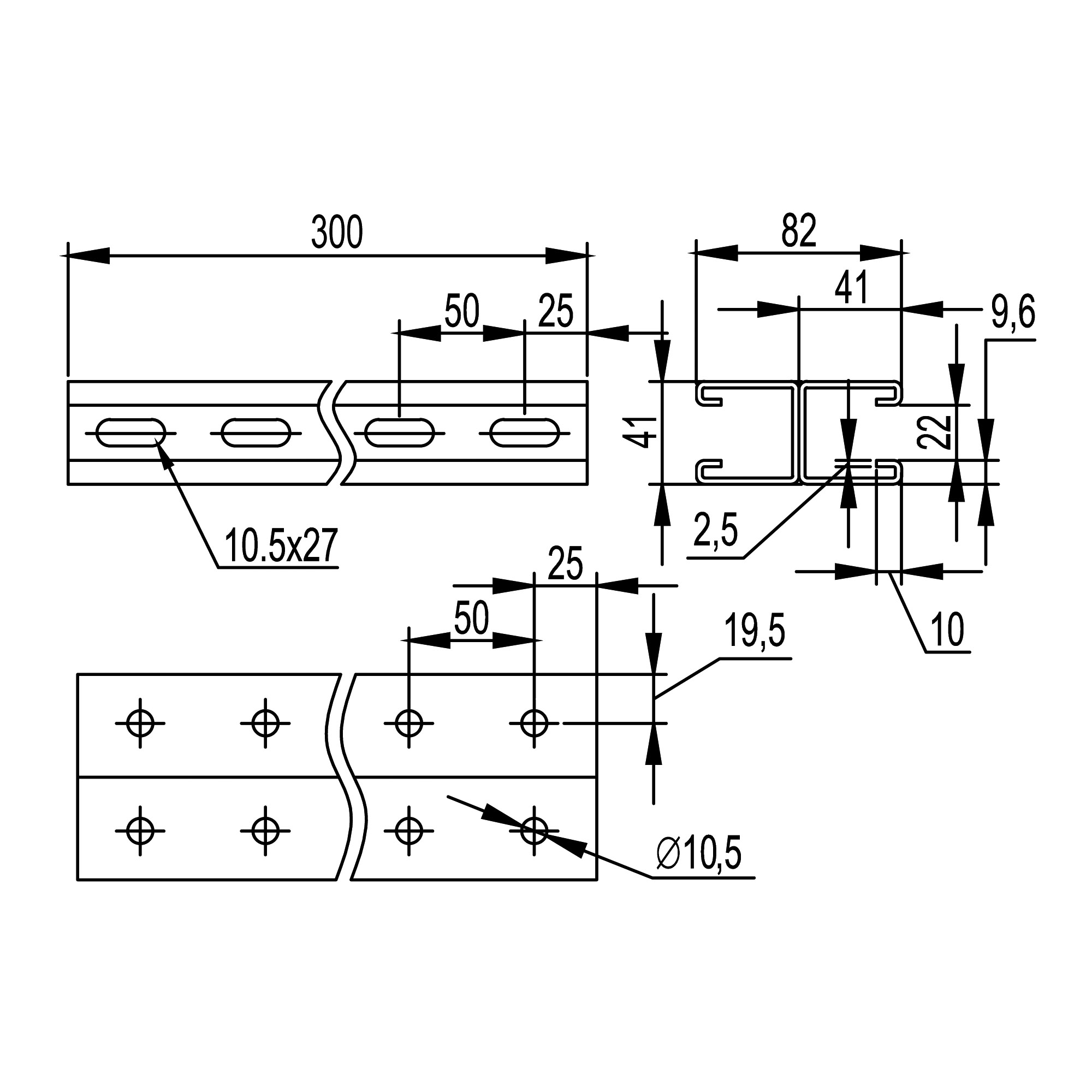

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
