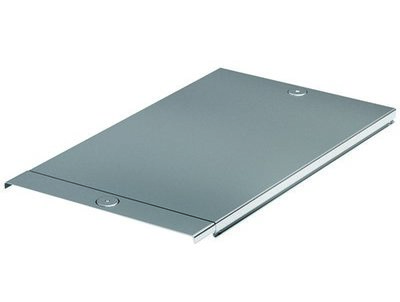

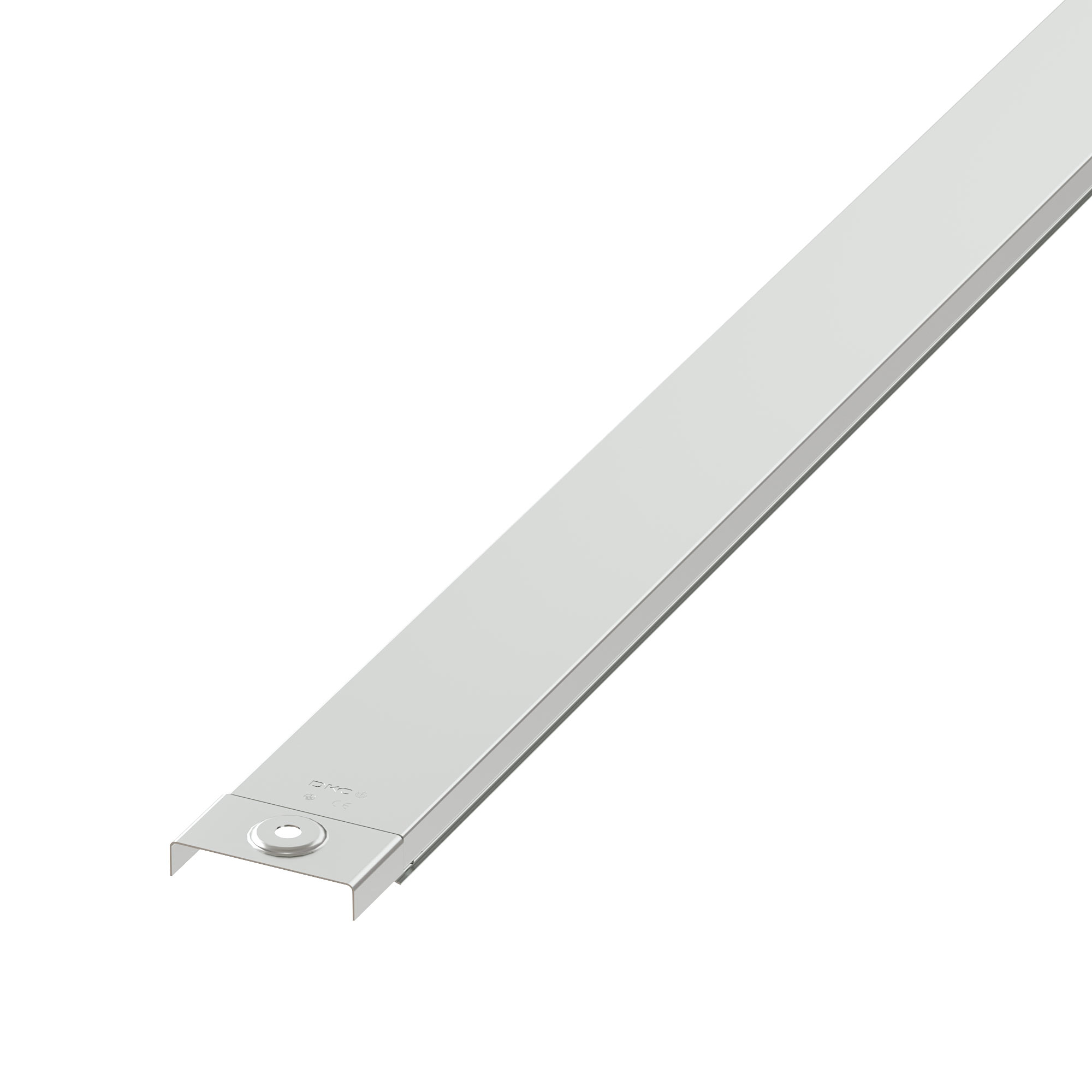

Straight Element Cover b. 100 L 3000, thick 1,5mm ZL

Code: 3552215ZL
Straight Element Cover b. 100 L 3000, thick 1,5mm ZL
Straight Element Cover b. 100 L 3000, thick 1,5mm ZL
Colour Light grey
Surface protection Continuously galvanized zinc-aluminium
Material thickness, mm 1.5
Material quality Other
Length, mm 3000
Material Steel
Type of fastening Snapped on
Cover width, mm 100
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable duct Yes
Stainless steel, pickled No
Material PVC
Height, mm 15
Width, mm 100
Length, mm 3000
Thickness of metal sheet, mm 1.5
Analogs
Straight Element Cover b. 100 L3000 thick.1,5 mm, HDZ
Straight Element Cover b. 100 L3000 thick.1,5 mm, HDZ
Code: 3552215HDZ

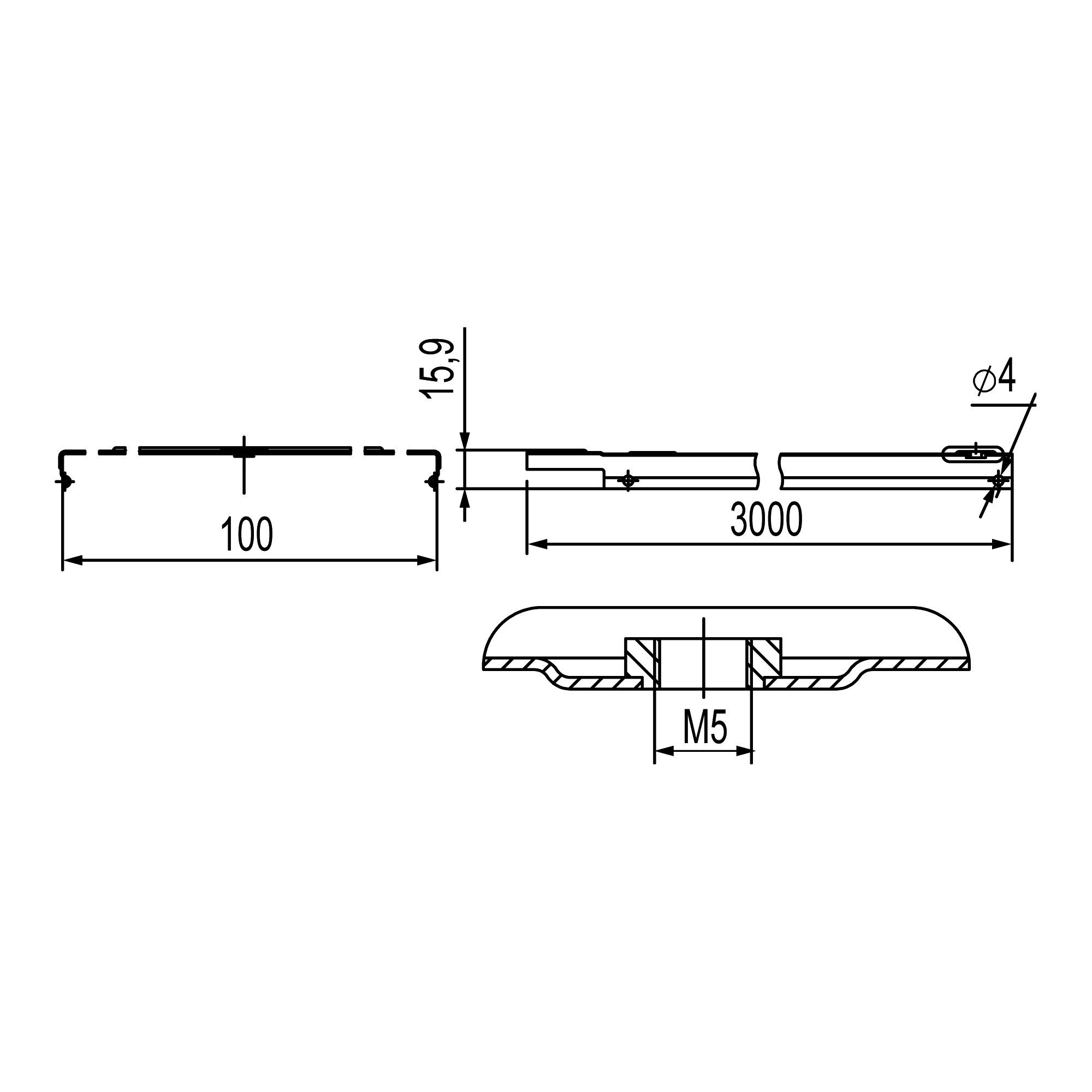

Drawings
