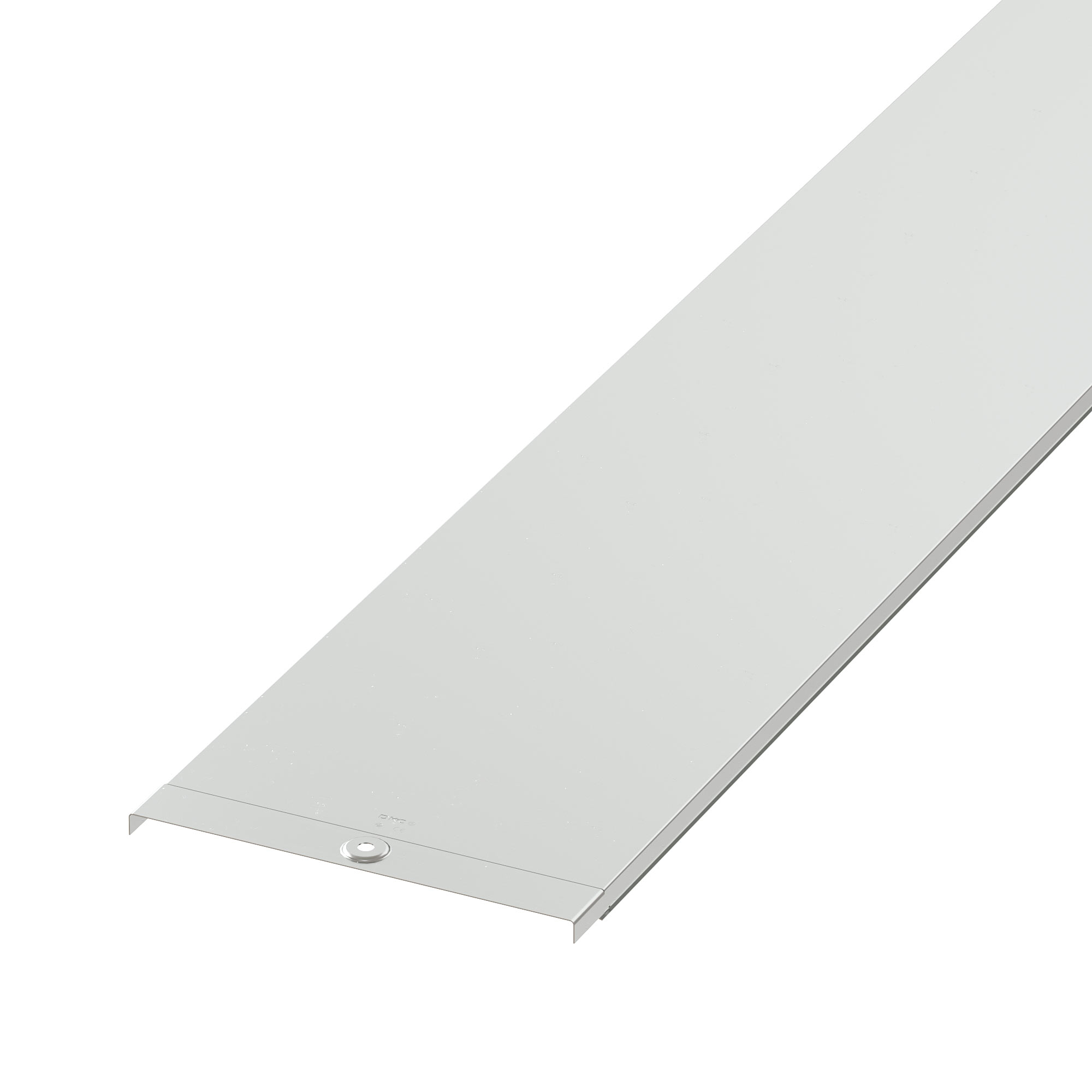

Straight Element Cover b .200 L2000 ZL

Code: 35514ZL

Straight Element Cover b .200 L2000 ZL

Code: 35514ZL
Colour Light grey
Surface protection Zinc lamellar coating
Material thickness, mm 0.7
Length, mm 2000
Material Steel
Type of fastening Snapped on
Cover width, mm 200
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Stainless steel, pickled Yes
Suitable for circuit integrity Yes
Material quality Steel
Product type Cover for straight elements
Length 2000 mm
Width 200 mm
Material Zinc lamellar coating
Thickness 0.7 mm
Accessories

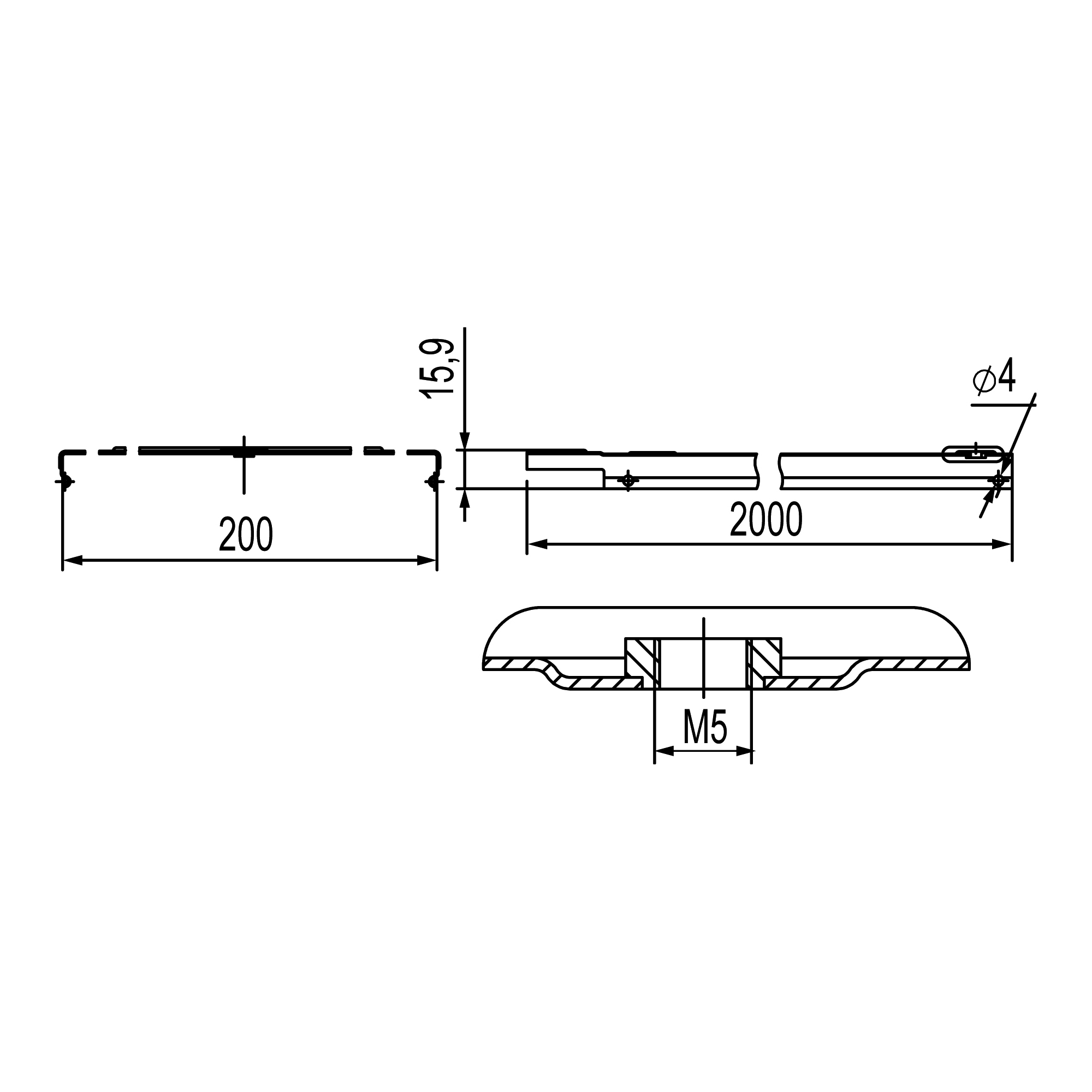

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
