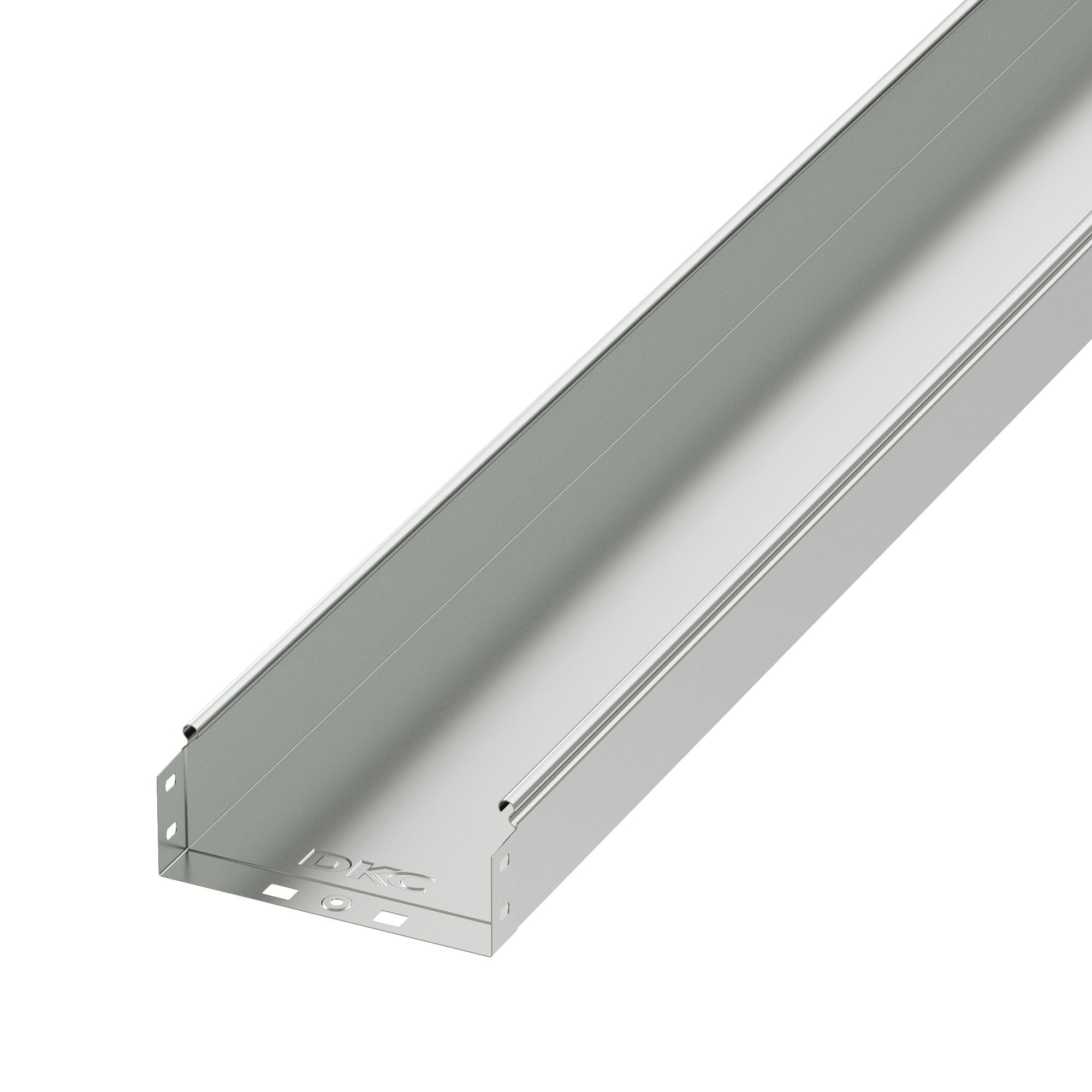

Non Perforated Straight Element 200х100 L 3000 ZL
Code: 35103ZL
Non Perforated Straight Element 200х100 L 3000 ZL
Code: 35103ZL
Colour | Light grey |
Width, mm | 200 |
Model | Without connector |
Height, mm | 100 |
Surface protection | Zinc lamellar coating |
Material thickness, mm | 0.8 |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Useful cross section, mm² | 19700 |
Suitable for circuit integrity | Yes |
Product type | Non perforated straight elements |
Type | Metal sheet trays - " S5 Combitech" |
Height | 100 mm |
Length | 3000 mm |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 200 mm |
Accessories
Analogs

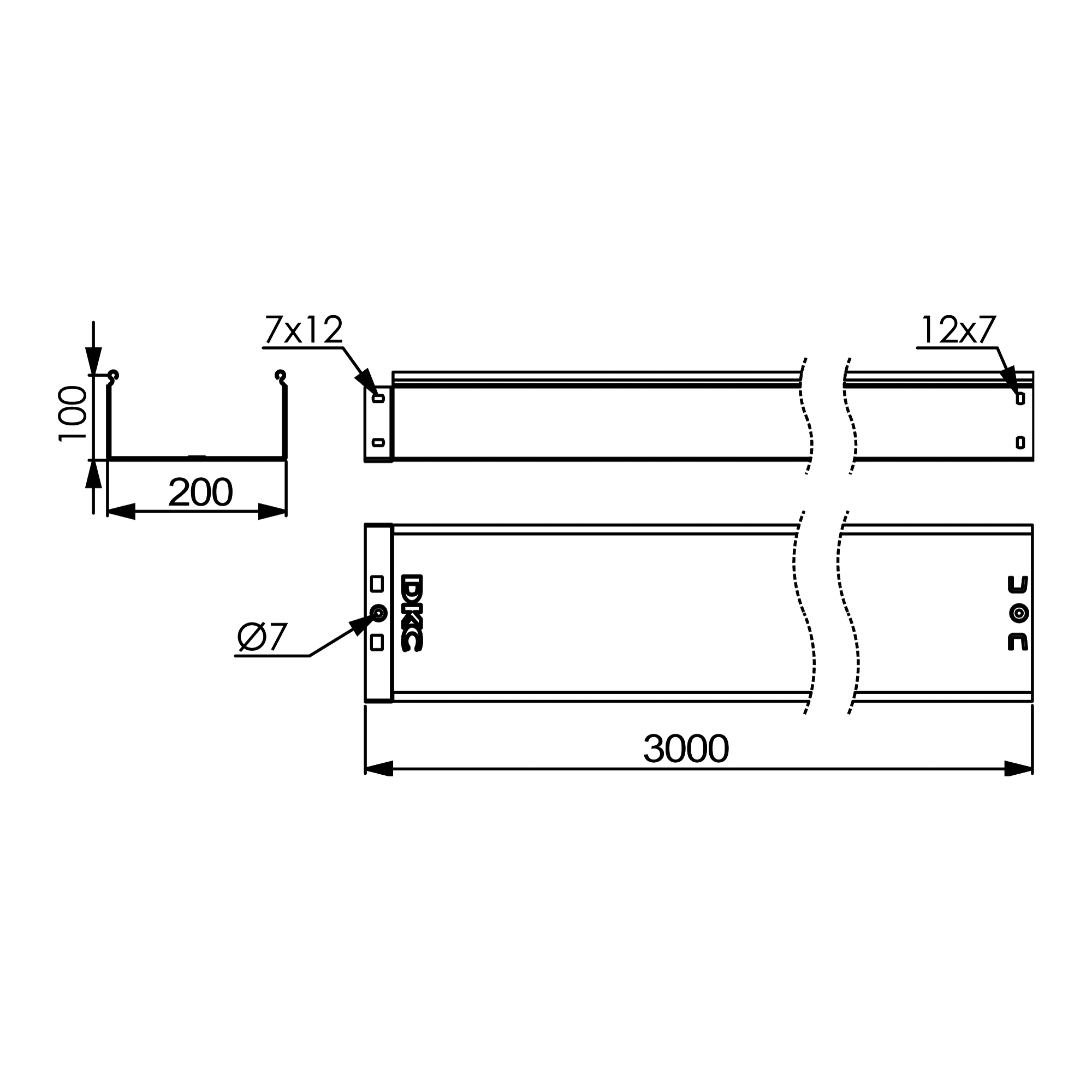

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
