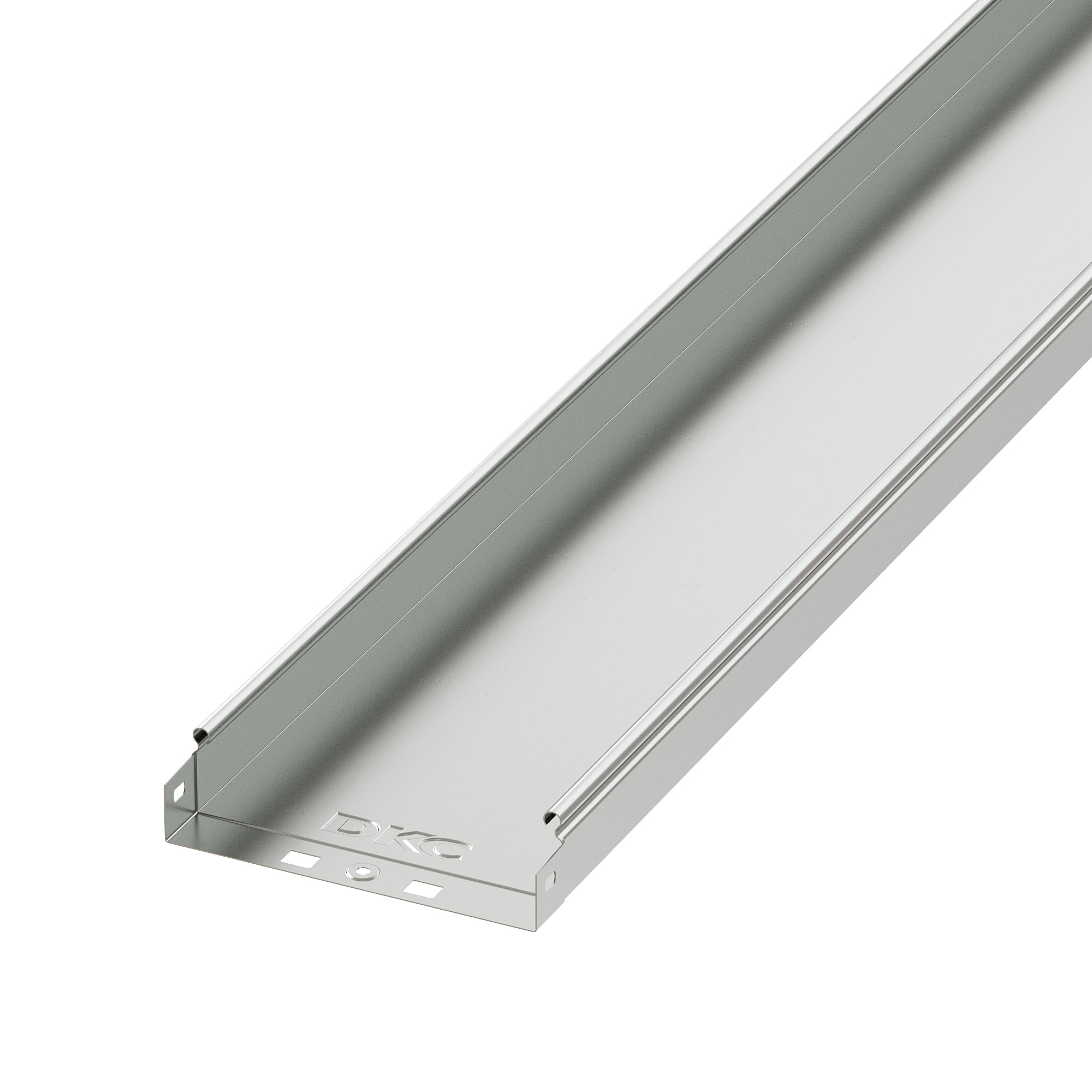

Non Perforated Straight Element 200х50 L 2000 ZL

Code: 35014ZL

Non Perforated Straight Element 200х50 L 2000 ZL

Code: 35014ZL
Colour Light grey
Width, mm 200
Model Without connector
Height, mm 50
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Side wall perforation Yes
Material quality Steel
Length, mm 2000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 9800
Suitable for circuit integrity Yes
Product type Non perforated Straight Element
Length 2000 mm
Width 200 mm
Height 50 mm
Type Metal sheet trays - " S5 Combitech"
Thickness 0.8 mm
Material Zinc lamellar coating
Accessories
Analogs

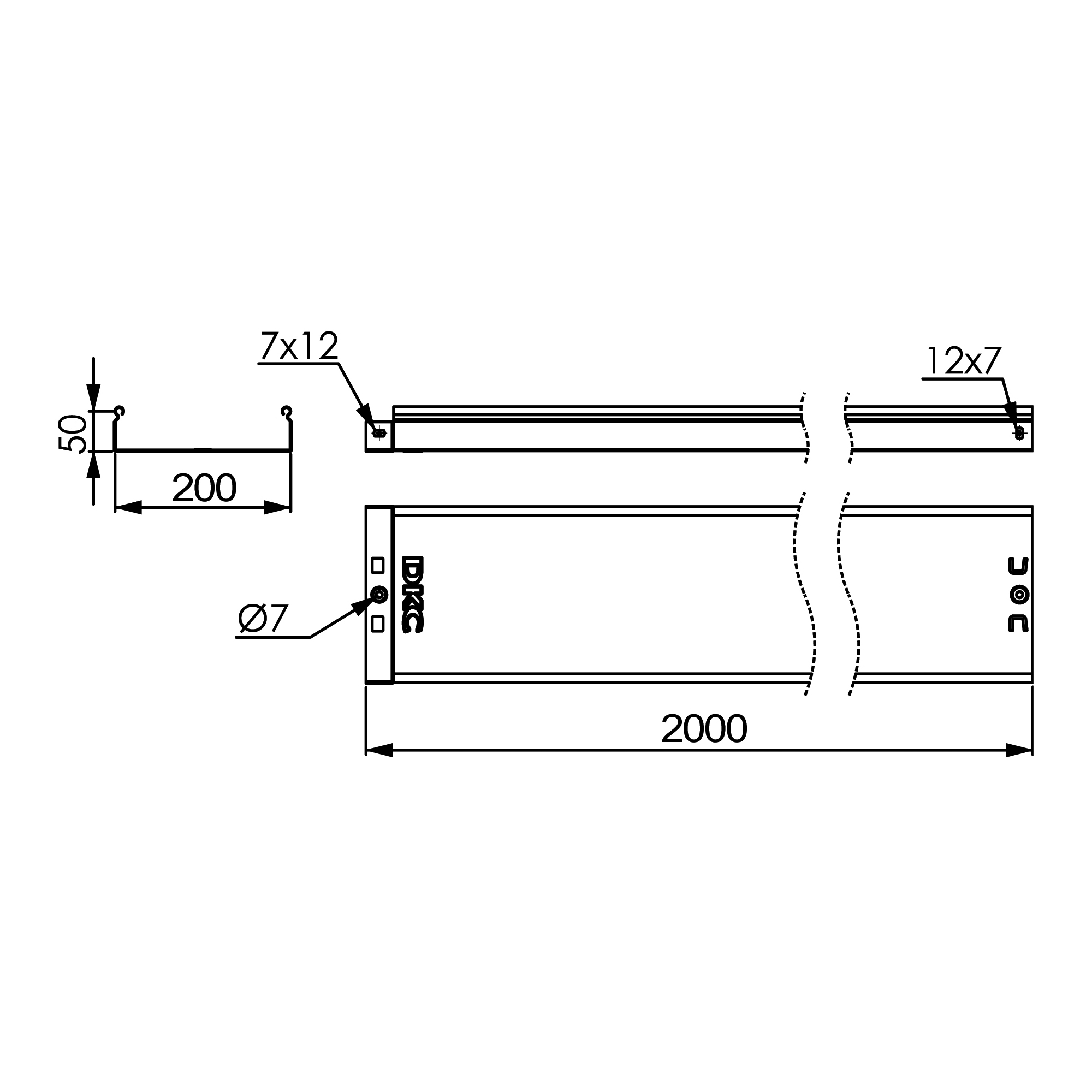

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
