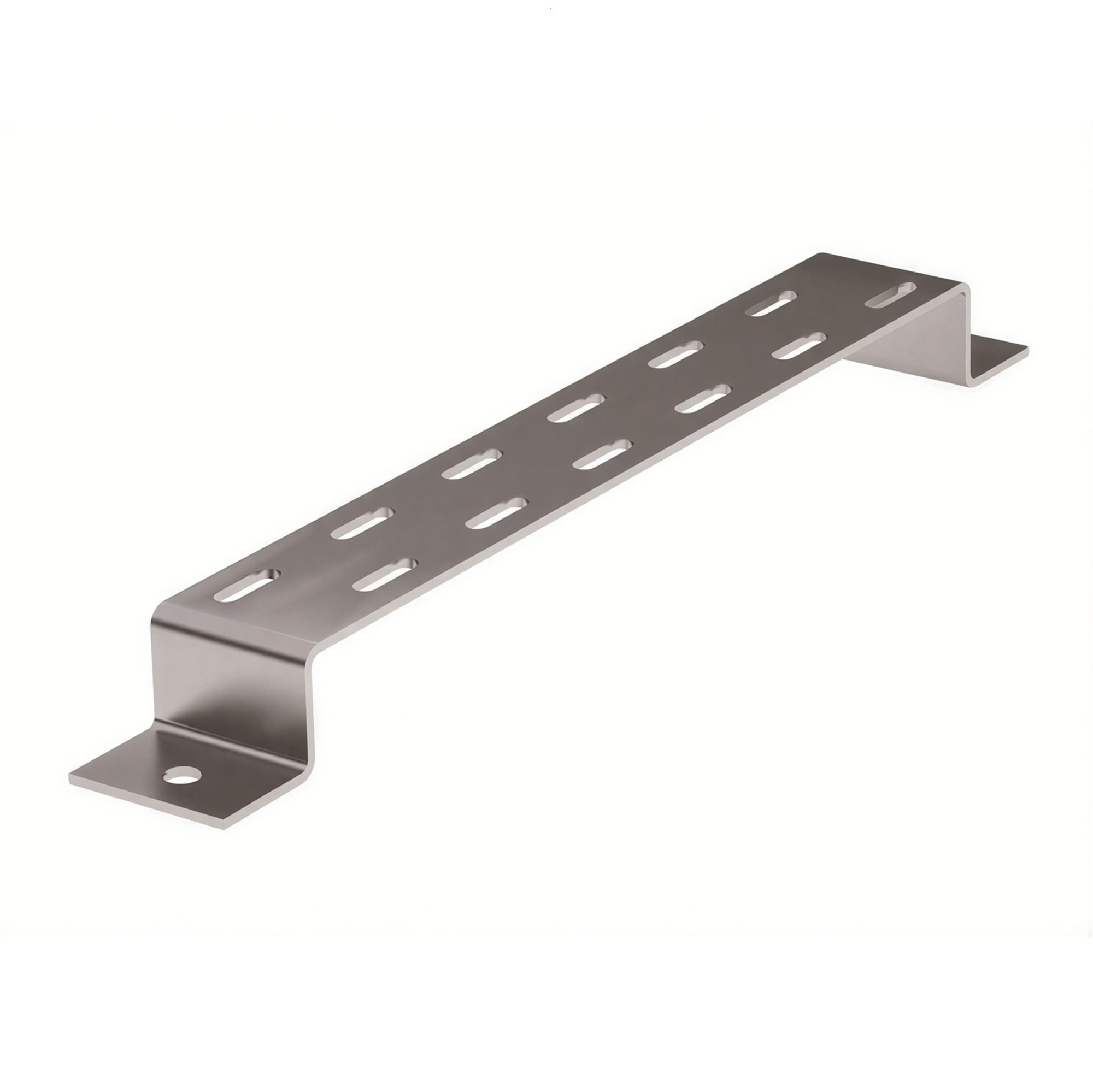

| Model | Face out bracket overhead |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Tray mounting | Screwable |
| Suitable for circuit integrity | No |
| Surface protection | Continuously galvanized zinc-aluminium |
| Suitable for cable management system width, mm | 300...300 |
| Material quality | Steel galvanised |
| Suitable for cable management system height, mm | 100 |

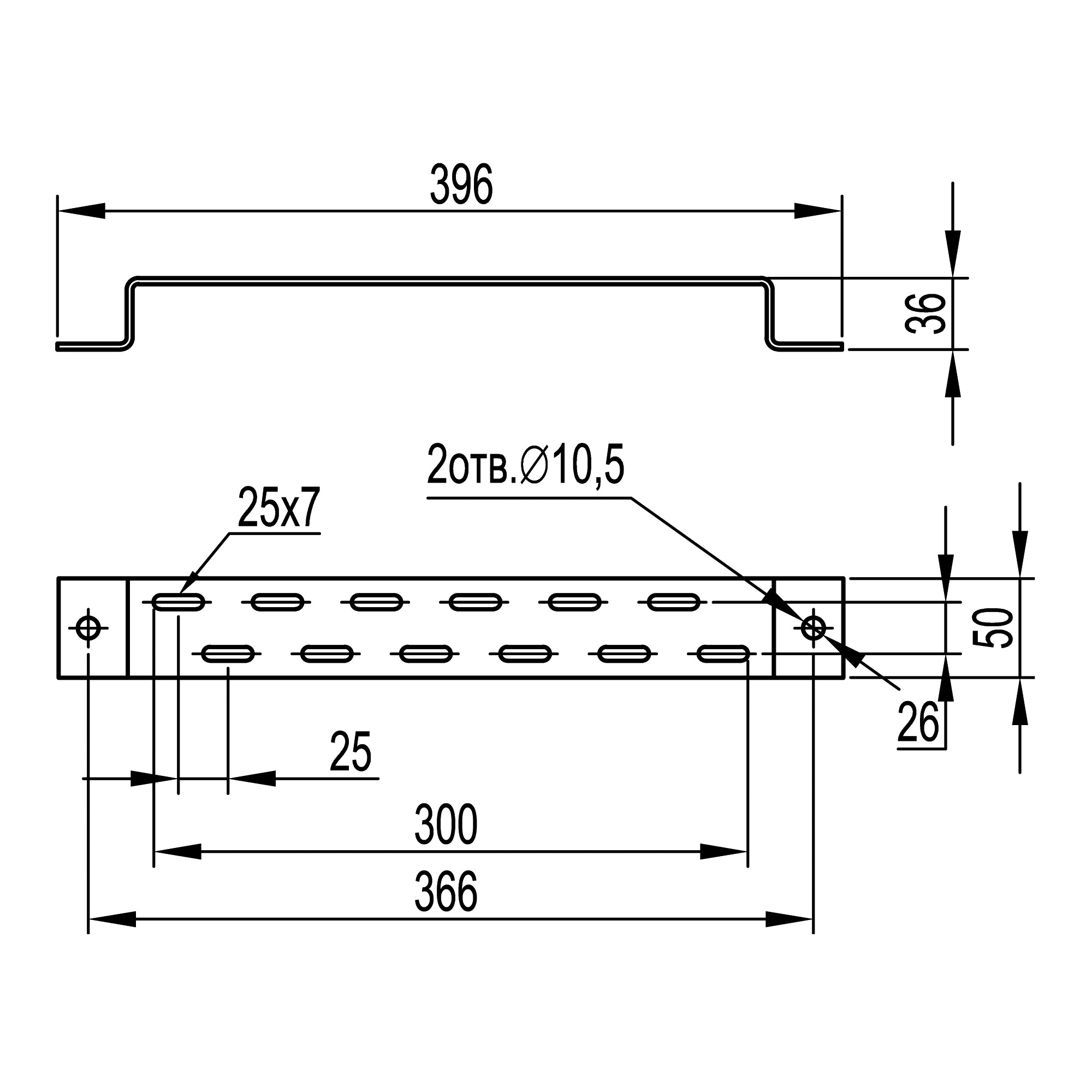

| Height, mm | 36 |
| Width, mm | 50 |
| Length, mm | 396 |
| Thickness of metal sheet, mm | 0 |
| Type | Fittings |
| Material | Zinc-lamellated steel |
