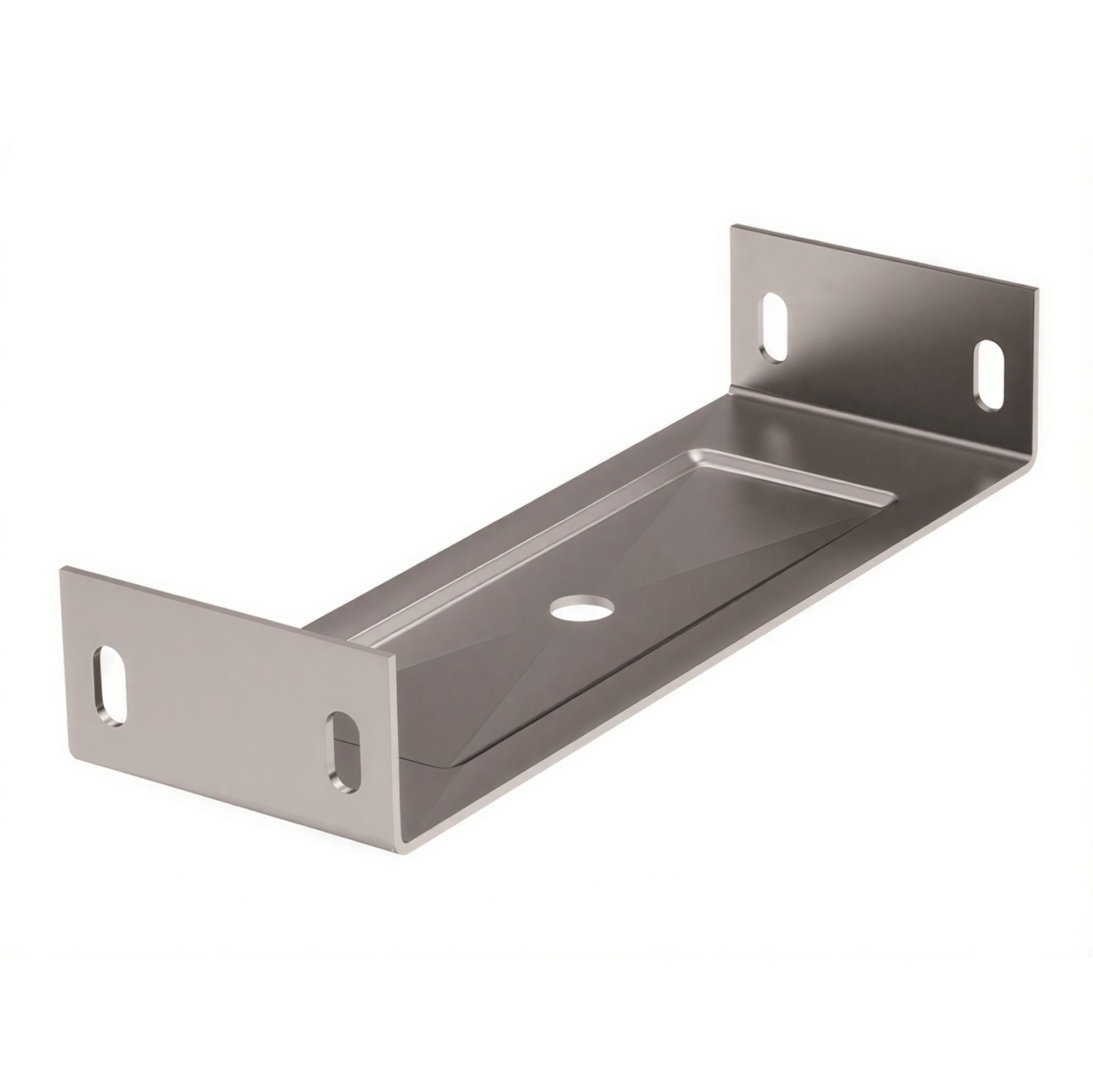

Guide SPC for tray base 300, thickness 2,0 mm, ZL
Code: BMT1030ZL
Guide SPC for tray base 300, thickness 2,0 mm, ZL
Code: BMT1030ZL
Model | Face out bracket overhead |
Material | Steel |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Tray mounting | Screwable |
Suitable for circuit integrity | No |
Height, mm | 37 |
Width, mm | 70 |
Length, mm | 310 |
Thickness of metal sheet, mm | 2 |
Type | Fittings |
Material | Zinc-lamellated steel |

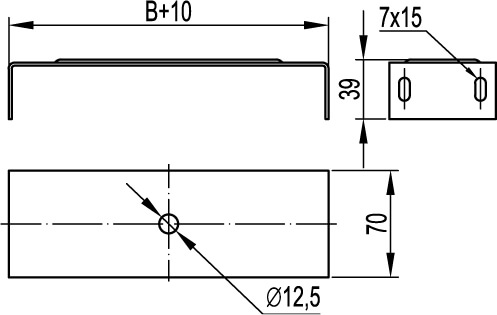

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
