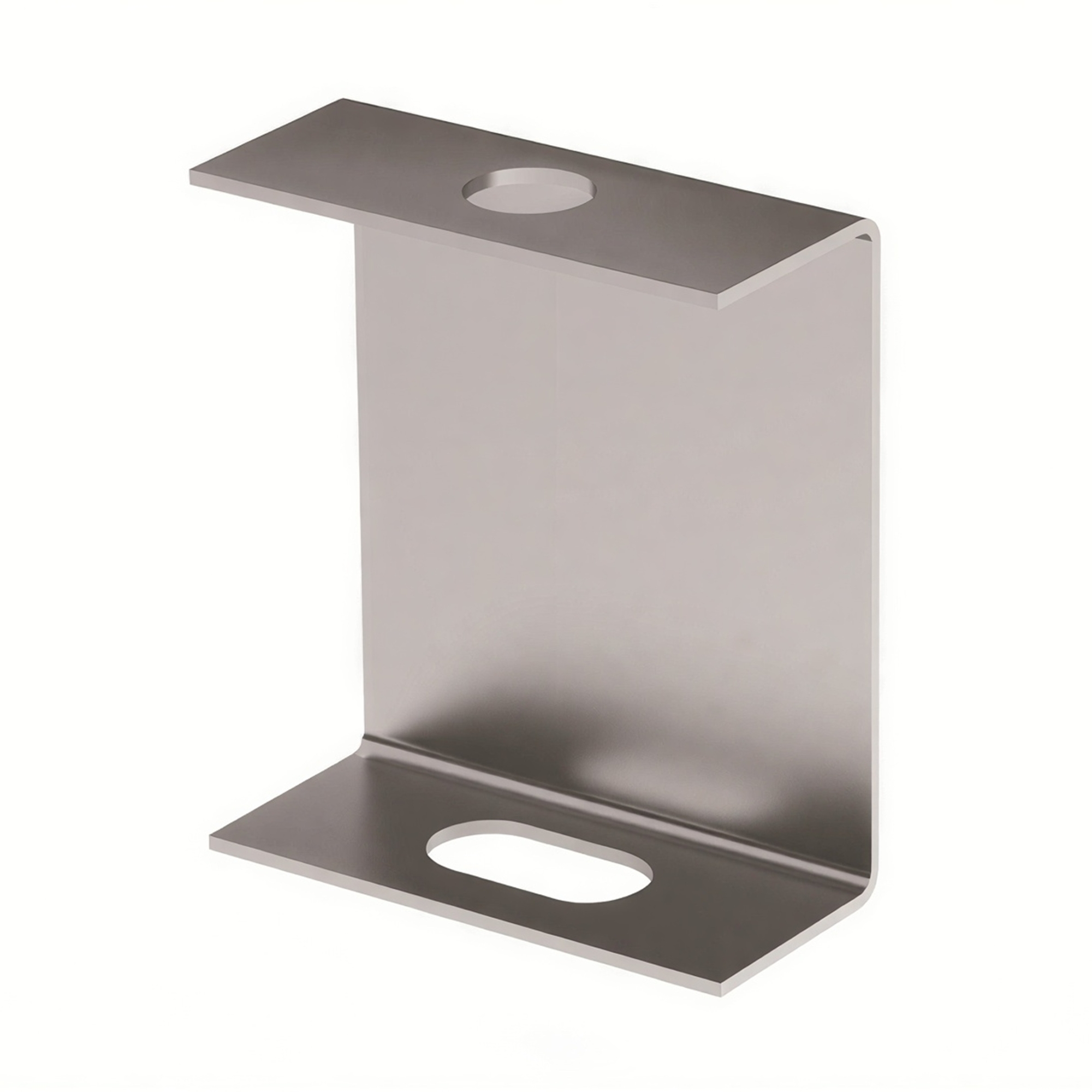

Lightweight bracket PL, thickness 2,0 mm, ZL
Code: BML1007ZL
Lightweight bracket PL, thickness 2,0 mm, ZL
Code: BML1007ZL
Colour | Light grey |
Width, mm | 60 |
Model | Pendant bar |
Height, mm | 70 |
Surface protection | Continuously galvanized zinc-aluminium |
Diameter, mm | 12.5 |
Adjustable | No |
Hinging | No |
Material quality | Other |
Length, mm | 27 |
Material | Steel |
Load bearing capacity, N | 588 |
Thread size (metric) | 12 |
Suitable for circuit integrity | No |
Width, mm | 60 |
Length, mm | 27 |
Thickness of metal sheet, mm | 2 |
Type | Fittings |
Material | Zinc-lamellated steel |

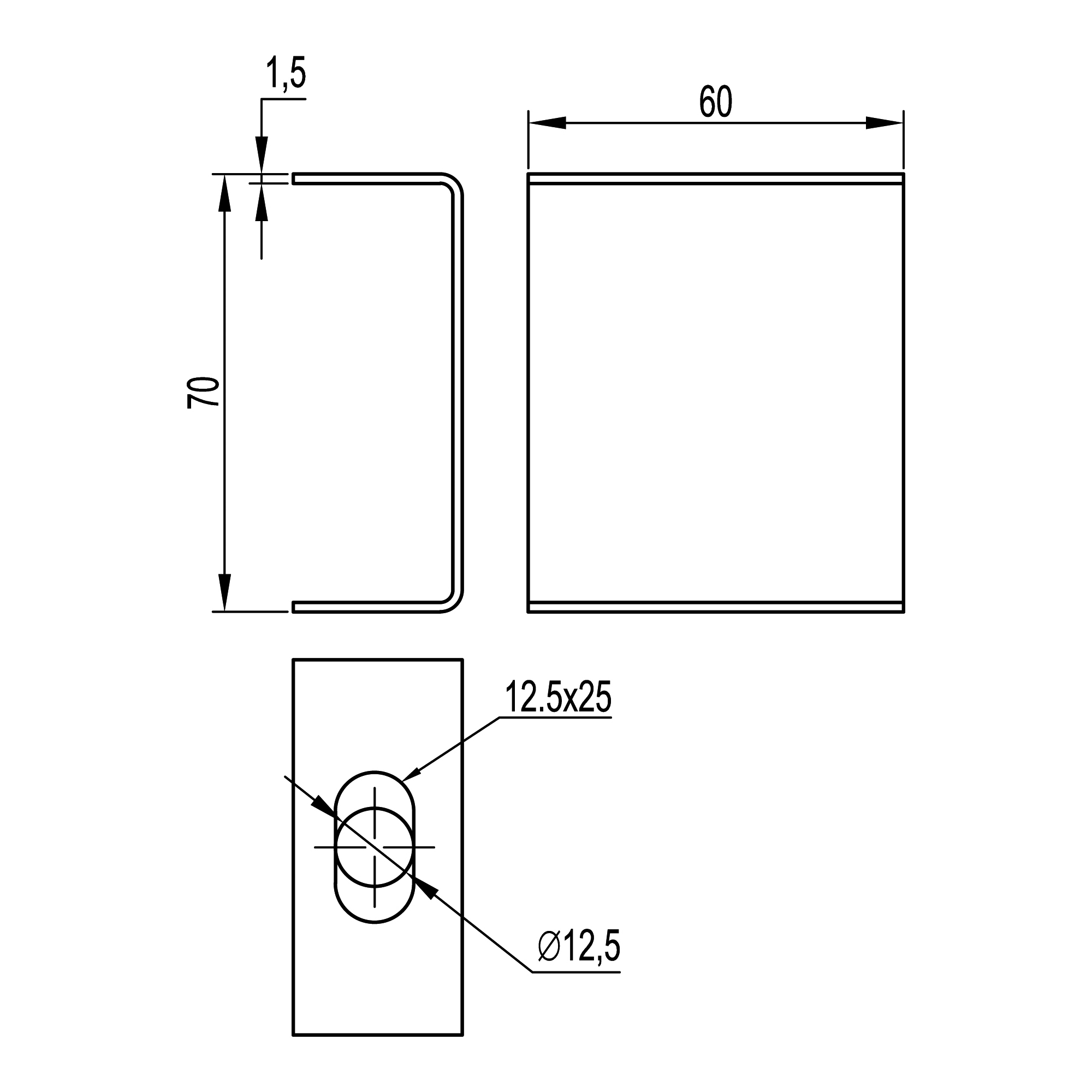

Drawings
