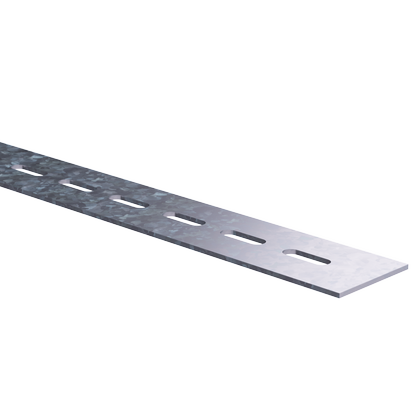

Perforated band, 50x2000, thickness 1,5 mm, ZL
Code: BMA1521ZL
Perforated band, 50x2000, thickness 1,5 mm, ZL
Code: BMA1521ZL
Colour | Other |
Width, mm | 50 |
Model | With perforation |
Surface protection | Continuously galvanized zinc-aluminium |
Perforation | Other |
Material quality | Other |
Material | Steel |
Perforation width, mm | 8.5 |
Perforation length, mm | 27 |
Direction of punch holes | Lengthwise |
Thickness | 1.5 |
Length | 2000 |
Material | Zinc lamellar coating |

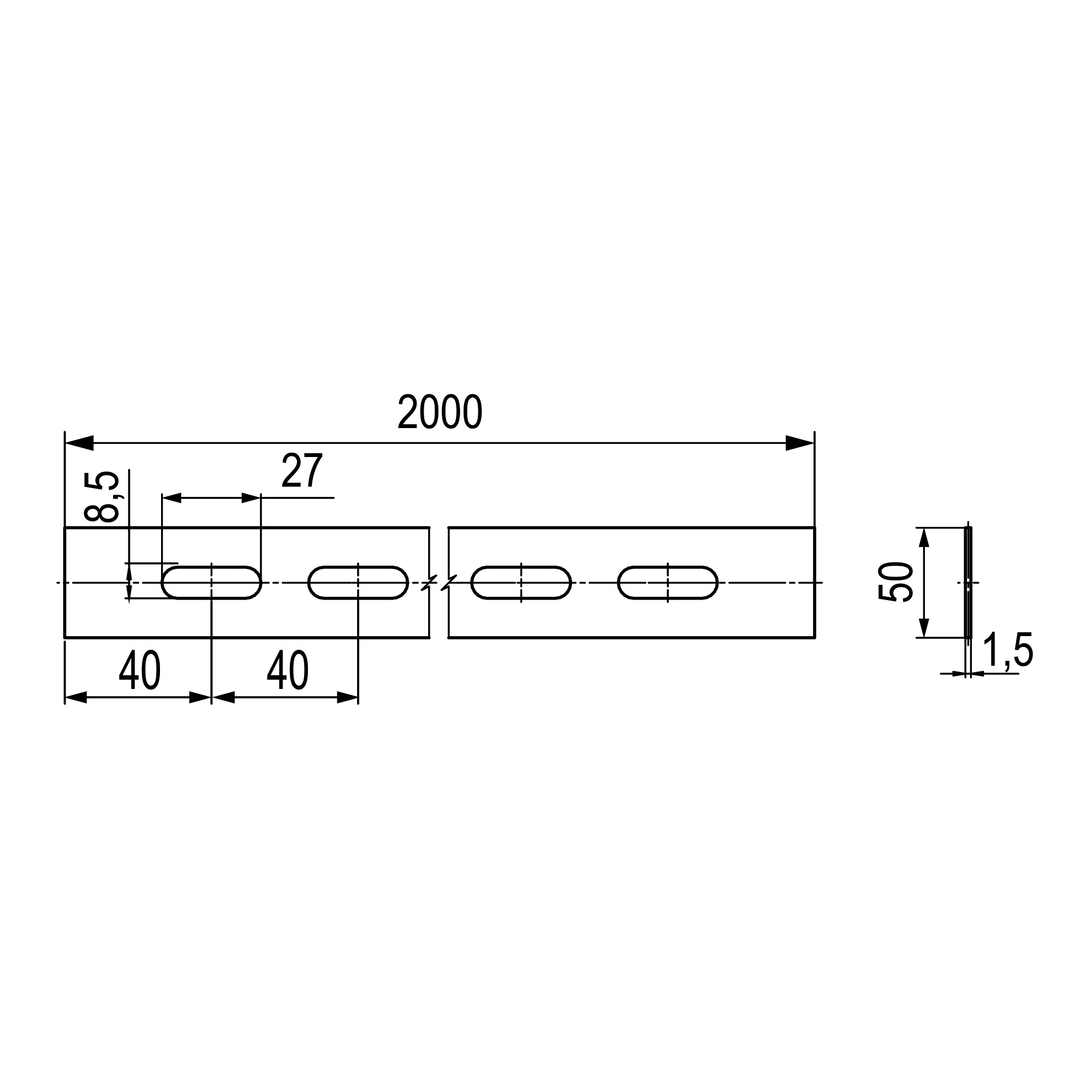

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
