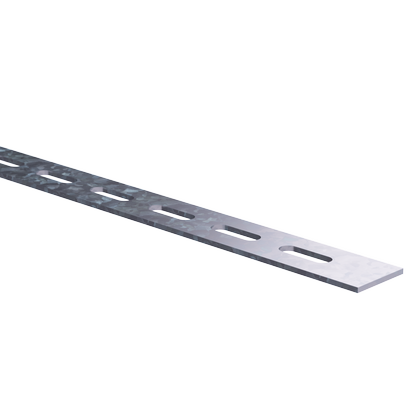

Perforated band, 30x1000, thickness 2,5 mm, ZL
Code: BMA1312ZL
Perforated band, 30x1000, thickness 2,5 mm, ZL
Code: BMA1312ZL
| Colour | Other |
| Width, mm | 30 |
| Model | With perforation |
| Surface protection | Continuously galvanized zinc-aluminium |
| Perforation | Other |
| Material quality | Other |
| Material | Steel |
| Perforation width, mm | 8.5 |
| Perforation length, mm | 27 |
| Direction of punch holes | Lengthwise |
| Thickness | 2.5 |
| Length | 1000 |
| Material | Zinc-lamellated steel |

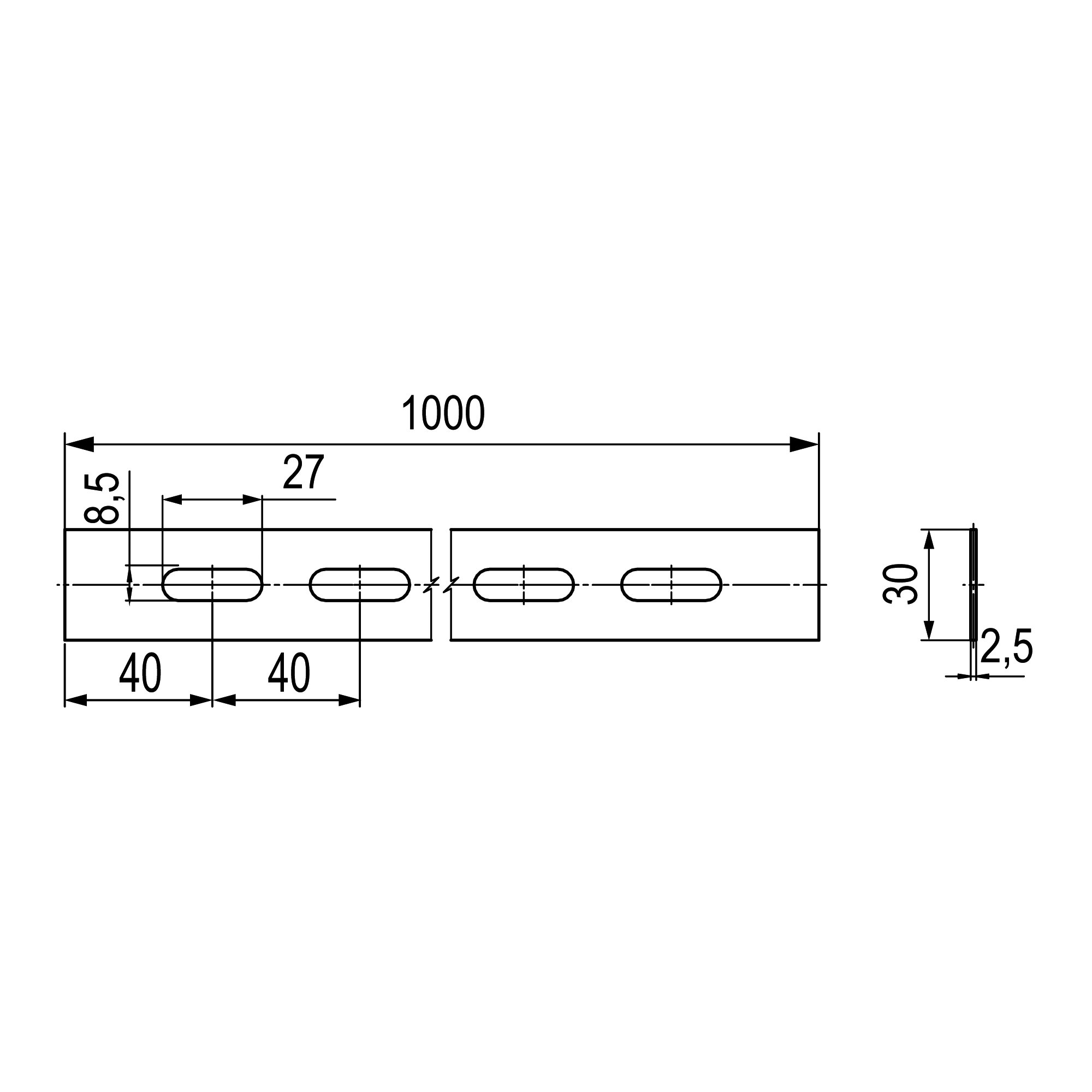

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
