Ladder tray 80х200 plus, L 3000 ZL

Code: LI8020ZL
Ladder tray 80х200 plus, L 3000 ZL
Ladder tray 80х200 plus, L 3000 ZL

Ladder tray 80х200 plus, L 3000 ZL

Code: LI8020ZL
Colour Light grey
Width, mm 200
Height, mm 80
Surface protection Zinc lamellar coating
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 12400
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Product type Metal ladder trays
Type Metal ladder trays - "L5 Combitech"
Height 80 mm
Side rail thickness 1.5 mm
Length 3000 mm
Material Zinc-lamellated steel
Width 200 mm
Accessories
Analogs

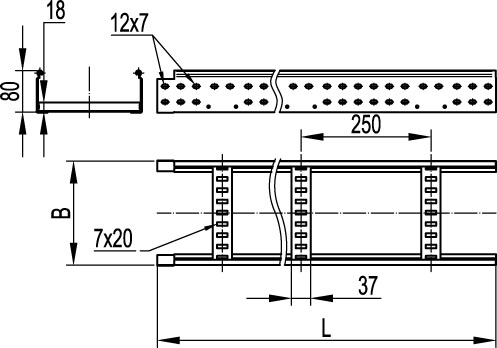

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
726.23 Kb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
5.28 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
16.42 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
17.38 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
27.26 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
11.67 Mb
Certificates
Name Document
L5 Combitech - Exemption letter for sanitary-epidemiological conclusion for metal ladder trays
PDF
1.29 MB
Certificate of conformity to GOST R for metal ladder trays
PDF
382.21 kB
L5 Combitech - EC Certificate of Conformity for metal ladder trays
PDF
214.44 kB
Exemption Letter for metal trays and its accessories
PDF
3.87 MB
Russian Maritime Register of Shipping for metal ladder trays L5 Combitech_1
PDF
662.20 kB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity to seismic impact resistance for system of cable trays "L5 Combitech" and fastening system "M5 Combitech"
PDF
889.10 kB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"
PDF
4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014
PDF
4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1
PDF
8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2
PDF
12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018
PDF
18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017
PDF
11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015
PDF
11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017
PDF
11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015
PDF
5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"
PDF
13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"
PDF
5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions
PDF
2.97 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"
PDF
3.06 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC
PDF
1.55 MB
Show all
