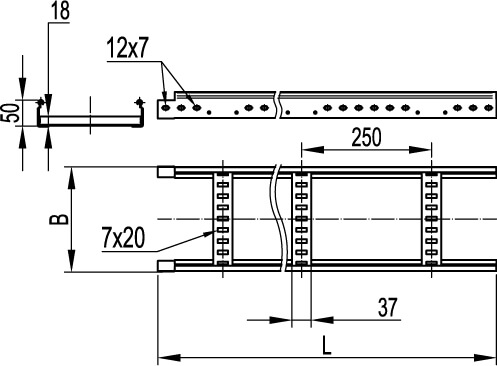

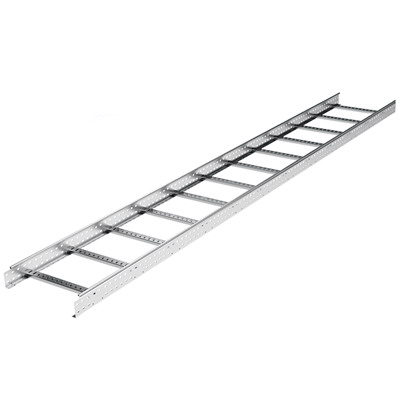

Ladder tray 50х500 plus, L 3000 zinc lamellar coating

Code: LI5050ZL
Code: LI5050ZL
  • To ask a question
Colour Light grey
Width, mm 500
Height, mm 50
Surface protection Zinc lamellar coating
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 16000
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 250
Fixation rung Fully revited
Material thickness, mm 1.5
Product type Metal ladder trays
Type Metal ladder trays - "L5 Combitech"
Height 50 mm
Side rail thickness 1.5 mm
Length 3000 mm
Material Zinc-lamellated steel
Width 500 mm
