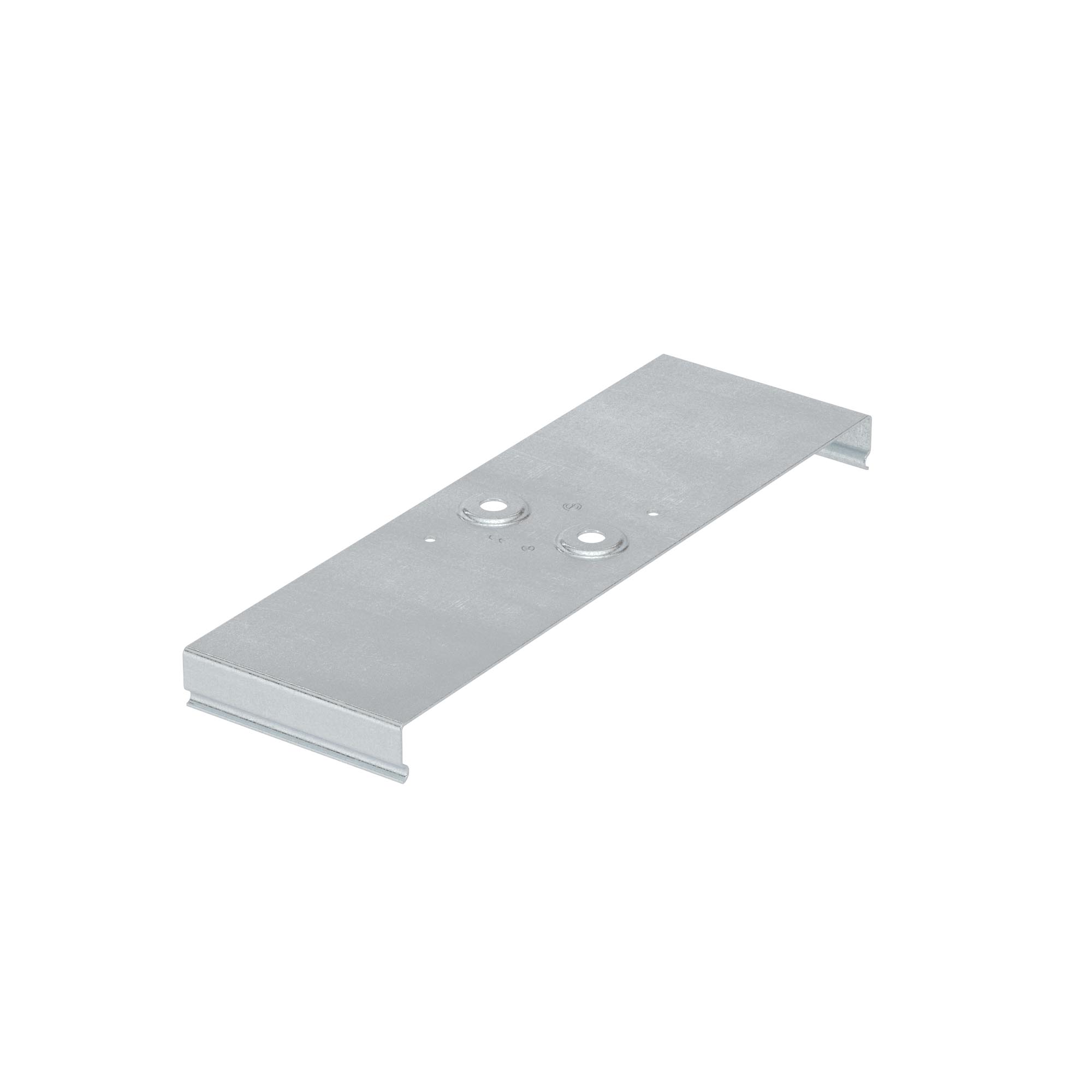

Joint for Cover b. 300 HDZL
Code: 37395HDZL
Joint for Cover b. 300 HDZL
Code: 37395HDZL
| Surface protection | Zinc lamellar coating |
| Length, mm | 300 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for cable management system height, mm | 100 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 300...300 |
| Type of connection | Screw connector |
| Colour | Light grey |
| Material quality | Steel |
| Model | Joint clip bar |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Thickness | 1.0 mm |
| Material | Zinc-lamellated steel |
| Width | 300 mm |

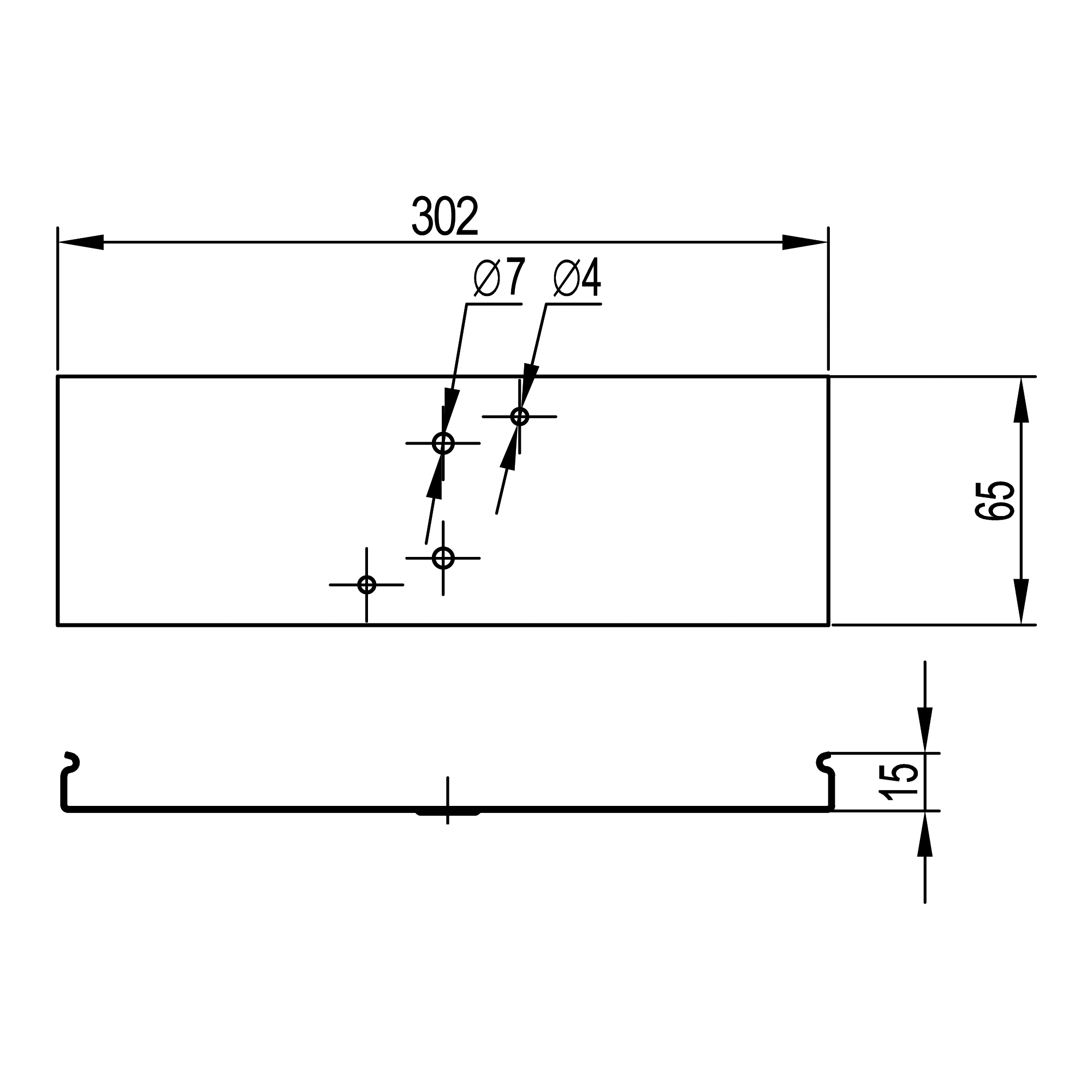

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
