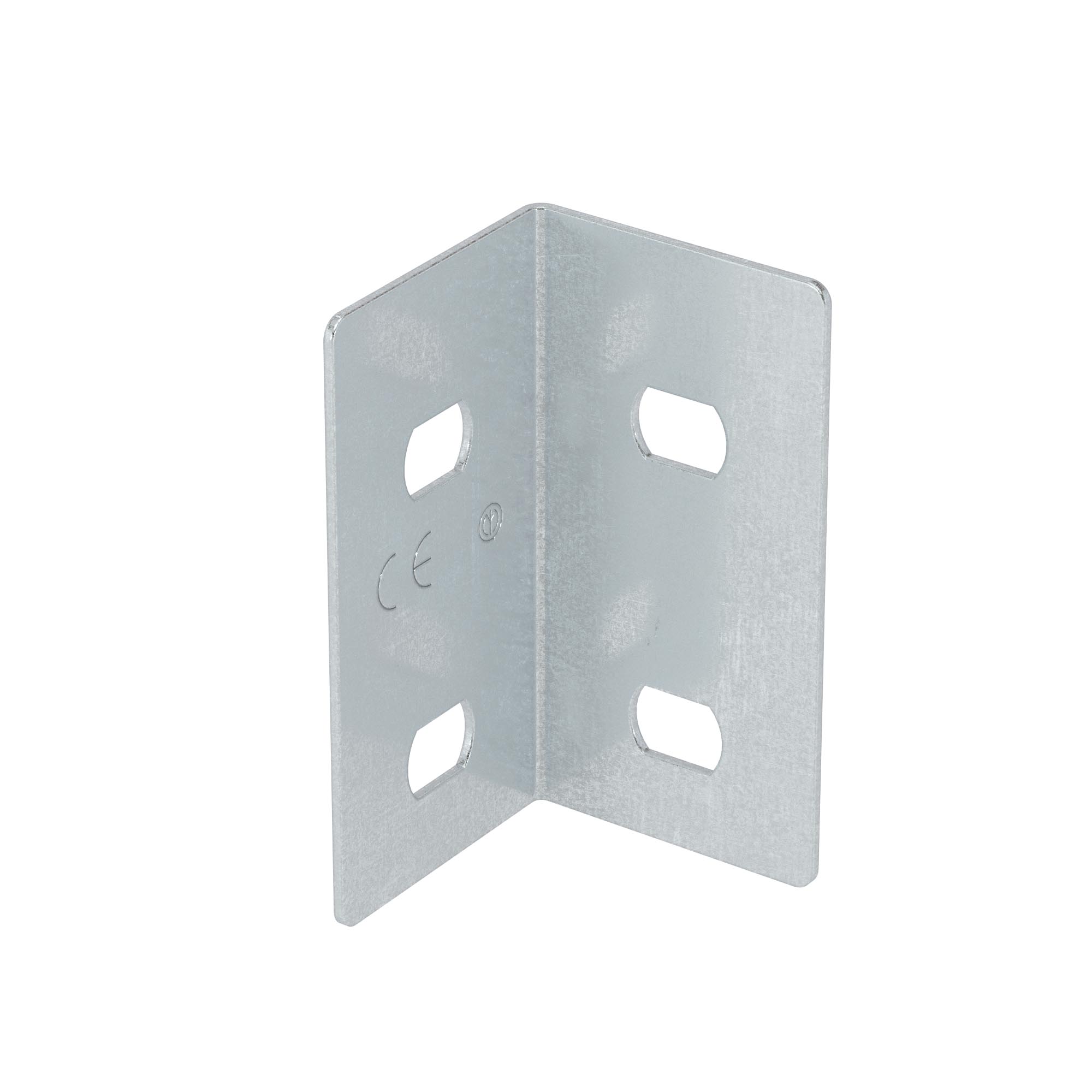

Mounting angle plate h 100 HDZL

Code: 30190HDZL
Mounting angle plate h 100 HDZL
Mounting angle plate h 100 HDZL

Mounting angle plate h 100 HDZL

Code: 30190HDZL
Material Steel
Cable tray width, mm 30
Cable tray height, mm 100
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Colour Light grey
Surface protection Continuously galvanized zinc-aluminium
Material quality Steel
Product type Mounting accessories
Type of accessories Mounting accessories
Height 100 mm
Thickness 1.0 mm
Material Zinc-lamellated steel
