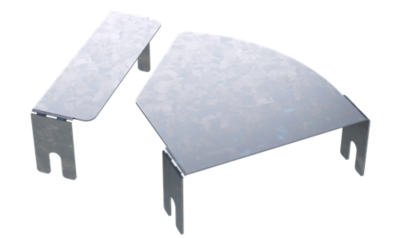

Cover for CPO Variable Angel Elbow 0-45° b.200 HDZL
Code: 38012HDZL
Cover for CPO Variable Angel Elbow 0-45° b.200 HDZL
Code: 38012HDZL
| Colour | Light grey |
| Width, mm | 200 |
| Surface protection | Zinc lamellar coating |
| Deflection (angle) | Adjustable |
| Hinging | Yes |
| Length, mm | 142 |
| Material | Steel |
| Type of fastening | Screw-on |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Change of direction | Horizontal |
| Material quality | Steel |
| Product type | Covers for system accessories |
| Type of accessories | Cover for horizontal adjustable angle CPO 0-45 degrees |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 200 mm |

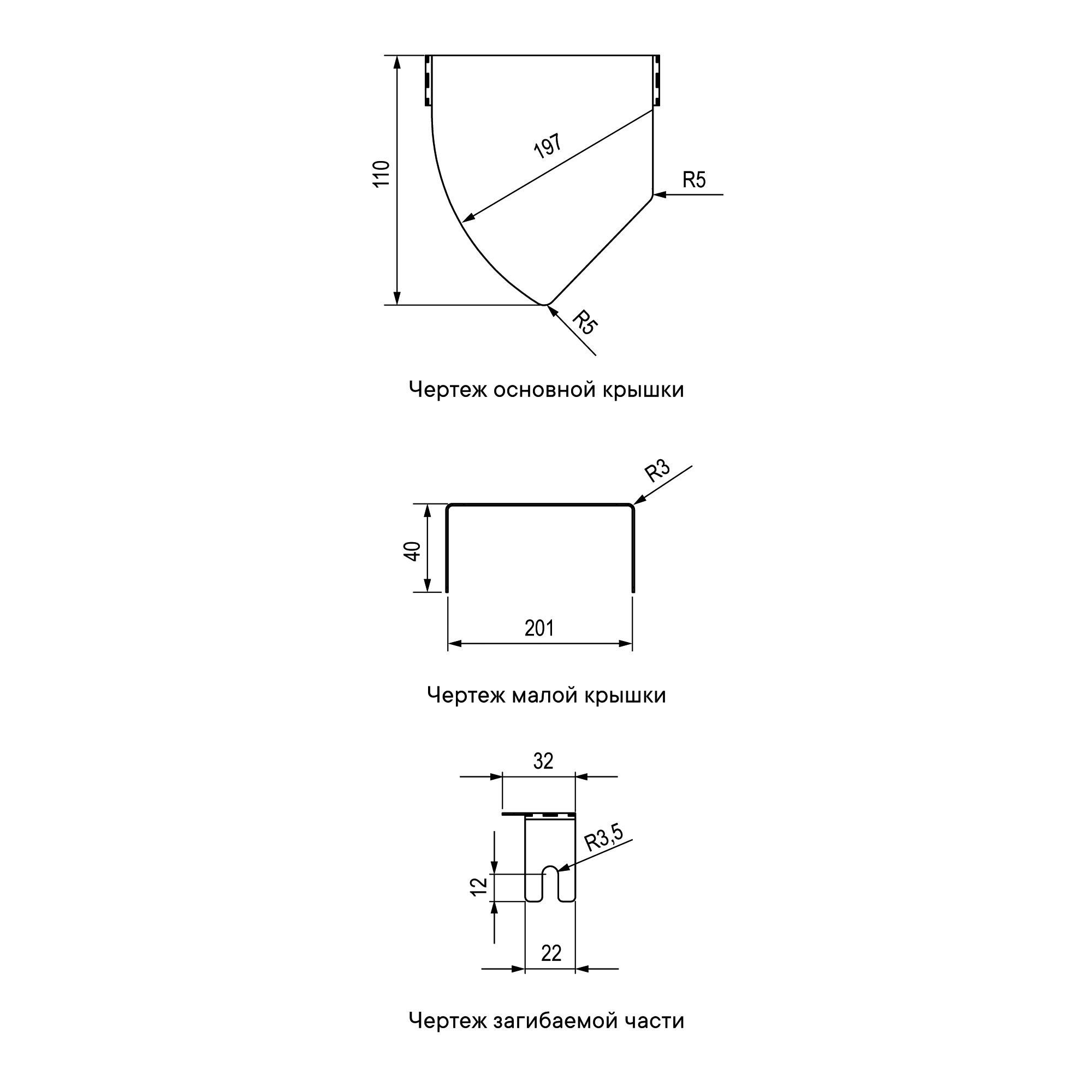

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
