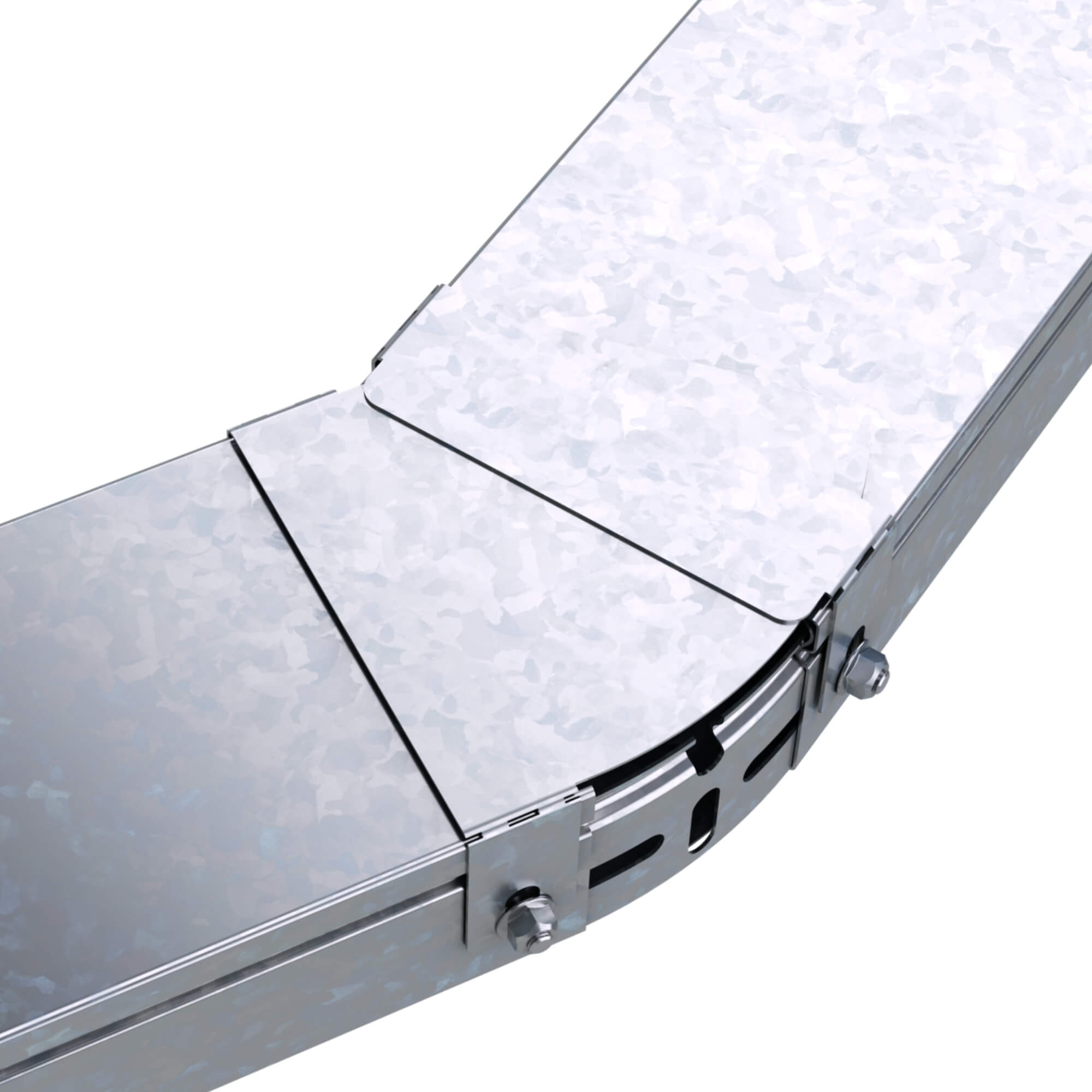

Cover for CPO Variable Angel Elbow 0-45° b.100 HDZL
Code: 38010HDZL
Cover for CPO Variable Angel Elbow 0-45° b.100 HDZL
Code: 38010HDZL
Colour | Light grey |
Width, mm | 100 |
Surface protection | Zinc lamellar coating |
Deflection (angle) | Adjustable |
Hinging | Yes |
Length, mm | 142 |
Material | Steel |
Type of fastening | Screw-on |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Change of direction | Horizontal |
Material quality | Steel |
Product type | Covers for system accessories |
Type of accessories | Cover for horizontal adjustable angle CPO 0-45 degrees |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 100 mm |

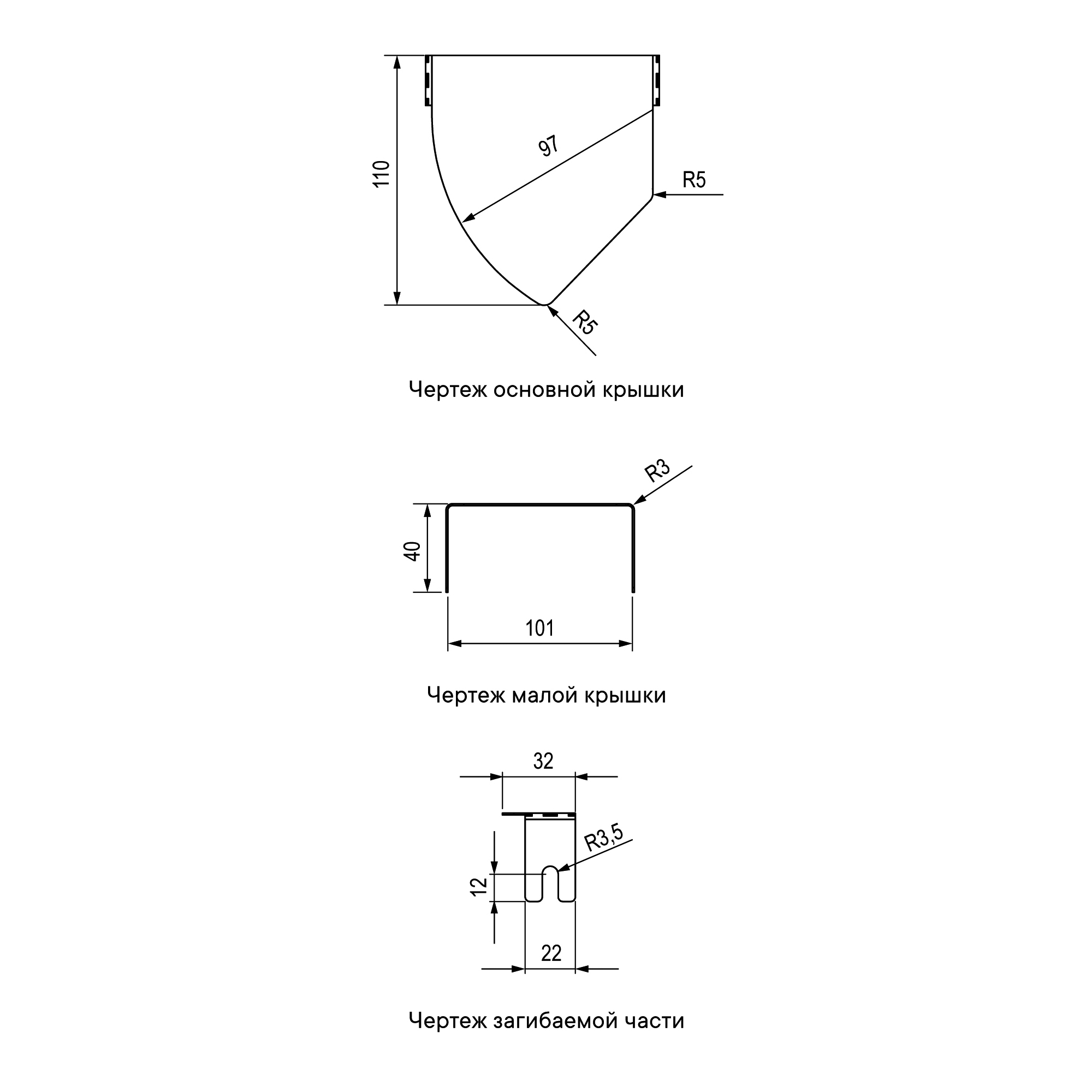

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
