Variable Angel Elbow 0-45° 500x80 HDZL

Code: 360508HDZL

Variable Angel Elbow 0-45° 500x80 HDZL

Code: 360508HDZL
Colour Light grey
Model Without connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) Adjustable
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 500
Cable tray height, mm 80
Change of direction Horizontal
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories Horizontal variable angle angle CPO 0-45
Width 500 mm
Height 80 mm
Material Hot-dip galvanized

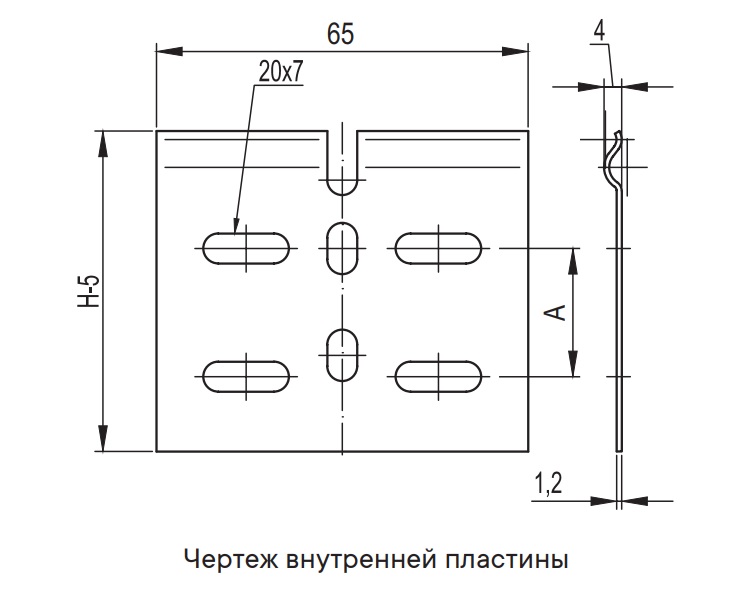

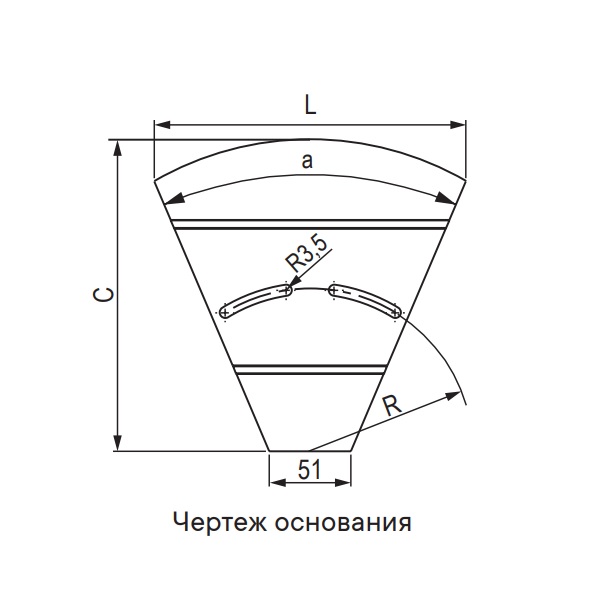

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
