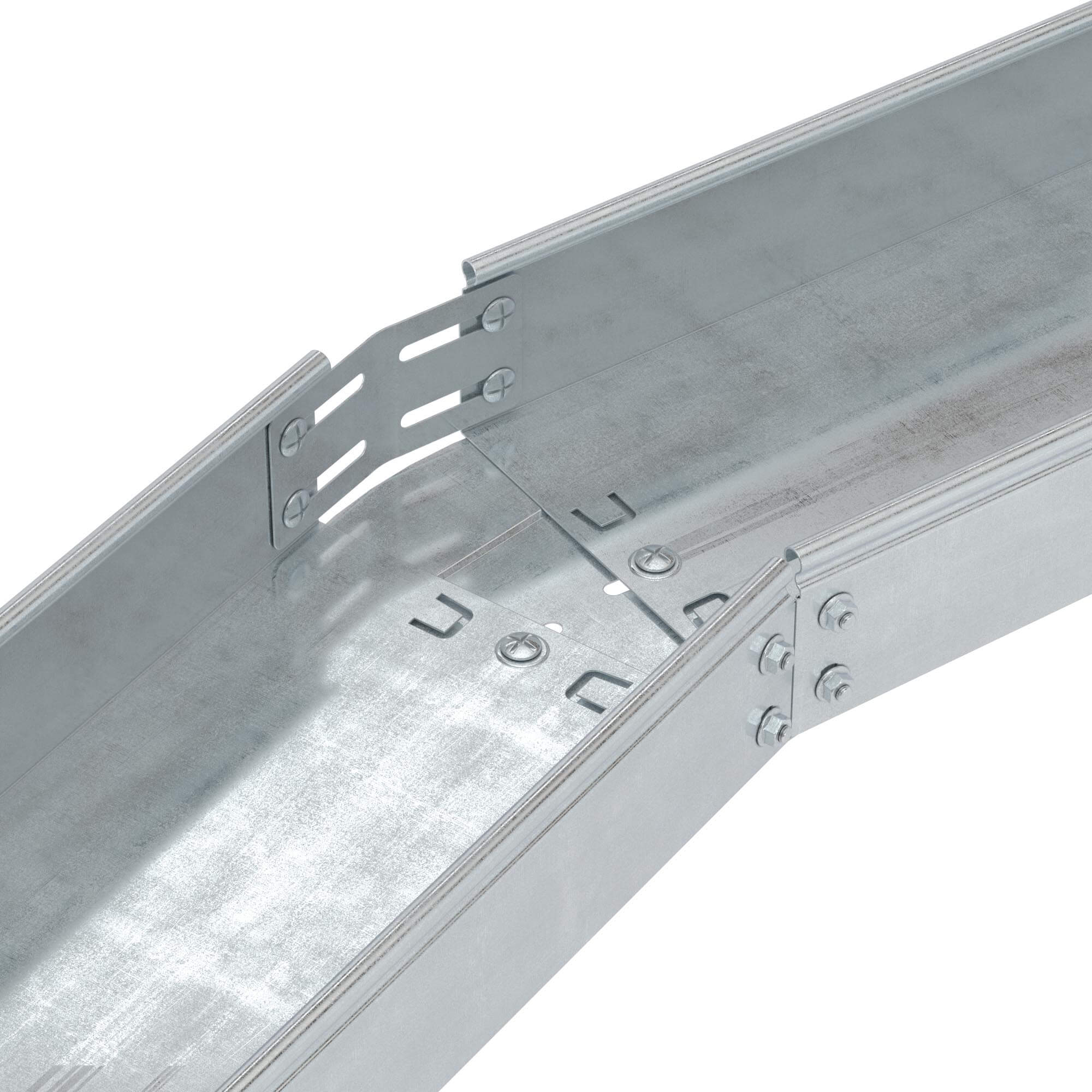

Variable Angel Elbow 0-45° 400x50 HDZL
Code: 360405HDZL
Variable Angel Elbow 0-45° 400x50 HDZL
Code: 360405HDZL
| Colour | Light grey |
| Model | Without connector |
| Surface protection | Zinc lamellar coating |
| Material thickness, mm | 0.8 |
| Deflection (angle) | Adjustable |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 57 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 50 |
| Change of direction | Horizontal |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | Horizontal variable angle angle CPO 0-45 |
| Height | 50 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 400 mm |

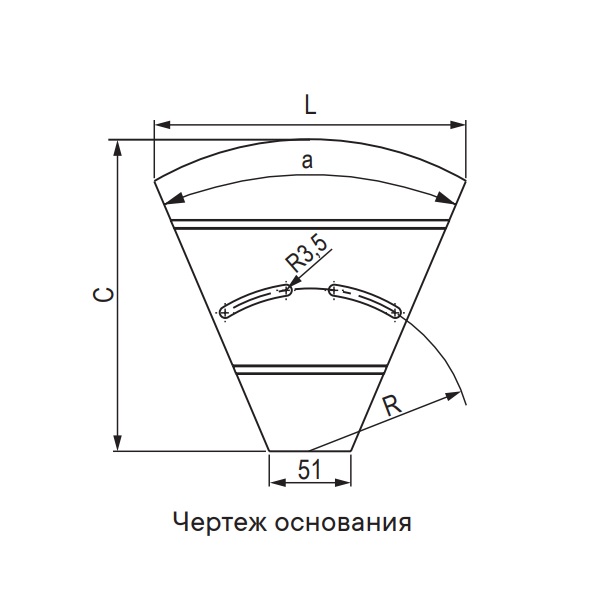

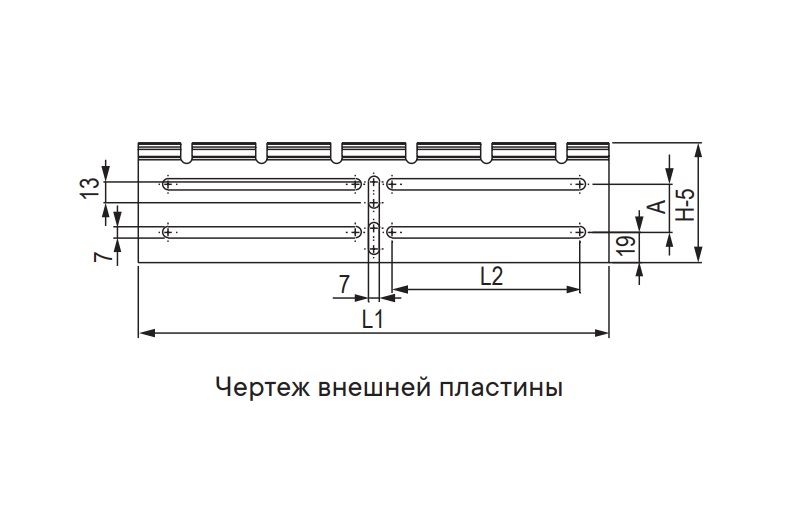

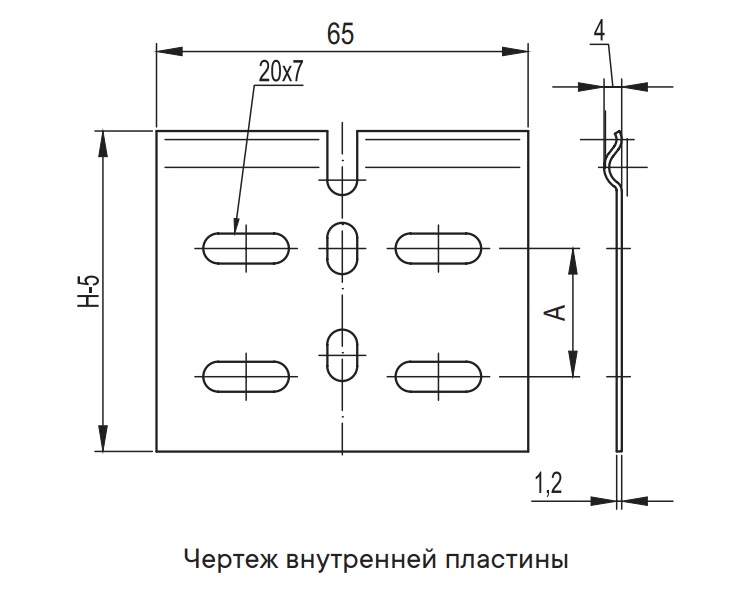

Drawings
