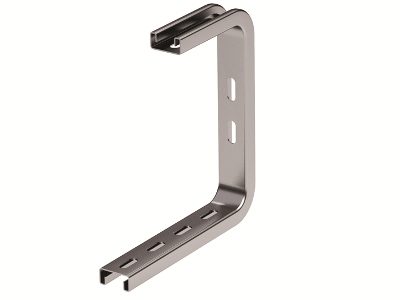

Light overhead bracket DS, L100, thickness 2,5 mm, zinc lamellar coating

Code: BBA3010ZL
Light overhead bracket DS, L100, thickness 2,5 mm, zinc lamellar coating
Light overhead bracket DS, L100, thickness 2,5 mm, zinc lamellar coating
Code: BBA3010ZL
  • To ask a question
  • Characteristics

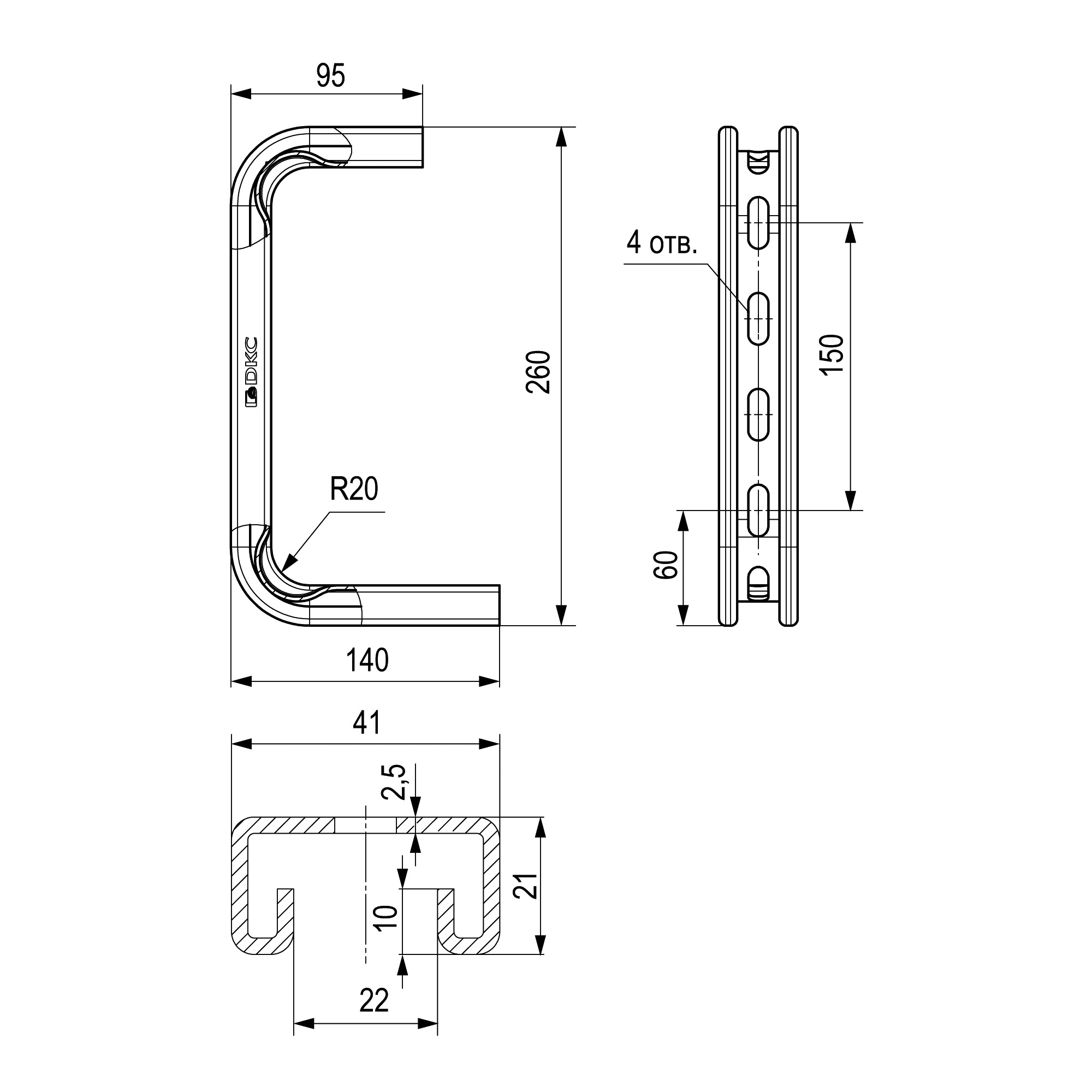

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Face out bracket (C-bracket)
Material Steel
Load bearing capacity, N 2205
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Tray mounting Screwable
Suitable for circuit integrity No
Surface protection Continuously galvanized zinc-aluminium
Material quality Steel galvanised
Suitable for cable management system height, mm 100
Suitable for cable management system width, mm 100...100
Width, mm 41
Length, mm 140
Thickness of metal sheet, mm 2,5
Type Brackets
Material Zinc-lamellated steel
