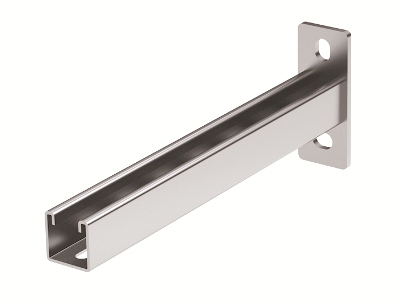

Bracket LAS, 41х21, L200, thickness 2,5 mm, ZL
Code: BBP4120ZL
Bracket LAS, 41х21, L200, thickness 2,5 mm, ZL
Code: BBP4120ZL
Colour | Light grey |
Width, mm | 50 |
Model | Wall bracket |
Height, mm | 125 |
Surface protection | Zinc lamellar coating |
Length, mm | 250 |
Material | Steel |
Load bearing capacity, kN | 3.9 |
Suitable for circuit integrity | Yes |
Width, mm | 50 |
Length, mm | 256 |
Thickness of metal sheet, mm | 2,5 |
Type | Brackets |
Material | Zinc-lamellated steel |
Accessories

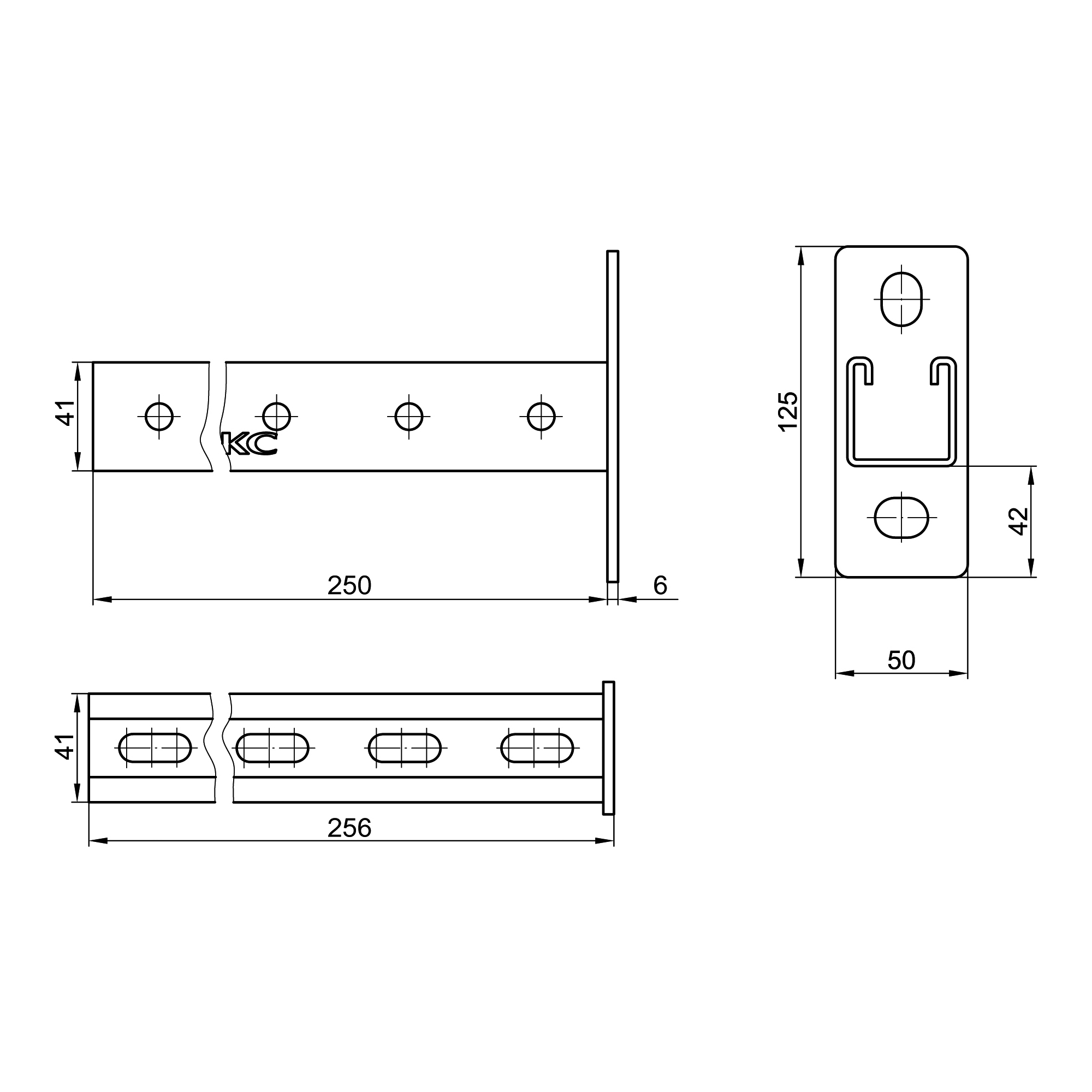

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
