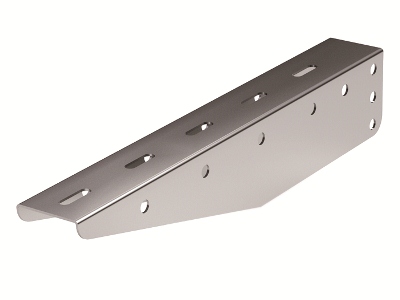

Bracket BM, L600, thickness 1,5 mm, ZL
Code: BBM5060ZL
Bracket BM, L600, thickness 1,5 mm, ZL
Code: BBM5060ZL
Colour | Light grey |
Width, mm | 44 |
Model | Profile console |
Height, mm | 80 |
Surface protection | Zinc lamellar coating |
Length, mm | 630 |
Material | Steel |
Load bearing capacity, kN | 1.4 |
Suitable for circuit integrity | Yes |
Width, mm | 44 |
Length, mm | 640 |
Thickness of metal sheet, mm | 1,5 |
Type | Brackets |
Material | Zinc-lamellated steel |
Accessories

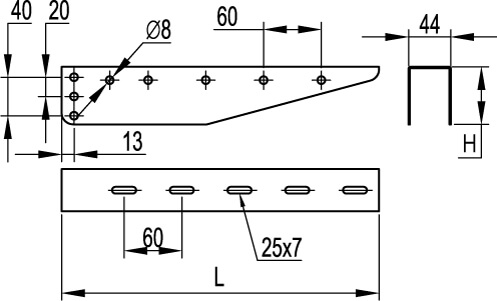

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
