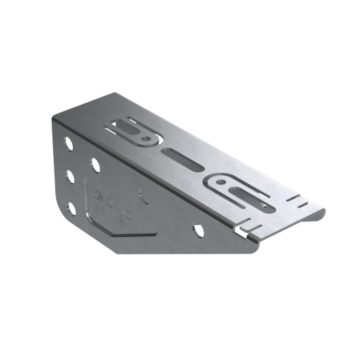

Bracket BM, L100, thickness 1,5 mm, ZL
Code: BBM5010ZL
Bracket BM, L100, thickness 1,5 mm, ZL
Code: BBM5010ZL
Colour | Light grey |
Width, mm | 44 |
Model | Profile console |
Height, mm | 125 |
Surface protection | Zinc lamellar coating |
Length, mm | 133 |
Material | Steel |
Load bearing capacity, kN | 3.4 |
Suitable for circuit integrity | Yes |
Height, mm | 41 |
Width, mm | 44 |
Length, mm | 157 |
Thickness of metal sheet, mm | 1.5 |
Type | Brackets |
Material | Zinc-lamellated steel |
Accessories

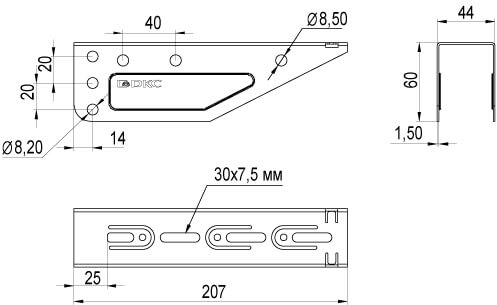

Drawings
