Heavy reinforced bracket, L400, thickness 3,0 mm, ZL
Code: BBH7040ZL
Heavy reinforced bracket, L400, thickness 3,0 mm, ZL
Code: BBH7040ZL
Colour | Light grey |
Width, mm | 40 |
Model | Profile console |
Height, mm | 150 |
Surface protection | Zinc lamellar coating |
Length, mm | 435 |
Material | Steel |
Load bearing capacity, kN | 4.1 |
Suitable for circuit integrity | Yes |
Width, mm | 40 |
Length, mm | 435 |
Thickness of metal sheet, mm | 3 |
Type | Brackets |
Material | Zinc-lamellated steel |
Accessories

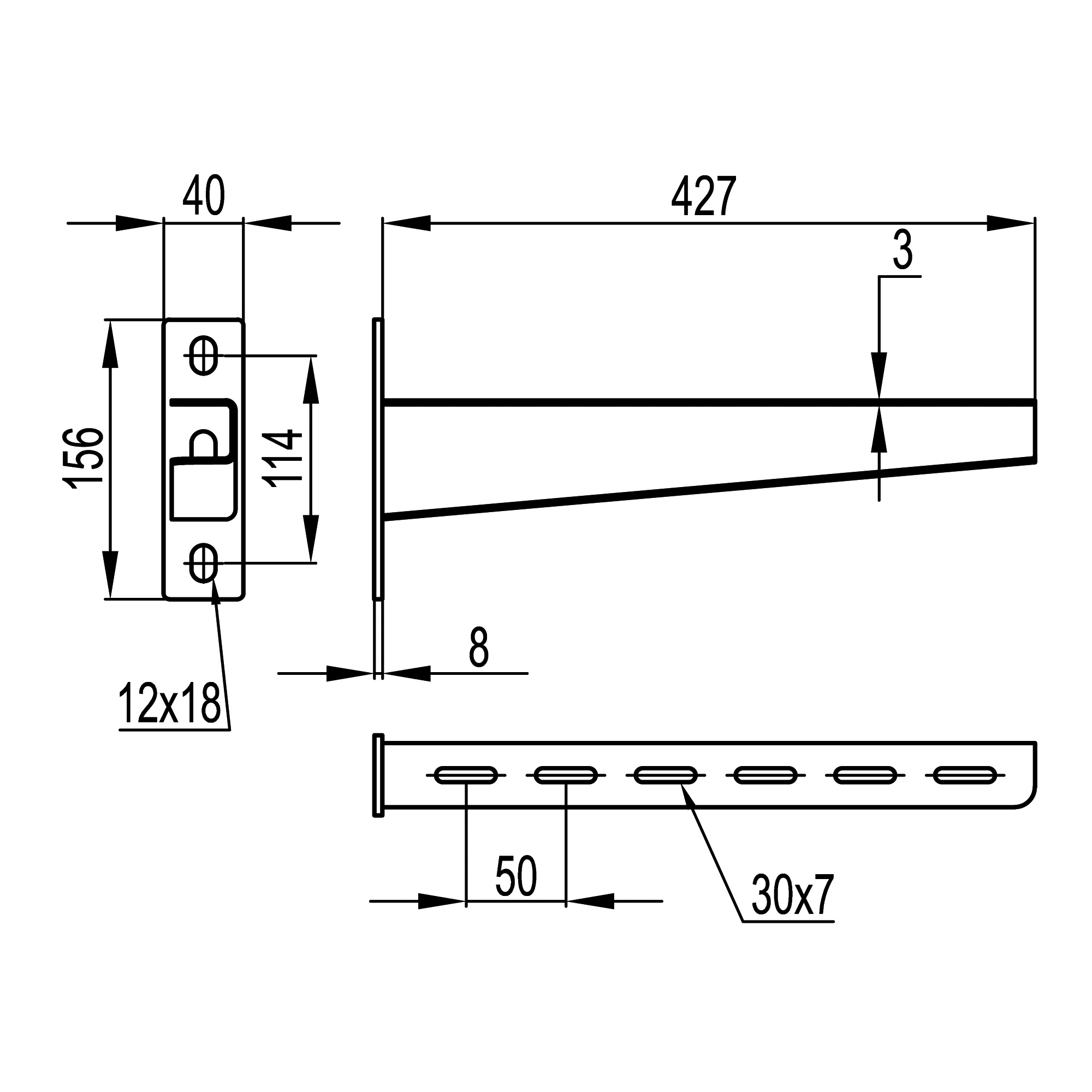

Drawings
Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
---|---|---|---|---|---|---|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
Mounting accessories - "B5 Combitech"
|
Certificates
Name | Document |
---|---|
